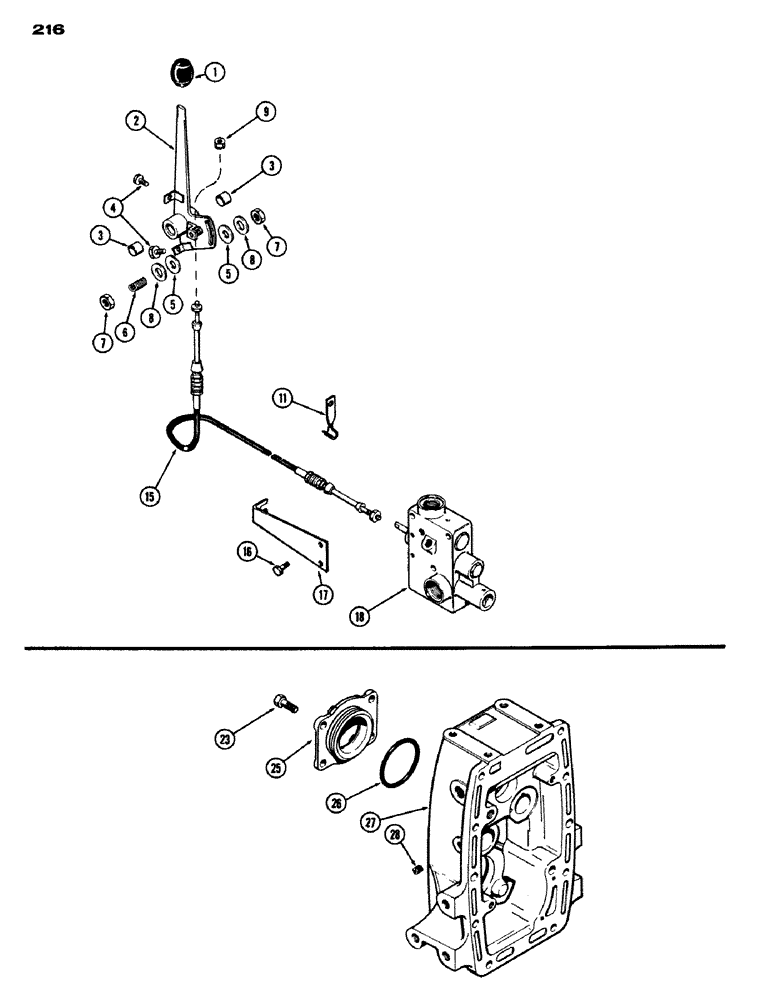

Запчасти Case IH 970 (216) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A62078

KNOB

- P.T.O. hand lever (Replaces A23885)

1шт.

2

A61072

LEVER

ASSY. - P.T.O. hand, with bushing (Replaces A59460), Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- P.T.O. hand lever

2шт.

4

A59463

BOLT

- P.T.O. hand lever stop (1/4 x 5/8" Nylon)

2шт.

5

A61069

DISC

- friction (25/64 x 1-1/4 x 1/8") (Replaces)

2шт.

6

A26546

SPRING

- friction disc, P.T.O. hand lever

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex., friction disc (3/8" N.C. top face lock)

2шт.

8

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. w/ext. tooth washer

1шт.

11

A59467

CLIP - cable sensing and P.T.O.

1шт.

15

A59466

CABLE

- P.T.O. control

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

A60267

BRACKET

- P.T.O. control cble

1шт.

18

A60270

VALVE

ASSY. - "Case" flow divider and P.T.O. control (See Figure 241 For Repairs)

1шт.

23

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

PTO housing, used w/o PTO Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

25

A58193

COVER - P.T.O. output shaft opening, housing, used W/Out P.T.O.

1шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - 4 x 4-1/4 x 1/8", P.T.O. housing, used W/Out P.T.O.

1шт.

27

REF

INSTRUCTION

HOUSING - P.T.O. and hyd. pump (See Figure 219), used W/Out P.T.O.

1шт.

28

221-841

PLUG

- pipe, P.T.O. hsg, R.H. side (1/4" hex. sckt. hd.), used W/Out P.T.O.

1шт.
