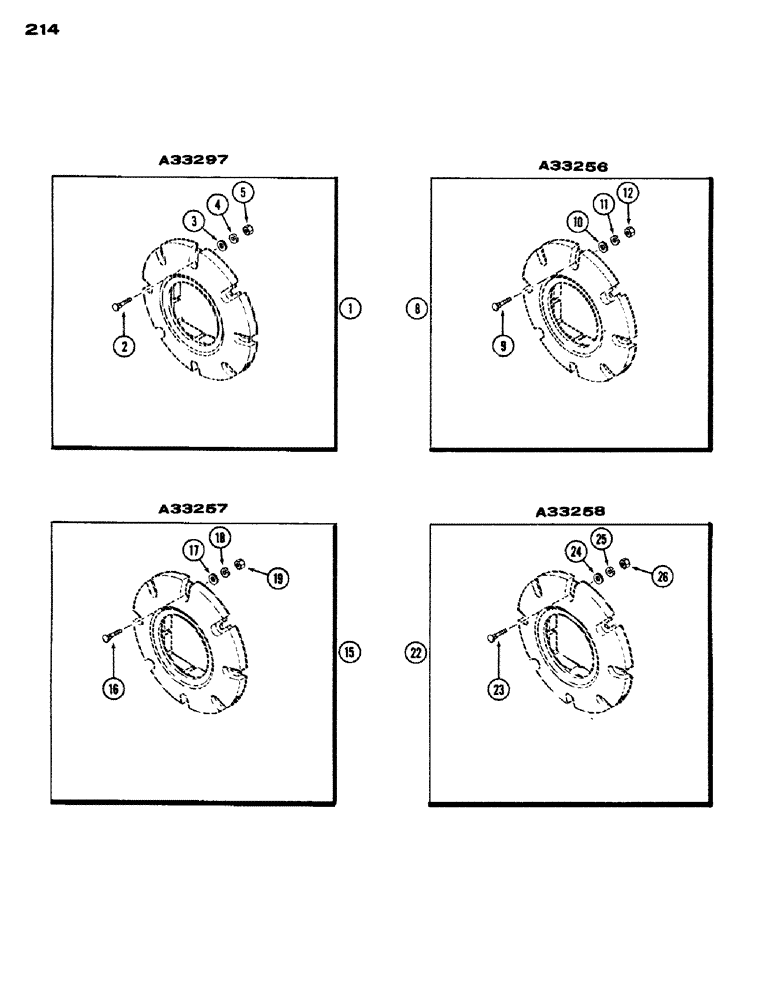

Запчасти Case IH 970 (214) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A33297M

WEIGHT SET - (For 30" wheels) (Set of 2) (Mach. Item) (use as 1st and additional weights) (140 lbs. ea.), Includes: Ref. 2 - 8

1шт.

2

11-1056

BOLT - 5/8 x 3-1/2" N.C. carr. (UAR) Short NK, 5/8"-11 x 3 1/2", G2

8шт.

2

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - 5/8 x 4-1/2" N.C. carr. (UAR)

8шт.

2

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - 5/8 x 6" N.C. carr. (UAR)

8шт.

3

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

25-1010

NUT,5/8"-11, G5

8шт.

8

A33256M

WEIGHT SET - (For 34" wheels) (Set of 2) (Mach. Item) (140 lbs. ea.), Includes: Ref. 9 - 12

1шт.

9

11-1056

BOLT - 5/8 x 3-1/2" N.C. carr. (UAR) Short NK, 5/8"-11 x 3 1/2", G2

8шт.

9

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - 5/8 x 4-1/2" N.C. carr. (UAR)

8шт.

9

11-1088

BOLT (MACHINE)

BOLT - 5/8 x 5-1/2" N.C. carr. (UAR)

8шт.

10

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

8шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

12

25-1010

NUT,5/8"-11, G5

8шт.

15

A33257M

WEIGHT SET - (For 38" wheels) (Set of 2) (Mach. Items) (140 lbs. ea.), Includes: Ref. 16 - 19

1шт.

16

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. carr. (UAR)

8шт.

16

11-1080

BOLT - 5/8 x 5" N.C. carr. (UAR)

8шт.

16

11-1088

BOLT (MACHINE)

BOLT - 5/8 x 5-1/2" N.C. carr. (UAR)

8шт.

17

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

8шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

25-1010

NUT,5/8"-11, G5

8шт.

22

A33258M

WEIGHT SET - additional (Set of 2) (Mach. Items) (140 lbs. ea.) (For 34" and 38" wheels), Includes: Ref. 23 - 26

1шт.

23

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. carr.

8шт.

24

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

8шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

26

25-1010

NUT,5/8"-11, G5

8шт.
