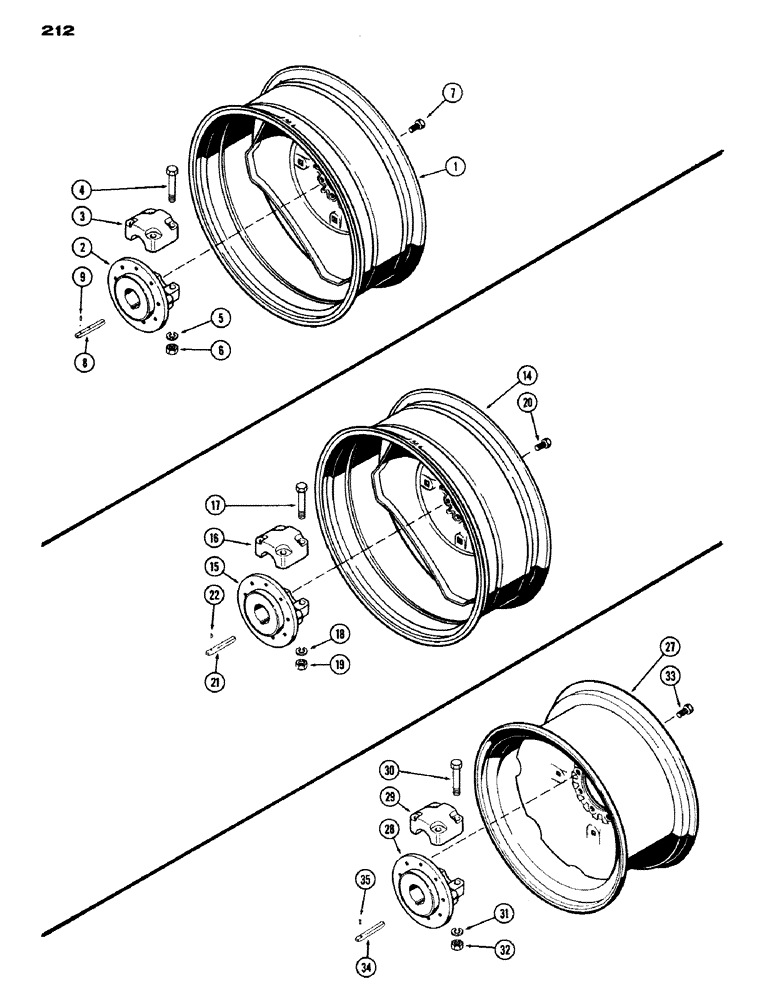

Запчасти Case IH 970 (212) - DUAL REAR WHEELS, STAMPED W/38" RIMS (06) - POWER TRAIN

1

A34839

WHEEL

RIM - dual wheel (takes 15.5 x 38 tire), used with 3-3/16" diameter axle

2шт.

2

A34843

HUB ASSY. - rear wheel, dual, used with 3-3/16" diameter axle, Includes: Ref. 3 - 6

2шт.

3

A34837

HUB CAP

CAP - hub, used with 3-3/16" diameter axle

1шт.

4

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, used with 3-3/16" diameter axle

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Used with 3-3/16" diameter axle 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, used with 3-3/16" diameter axle

4шт.

7

B18264

WHEEL BOLT

BOLT - rim to hub, used with 3-3/16" diameter axle

18шт.

8

A34890

BUCKET TOOTH KEY

KEY - hub to axle, used with 3-3/16" diameter axle

2шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Rear axle shaft key, used with 3-3/16" diameter axle 1/4" x 1/2", Slotted

2шт.

14

A34839

WHEEL

RIM - dual wheel (takes 15.5 x 38 tire), used with 3-1/2" diameter axle

2шт.

15

A60625

HUB

ASSY. - dual rear wheel, used with 3-1/2" diameter axle, Includes: Ref. 16 - 19

2шт.

16

A60627

CAP

- dual rear wheel hub, used with 3-1/2" diameter axle

1шт.

17

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, used with 3-1/2" diameter axle

4шт.

18

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Used with 3-1/2" diameter axle 7/8"

4шт.

19

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, used with 3-1/2" diameter axle

4шт.

20

B18264

WHEEL BOLT

BOLT - dual rear wheel to hub, used with 3-1/2" diameter axle

18шт.

21

A34890

BUCKET TOOTH KEY

KEY - hub to rear axle, used with 3-1/2" diameter

2шт.

22

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Used with 3-1/2" diameter axle 1/4" x 1/2", Slotted

2шт.

27

A60629

RIM - dual wheel (takes 18.4 x 38 tire), used with 3-1/2" diameter axle

2шт.

28

A60625

HUB

ASSY. - dual rear wheel, used with 3-1/2" diameter axle, Includes: Ref. 29 - 32

2шт.

29

A60627

CAP

- dual rear wheel hub, used with 3-1/2" diameter axle

1шт.

30

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, used with 3-1/2" diameter axle

4шт.

31

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Used with 3-1/2" diameter axle 7/8"

4шт.

32

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, used with 3-1/2" diameter axle

4шт.

33

L13538

WHEEL BOLT

- dual rear wheel to hub, used with 3-1/2" diameter axle

18шт.

34

A34890

BUCKET TOOTH KEY

KEY - hub to rear axle, used with 3-1/2" diameter

2шт.

35

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Used with 3-1/2" diameter axle 1/4" x 1/2", Slotted

2шт.
