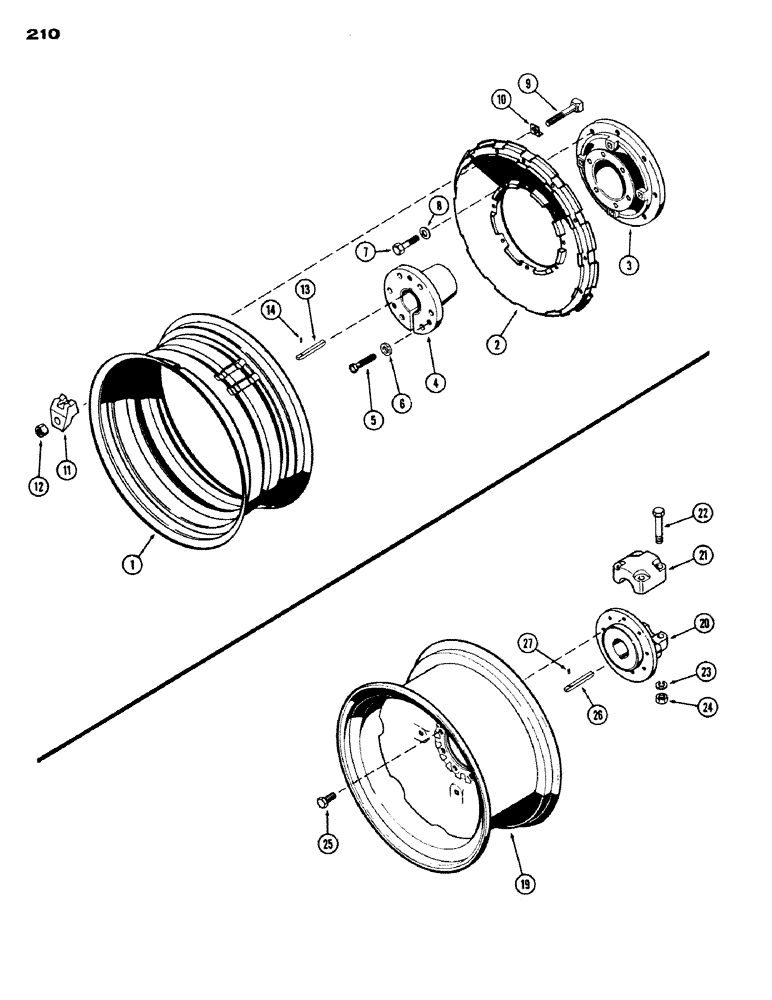

Запчасти Case IH 970 (210) - DUAL REAR WHEELS, CAST W/34" RIMS (06) - POWER TRAIN

1

A57045

RIM

- rear wheel (takes 18.4 x 34 tire), used with 3-1/2" diameter axle

2шт.

2

A33172

WHEEL

- rear, universal hub, used with 3-1/2" diameter axle

2шт.

3

A59791

HUB

- universal (3-1/2" tapered bushing), used with 3-1/2" diameter axle

2шт.

4

A59792

HUB

BUSHING - tapered, rear wheel hub, used with 3-1/2" diameter axle

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4" N.C. hex, used with 3-1/2" diameter axle

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-1/2" diameter axle

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used with 3-1/2" diameter axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-1/2" diameter axle 5/8"

16шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" N.C., square head, used with 3-1/2" diameter axle

24шт.

10

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt, used with 3-1/2" diameter axle

24шт.

11

A57654

CLAMP

- double ramp type, rim to wheel, used with 3-1/2" diameter axle

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex, used with 3-1/2" diameter axle

24шт.

13

A34890

BUCKET TOOTH KEY

KEY - hub to rear axle, used with 3-1/2" diameter axle

2шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Used with 3-1/2" diameter axle 1/4" x 1/2", Slotted

2шт.

19

A60628

RIM

- rear wheel (takes 18.4 x 34 tire), stamped w/ 34", used with 3-1/2" diameter axle

2шт.

20

A60625

HUB

ASSY. - dual rear wheel, stamped w/ 34" rims, used with 3-1/2" diameter axle

2шт.

21

A60627

CAP

- hub, stamped w/ 34" rims, used with 3-1/2" diameter axle

1шт.

22

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, stamped w/ 34" rims, used with 3-1/2" diameter axle

4шт.

23

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Stamped w/ 34" rims, used with 3-1/2" diameter axle 7/8"

4шт.

24

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, stamped w/ 34" rims, used with 3-1/2" diameter axle

4шт.

25

L13538

WHEEL BOLT

- rim to hub, stamped w/ 34", used with 3-1/2" diameter axle

18шт.

26

A34890

BUCKET TOOTH KEY

KEY - hub to axle, stamped w/ 34" rims, used with 3-1/2" diameter

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Rear axle shaft key, stamped w/ 34" rims, used with 3-1/2" diameter 1/4" x 1/2", Slotted

2шт.
