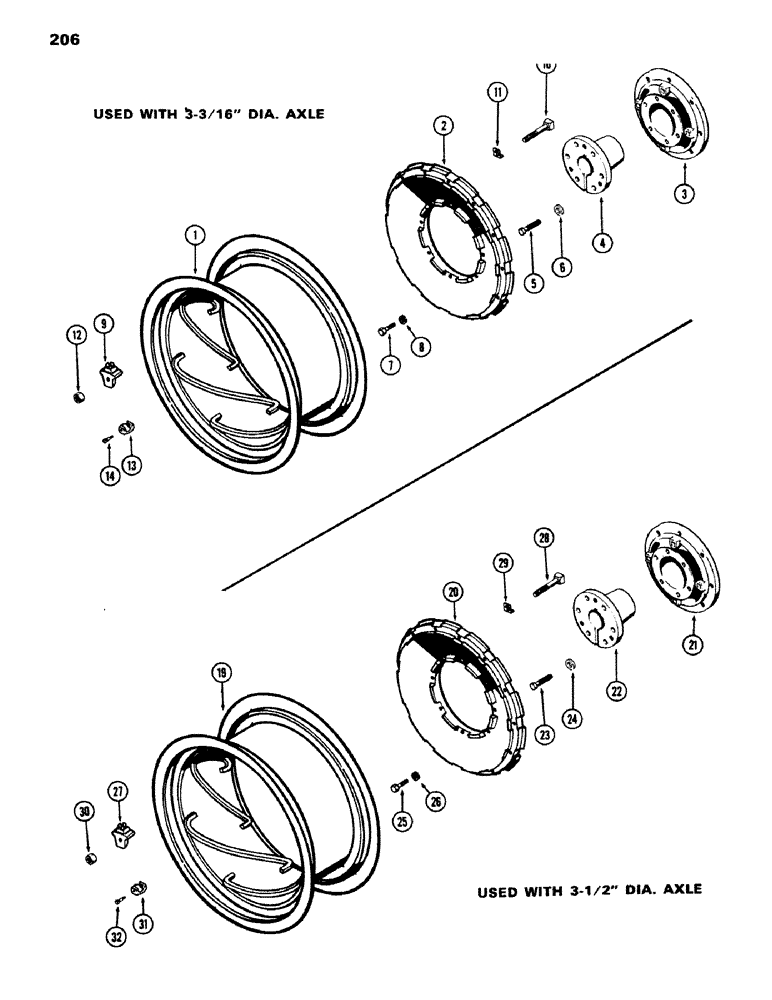

Запчасти Case IH 970 (206) - REAR WHEELS W/34" RIMS, POWER ADJUSTABLE (06) - POWER TRAIN

1

A33170

RIM

- rear wheel (take 16.9 x 34 tire), used with 3-3/16" diameter axle

2шт.

2

A33172

WHEEL

- rear, used with 3-3/16" diameter axle

2шт.

1

87635664

1шт.

For PUMA 165, PUMA 180, PUMA 195, PUMA 210 Models only

1шт.

3

A59789

HUB

- universal, used with 3-3/16" diameter axle

2шт.

4

A57993

BUSHING

- rear wheel, used with 3-3/16" diameter axle

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex., bushing to hub, used with 3-3/16" diameter axle

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-3/16" diameter axle

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used with 3-3/16" diameter axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-3/16" diameter axle 5/8"

16шт.

9

A33171

CLAMP

- double ramp type, rim to wheel, used with 3-3/16" diameter axle

12шт.

10

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- 3/4 x 3" N.C. sq. hd., used with 3-3/16" diameter axle

12шт.

11

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt, used with 3-3/16" diameter axle

12шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex, used with 3-3/16" diameter axle

12шт.

13

A9406

STOP

LUG - rim stop, used with 3-3/16" diameter axle

4шт.

14

A9440

STOP

SCREW - lock, stop lug, used with 3-3/16" diameter axle

4шт.

19

A33170

RIM

- rear wheel (takes 16.9 x 34 tire), used with 3-1/2" diameter axle

2шт.

20

A33172

WHEEL

- rear, used with 3-1/2" diameter axle

2шт.

21

A59791

HUB

- universal, used with 3-1/2" diameter axle

2шт.

22

A59792

HUB

BUSHING - rear wheel, used with 3-1/2" diameter axle

1шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. hd., bushing to hub, used with 3-1/2" diameter axle

6шт.

24

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-1/2" diameter axle

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used with 3-1/2" diameter axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-1/2" diameter axle 5/8"

16шт.

27

A33171

CLAMP

- double ramp type, rim to wheel, used with 3-1/2" diameter axle

12шт.

28

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- 3/4 x 3" N.C. sq. hd., used with 3-1/2" diameter axle

12шт.

29

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt, used with 3-1/2" diameter axle

12шт.

31

A9406

STOP

LUG - rim stop, used with 3-1/2" diameter axle

4шт.

32

A9440

STOP

SCREW - lock, stop lug, used with 3-1/2" diameter axle

4шт.
