Запчасти Case IH 970 (202) - REAR WHEELS W/34" RIMS, MANUAL ADJUSTABLE (06) - POWER TRAIN

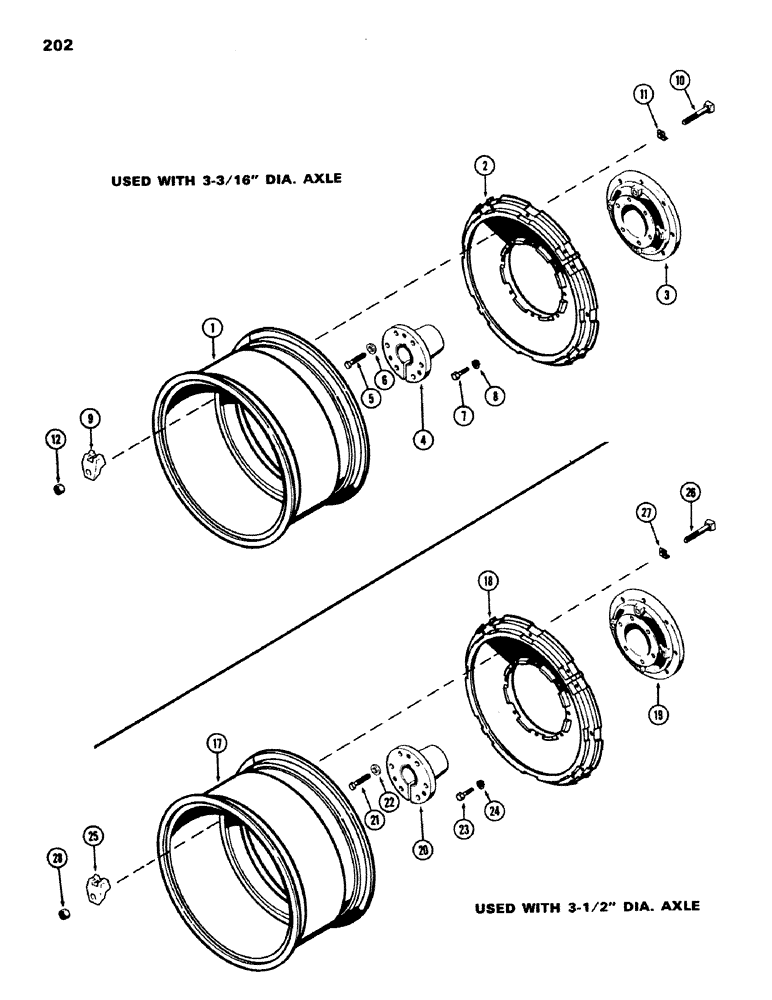

Схема запчастей Case IH 970 - (202) - REAR WHEELS W/34" RIMS, MANUAL ADJUSTABLE (06) - POWER TRAIN
6
26
20
5
4
12
3
23
4
27
2
17
9
8
21
28
11
10
19
24
25
22
18
1
7

Артикул

Название

Примечание

Количество

1

A33168

RIM

- rear wheel (takes 16.9 x 34 tire), used with 3-3/16" diameter axle

2шт.

1

A57045

RIM

- rear wheel (take 18.4 x 34 tire), used with 3-3/16" diameter axle

2шт.

2

A33172

WHEEL

- rear, used with 3-3/16" diameter axle

2шт.

3

A59789

HUB

- universal, used with 3-3/16" diameter axle

2шт.

4

A57993

BUSHING

- rear wheel hub, used with 3-3/16" diameter axle

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, bushing to hub, used with 3-3/16" diameter axle

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-3/16" diameter axle

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used with 3-3/16" diameter axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-3/16" diameter axle 5/8"

16шт.

9

A57654

CLAMP

- double ramp type, rim to wheel, used with 3-3/16" diameter axle

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" N.C. sq. hd., used with 3-3/16" diameter axle

24шт.

11

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt, used with 3-3/16" diameter axle

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex, used with 3-3/16" diameter axle

24шт.

17

A33168

RIM

- rear wheel (takes 16.9 x 34 tire), used with 3-1/2" diameter axle

2шт.

17

A57045

RIM

- rear wheel (takes 18.4 x 34 tire), used with 3-1/2" diameter axle

2шт.

18

A33172

WHEEL

- rear, used with 3-1/2" diameter axle

2шт.

19

A59791

HUB

- universal, used with 3-1/2" diameter axle

2шт.

20

A59792

HUB

BUSHING - rear wheel hub, used with 3-1/2" diameter axle

1шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. hd., bushing to hub, used with 3-1/2" diameter axle

6шт.

22

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-1/2" diameter axle

6шт.

23

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used with 3-1/2" diameter axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-1/2" diameter axle 5/8"

16шт.

25

A57654

CLAMP

- double ramp type, rim to wheel, used with 3-1/2" diameter axle

24шт.

26

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" N.C. sq. hd., used with 3-1/2" diameter axle

24шт.

27

A34799

LOCK WASHER

- lock, rim to wheel clamp bolt, used with 3-1/2" diameter axle

24шт.

28

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex, used with 3-1/2" diameter axle

24шт.

Выбрано товаров: 26
