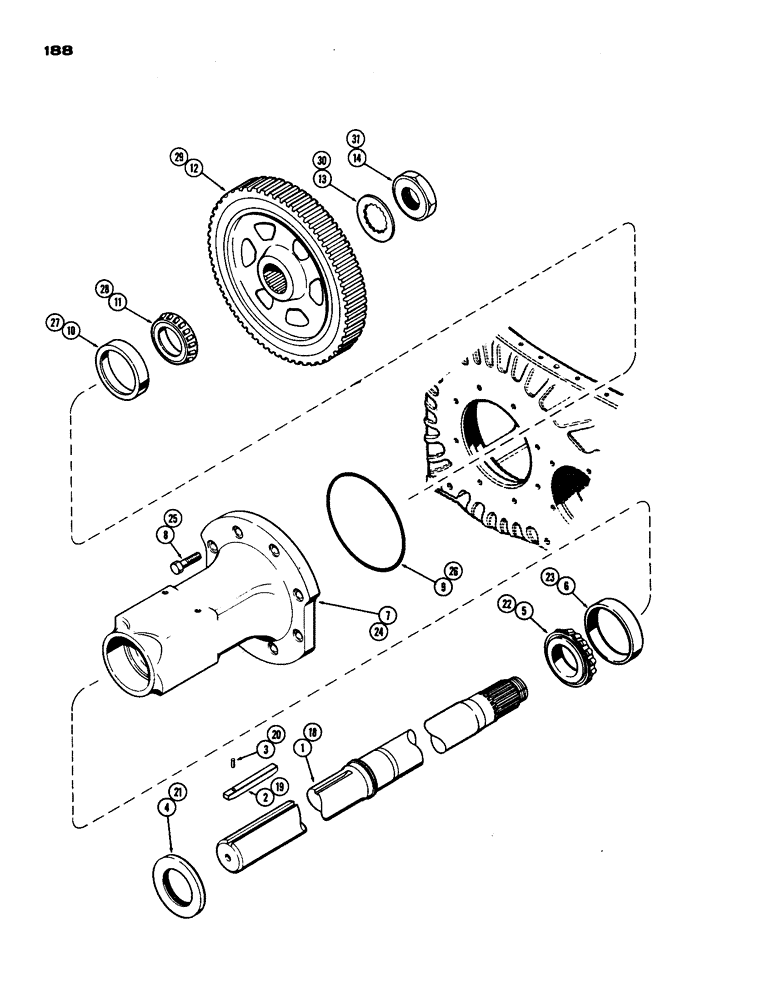

Запчасти Case IH 970 (188) - 96" REAR AXLE, 3-1/2" DIAMETER INTERMEDIATE AXLE (06) - POWER TRAIN

1

A62205

SHAFT - rear axle (3-1/2" dia) (46" long)

2шт.

2

A34890

BUCKET TOOTH KEY

KEY - rear axle (3-1/2" sq. x 6")

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - key (1/4 x 1-3/8" roll)

2шт.

4

A59046

OIL SEAL

- oil (3-7/8 x 5-3/4 x 3/8")

2шт.

5

A59049

ROLLER BEARING

CONE - bearing, housing, outer (3-9/16" I.D.)

2шт.

6

A59048

BEARING CUP

CUP - bearing, housing, outer (5-11/16" O.D.)

2шт.

7

A62283

HOUSING

- rear axle shaft (Replaces A59045)

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8 x 2-1/4" N.C. hex

16шт.

9

A33050

OIL SEAL

- axle housing (9 x 9-1/4 x 1/8")

2шт.

10

A50324

BEARING CUP

CUP - bearing, housing, inner (5-1/4" O.D.)

2шт.

11

A34339

BEARING

CONE - bearing, housing, inner (3-1/4" I.D.)

2шт.

12

A32805

GEAR

- final drive

2шт.

13

A32806

LOCK WASHER

- lock, drive, Serial Range: gear-axle

2шт.

14

A23386

NUT

- lock, drive gear

2шт.

18

A59047

SHAFT

- rear axle (3-1/2" dia.) (57-1/8" length), 118", long axle

2шт.

19

A34890

BUCKET TOOTH KEY

KEY - rear axle (5/8" sq. x 6"), 118", 3-1/2" diameter long axle

2шт.

20

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - roll, rear axle shaft key (1/4 x 1-3/8"), 118", 3-1/2" diameter long axle

2шт.

21

A59046

OIL SEAL

- oil, axle shaft (3-7/8 x 5-3/4 x 3/8"), 118" rear, 3-1/2" diameter long axle

2шт.

22

A59049

ROLLER BEARING

CONE - bearing, housing, outer (3-9/16" I.D.), 118" rear axle, 3-1/2" diameter long axle

2шт.

23

A59048

BEARING CUP

CUP - bearing, housing, outer (5-11/16" O.D.), 118" rear axle, 3-1/2" diameter long axle

2шт.

24

A62283

HOUSING

- axle, rear (Replaces A59045), 118", 3-1/2" diameter long axle

2шт.

25

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8 x 2-1/4" N.C. hex, 118" rear axle, 3-1/2" diameter long axle

16шт.

26

A33050

OIL SEAL

- oil, rear axle housing (rubber) (9 x 9-1/4 x 1/8"), 118", 3-1/2" diameter long axle

2шт.

27

A50324

BEARING CUP

CUP - bearing, housing, inner (5-1/4" O.D.), 118" rear axle, 3-1/2" diameter long axle

2шт.

28

PA34339

NUT

CONE - bearing, housing, inner (3-1/4" I.D.), 118" rear axle, 3-1/2" diameter long axle

2шт.

29

A32805

GEAR

- final drive, rear axle, 118", 3-1/2" diameter long axle

2шт.

30

A32806

LOCK WASHER

- lock, rear axle (2-7/16 x 4-7/8 x 5/64"), 118", 3-1/2" diameter long axle

2шт.

31

A23386

NUT

- lock, rear axle shaft, 118", 3-1/2" diameter long axle

2шт.
