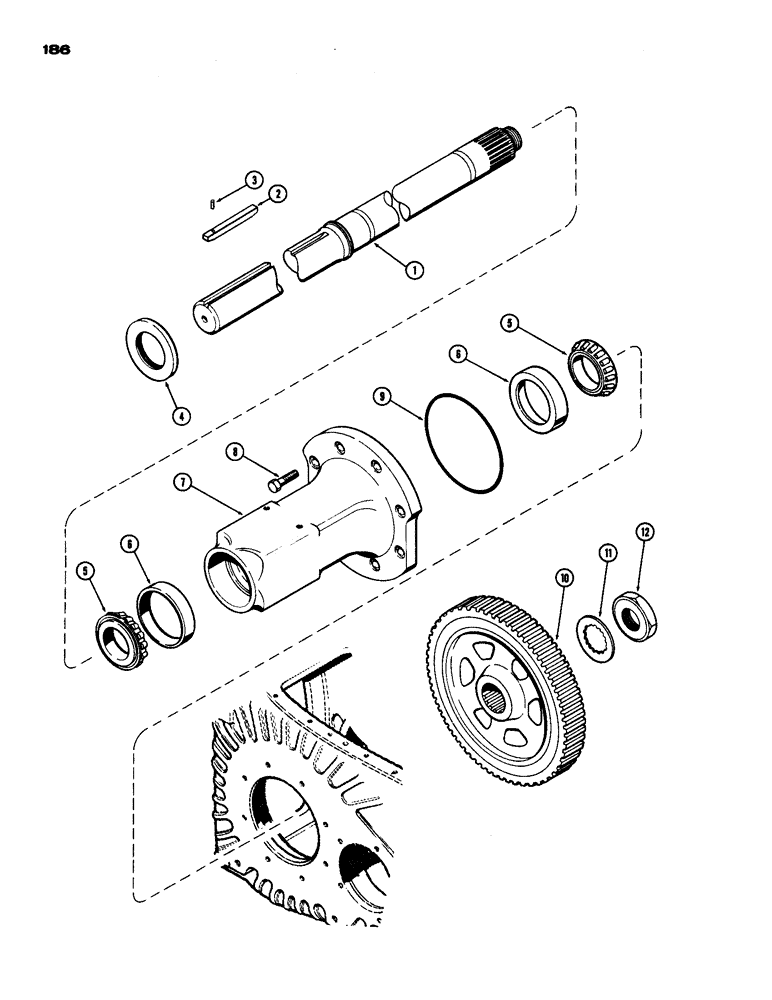

Запчасти Case IH 970 (186) - 88" REAR AXLE, 3-3/16" DIAMETER SHORT AXLE (06) - POWER TRAIN

1

A57646

SHAFT

- rear axle (3-3/16" dia.) (40-3/4" length) (Replaces A58482)

2шт.

2

A34890

BUCKET TOOTH KEY

KEY -rear axle (5/8" sq. x 6")

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - roll, shaft key, rear axle (1/4 x 1-3/8")

2шт.

4

A41814

SEAL

KIT - oil, rear axle shaft, Includes sleeve and seal

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear (Order A41814) (Not Illust.)

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil (Order A41814) (Not Illust.)

1шт.

5

PA34339

NUT

CONE - bearing, rear axle shaft

4шт.

6

A50324

BEARING CUP

CUP - bearing, rear axle shaft

4шт.

7

A58481

HOUSING - axle, rear

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8 x 2-1/4" N.C. hex

16шт.

9

A33050

OIL SEAL

- oil, rear axle housing (rubber) (9 x 9-1/4 x 1/8")

2шт.

10

A32805

GEAR

- final drive, rear axle

2шт.

11

A32806

LOCK WASHER

- lock, rear axle shaft (2-7/16 x 4-7/8 x 5-64")

2шт.

12

A23386

NUT

- lock, rear axle shaft

2шт.
