Запчасти Case IH 970 (184) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

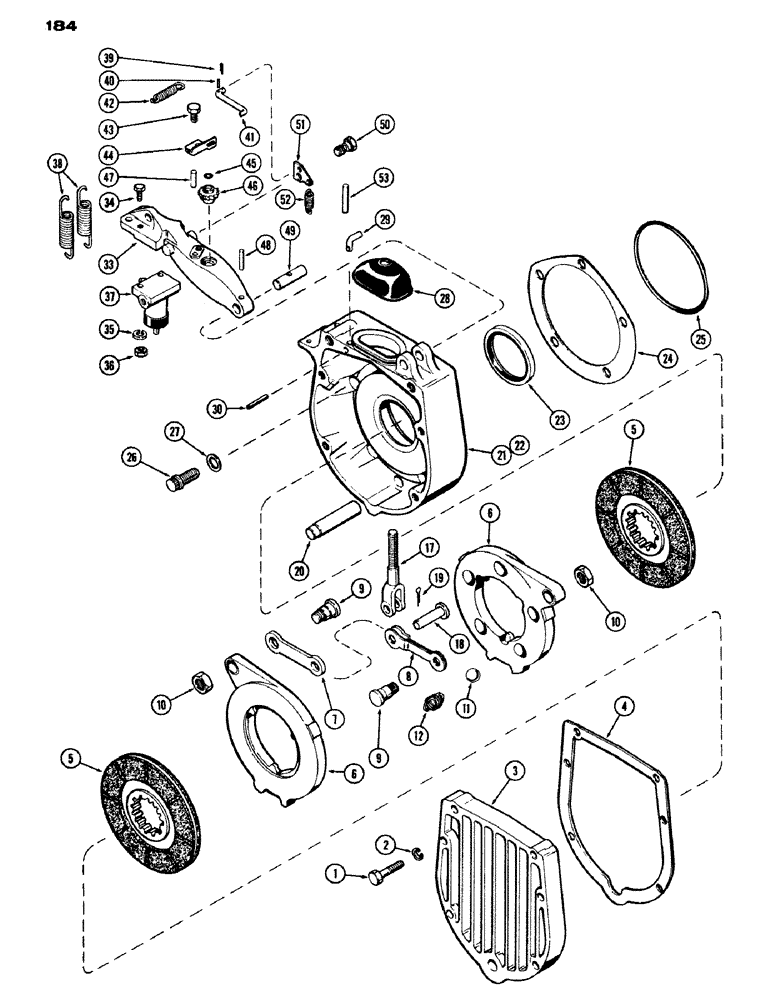

Схема запчастей Case IH 970 - (184) - DIFFERENTIAL BRAKE (06) - POWER TRAIN
49
5
1
24
20
25
46
45
26
36
10
11
30
6
8
51
42
50
17
5
53
7
41
39
18
52
35
9
3
23
43
28
27
40
33
48
6
19
44
12
2
21
10
38
47
22
9
37
34
4
29

Артикул

Название

Примечание

Количество

1

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

12шт.

2

92-8

LOCK WASHER,1/2"

12шт.

3

A58461

COVER

- differential brake

2шт.

4

A59088

SHIM,.1196" Thk

Differential brake cover (.1266/.1126") .1196" Thk

4шт.

5

A40794

DISC

ASSY. - brake, with bonded lining

4шт.

5

A43371

DISC

ASSY. - brake, w/metallic lining (For Riceland)

4шт.

6

A41860

DISC

- brake actuating

4шт.

7

A41861

LINK

- actuating disc, single

2шт.

8

A41862

LINK

- actuating disc, dual

2шт.

9

A41865

BOLT

BOLT - actuating disc

4шт.

10

A42801

JAM NUT

- 1/2" N.F. hex. special

4шт.

11

A42043

BALL

- actuating (1" dia.)

10шт.

12

A41864

SPRING

- disc tension

6шт.

17

A58021

ROD

- differential brake

2шт.

18

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, yoke end (5/8 x 1-29/64")

2шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Clevis pin 1/8" x 1"

2шт.

20

A58449

PIN

- anchor, differential brake

2шт.

21

A58454

HOUSING

ASSY. - differential brake w/seal (R.H.)

1шт.

22

A58455

HOUSING

ASSY. - differential brake, w/seal (L.H.), Includes: Ref. 23

1шт.

23

A57658

OIL SEAL

- oil, differential brake housing

1шт.

24

A60490

SHIM,.003" Thk

Differential brg. carrier .003" Thk

1шт.

24

A60491

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

24

A60492

SHIM,.010" Thk

Differential brg. carrier .010" Thk

1шт.

25

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O"RING - 5-5/8 x 5-7/8 x 1/8"

2шт.

26

A60496

LOCK BOLT

BOLT - 5/8 x 2-1/2" N.C. Ferry cap

4шт.

26

A62449

FLANGE BOLT

BOLT - 5/8 x 2-3/4" N.C. Ferry cap

6шт.

27

A29881

WASHER

- 41/64 x 1-1/16 x 1/16"

10шт.

28

A27465

CAP

- dust, differential brake rod

2шт.

29

A59319

STUD

- spring hold-down

2шт.

30

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, , Spring stud 5/32" x 5/8", Slotted

2шт.

33

A62923

LEVER

- actuating differential brake (Replaces A60695)

2шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

36

25-104

NUT,1/4"-20, G5

4шт.

37

REF

INSTRUCTION

CYLINDER ASSY. - brake slave (7/8" dia.) (See Figure 199)

2шт.

38

A35789

SPRING

- return, brake actuating lever (2-3/8" free length)

4шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

40

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN, 5/64" x 1/2", Slotted

2шт.

41

A59607

ROD

- brake, self-adjusting

2шт.

42

A60555

SPRING

- self-adjusting brake rod (1-39/64" free length)

2шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

44

A59609

BRACKET

- self-adjusting brake rod

2шт.

45

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O"RING - 3/8 x 9/16 x 3/32"

2шт.

46

A62230

NUT

- ratchet adjusting (20 teeth) (Used w/hyd. brakes)

2шт.

46

A60488

NUT

- ratchet adjusting (16 teeth) (Used w/power brakes)

2шт.

47

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

48

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Brake lever to brake pin 3/16" x 1 1/4", Slotted

2шт.

49

A62822

PIN

- differential brake lever (5/8 x 2-1/4") (Chrome) (Replaces A61952)

1шт.

50

A58471

STEP BOLT

BOLT - shoulder, self adjuster cam

2шт.

51

A64490

CAM

- self-adjusting differential brake (Replaces A59606)

2шт.

52

A60489

SPRING

- self adjuster cam to stud (1-23/32" free length)

2шт.

53

A61216

ROD

- spring, self-adjuster cam to stud (Replaces A59608)

2шт.

Выбрано товаров: 52
