Запчасти Case IH 970 (182) - DIFFERENTIAL (06) - POWER TRAIN

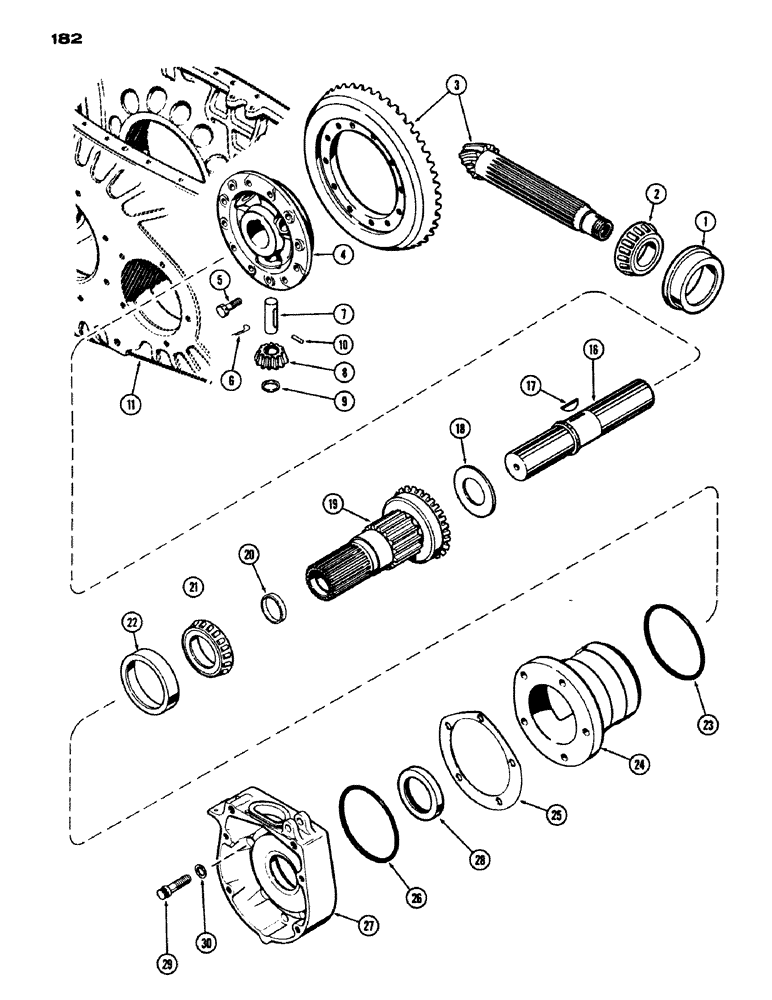

Схема запчастей Case IH 970 - (182) - DIFFERENTIAL (06) - POWER TRAIN
2
22
30
26
23
20
11
1
8
10
17
5
21
9
7
6
25
16
24
3
19
27
29
4
28
18

Артикул

Название

Примечание

Количество

1

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

BEARING - tapered flanged cup, countershaft, rear

1шт.

2

A32758

ROLLER BEARING,2.375" ID x 1.8125"

BEARING - tapered cone, countershaft, rear

1шт.

3

A33733

GEAR

SET - countershaft and ribg gear

1шт.

4

A33905

WHEEL

- center, differential

1шт.

5

A32769

BOLT

- center wheel to ring gear (drilled head)

12шт.

6

391-705

ELECTRICAL WIRE

WIRE - 18 ga. (.0475") x #10 annealed

6шт.

7

A62214

PIN

- differential pinion gear (Replaces A34174)

4шт.

8

A62530

PINION

GEAR - pinion, differential bevel (Replaces A32767)

4шт.

9

A33539

WASHER

- thrust, differential pinion gear

4шт.

10

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

11

A61180

HOUSING

- transmission (Power Shift) (1st Used Tractor Serial No. 8650101)

1шт.

11

A58418

CASE

HOUSING - transmission (Power Shift) to Tractor, Serial Range: -8650101

1шт.

11

A58971

HOUSING - transmission (Mechanical Shift)

1шт.

16

A34800

SHAFT

- differential

1шт.

17

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - Woodruff, center wheel (3/8 x 2-3/4")

1шт.

18

A62407

WASHER

- thrust, differential ger (Replaces A58448)

2шт.

19

A58008

GEAR

ASSY. - differential side, with sleeve and plug, Includes: Ref. 20

2шт.

20

41-1042

PLUG,Cup, 2 5/8"

- cup type, differential side gear (Replaces A24555)

1шт.

21

A34340

ROLLER BEARING

BEARING - tapered cone, differential side gear

2шт.

22

A34343

BEARING CUP

BEARING - tapered cup, differential side gear

2шт.

23

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O"RING - 6-1/4 x 6-1/2 x 1/8"

2шт.

24

A60493

SLEEVE

ASSY. - support, with bushing

2шт.

25

A60490

SHIM,.003" Thk

Differential brg. carrier .003" Thk

1шт.

25

A60491

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

25

A60492

SHIM,.010" Thk

Differential brg. carrier .010" Thk

1шт.

26

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O"RING - differential brake housing

2шт.

27

A58454

HOUSING

ASSY. - differential brake w/seal (R.H.)

1шт.

27

A58455

HOUSING

ASSY. - differential brake w/seal (L.H.), Includes: Ref. 28

1шт.

28

A57658

OIL SEAL

- oil, differential brake hsg.

1шт.

29

A60496

LOCK BOLT

BOLT - 5/8 x 2-1/2" N.C. Ferry cap, self-sealing

4шт.

29

A62449

FLANGE BOLT

BOLT - 5/8 x 2-3/4" N.C. Ferry cap

6шт.

30

A29881

WASHER

- 41/64 x 1-1/16 x 19/32" 41/64 x 1-1/16 x 19/32"

10шт.

Выбрано товаров: 32
