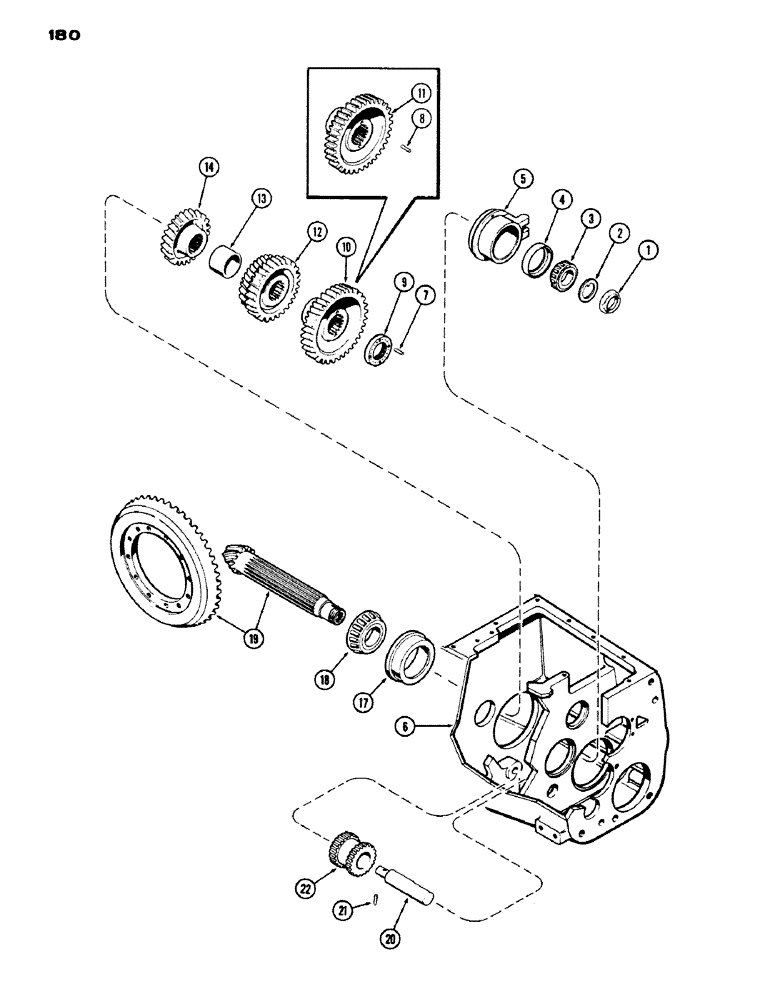

Запчасти Case IH 970 (180) - COUNTER AND REVERSE IDLER SHAFTS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A60019

NUT

- lock, countershaft front bearing

1шт.

2

A28170

WASHER

- thrust, countershaft front bearing

1шт.

3

A32764

ROLLER BEARING,1.875" ID x 1"

BEARING - tapered cone, countershaft, front

1шт.

4

A32763

CUP

BEARING - tapered cup, countershaft, front

1шт.

5

A61820

CARRIER

- countershaft, front bearing (Replaces A61758 or A59006)

1шт.

6

A58971

HOUSING - transmission

1шт.

7

138-2053

PIN,1/4" x 1 1/4", Coiled

Locknut (use w/A61893 gear) (1st used trans. S/N 2349308) 1/4" x 1 1/4", Coiled

1шт.

8

138-2051

PIN,1/4" x 3/4", Coiled

Locknut (use w/A33561 gear) to trans. 1/4" x 3/4", Coiled, Serial Range: -2349308

1шт.

9

A61115

NUT

- lock, countershaft gear

1шт.

10

A61893

GEAR

- driven (1st and 5th) (40 external and 26 internal teeth) (Use w/138-2053 pin) (1st Used Trans. Ser. No. 2349308)

1шт.

11

A33561

GEAR

- driven (1st and 5th) (40 external and 26 internal teeth) (Use w/138-2051 pin) to Trans. (Order 1-A61893 and 1-138-2053), Serial Range: -2349308

1шт.

12

A58146

GEAR

- cluster, 2nd and 3rd speed driven (31 and 36 external and 26 internal teeth)

1шт.

13

A57651

BUSHING

SPACER - countershaft gear

1шт.

14

A57445

GEAR

- 4th speed driven (29 external and 26 internal teeth)

1шт.

17

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

BEARING - taper (flanged cup), countershaft, rear

1шт.

18

A32758

ROLLER BEARING,2.375" ID x 1.8125"

BEARING - tapered cone, countershaft, rear

1шт.

19

A33733

GEAR

SET - countershaft and ring gear

1шт.

20

A58140

SHAFT

- idler, reverse

1шт.

21

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, , Reverser idler shaft to trans. case 5/16" x 3/4", Slotted

1шт.

22

A58141

GEAR

ASSY. - reverse idler with bushing

1шт.
