Запчасти Case IH 970 (178) - COUNTERSHAFT (06) - POWER TRAIN

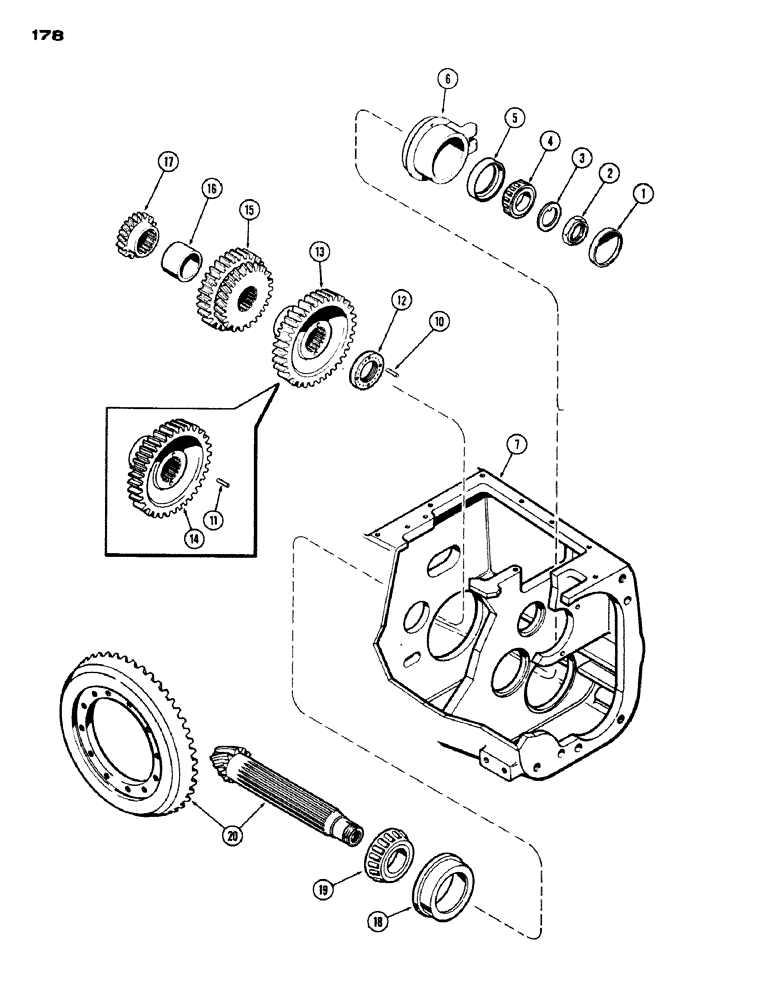

Схема запчастей Case IH 970 - (178) - COUNTERSHAFT (06) - POWER TRAIN
17
13
14
12
4
15
19
11
6
18
10
2
7
3
1
20
16
5

Артикул

Название

Примечание

Количество

1

A58007

PLUG

- cup type, countershaft front bearing

1шт.

2

A60019

NUT

- lock, countershaft front bearing

1шт.

3

A28170

WASHER

- thrust, countershaft front bearing

1шт.

4

A32764

ROLLER BEARING,1.875" ID x 1"

BEARING - tapered cone, countershaft, front

1шт.

5

A32763

CUP

BEARING - tapered cup, countershaft, front

1шт.

6

A61820

CARRIER

- countershaft front bearing (Replaces A61758 or A59006)

1шт.

7

A61180

HOUSING

- trans. (1st Used Tractor Serial No. 8650101)

1шт.

7

A58418

CASE

HOUSING - trans. to Tractor, Serial Range: -8650101

1шт.

10

138-2053

PIN,1/4" x 1 1/4", Coiled

Locknut (use w/A61894 gear) (1st used trans. S/N 2349168) 1/4" x 1 1/4", Coiled

1шт.

11

138-2051

PIN,1/4" x 3/4", Coiled

Locknut (use w/A58005 gear) to trans. 1/4" x 3/4", Coiled, Serial Range: -2349168

1шт.

12

A61115

NUT

- lock, countershaft gear

1шт.

13

A61894

GEAR

- 1st range driven (40 external and 26 internal teeth) (Used w/138-2053 pin) (1st Used Trans. Ser. No. 2349168)

1шт.

14

A58005

GEAR

- 1st range driven (40 external and 26 internal teeth) (Use w/138-2051 pin) To Trans. (Order 1-A61894 and 1-138-2053), Serial Range: -2349168

1шт.

15

A58004

GEAR

- cluster, 2nd and 3rd range driven (34 external and 26 internal teeth)

1шт.

16

A57651

BUSHING

SPACER - countershaft range rear

1шт.

17

A58003

GEAR

- 4th range driven (18 external and 26 internal teeth)

1шт.

18

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

BEARING - tapered flange cup, countershaft, rear

1шт.

19

A32758

ROLLER BEARING,2.375" ID x 1.8125"

BEARING - tapered cone, countershaft, rear

1шт.

20

A33733

GEAR

SET - countershaft and ring gear

1шт.

Выбрано товаров: 19
