Запчасти Case IH 970 (177A) - RANGE SHAFT AND GEARS, MECHANICAL SHIFT (06) - POWER TRAIN

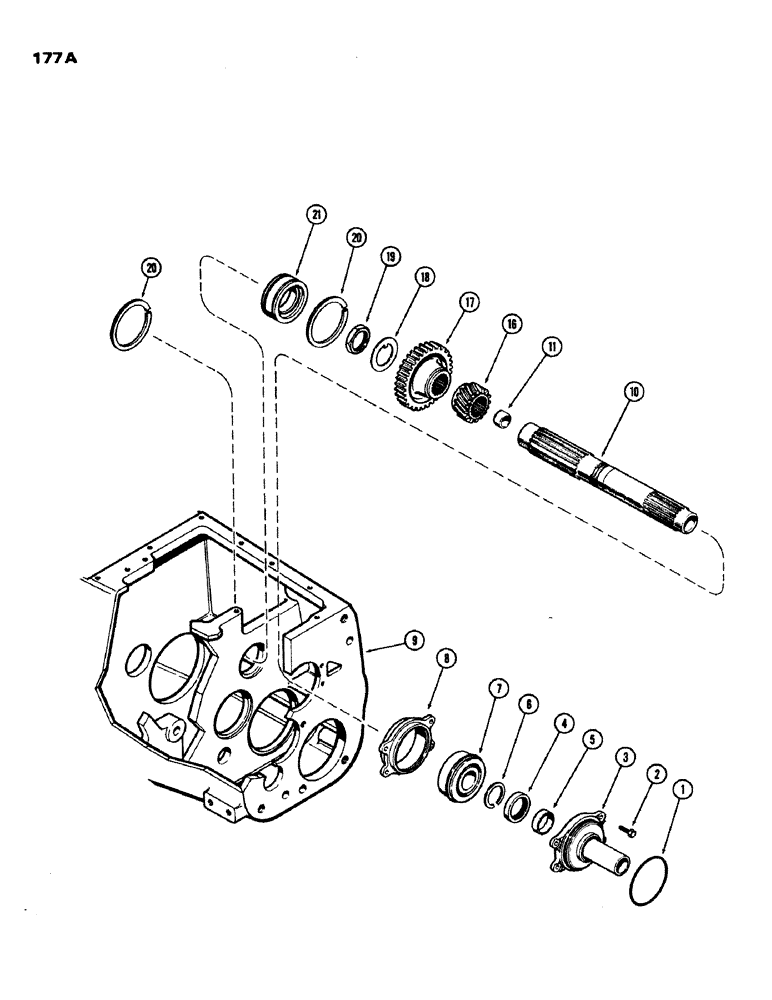

Схема запчастей Case IH 970 - (177A) - RANGE SHAFT AND GEARS, MECHANICAL SHIFT (06) - POWER TRAIN
4
3
16
9
17
18
10
8
7
20
6
2
19
20
11
1
5
21

Артикул

Название

Примечание

Количество

1

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O"RING - 4-1/4 x 4-1/2 x 1/8"

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

4шт.

3

A57698

CARRIER

ASSY. - range drive shaft bearing, Includes: Ref. 4

1шт.

4

A60076

OIL SEAL

- oil, helix lip type, range drive shaft

1шт.

5

A57697

SLEEVE

- wear, range drive shaft oil seal

1шт.

6

A27085

RING

SNAP RING - retaining, range drive shaft front bearing

1шт.

7

39320

BALL BEARING,45mm ID x 106.38mm OD x 39.69mm W

- ball, range drive shaft, front

1шт.

8

A32791

CARRIER

- bearing, range drive shaft, front

1шт.

9

A58971

HOUSING - transmission

1шт.

10

A61603

SHAFT

ASSY. - range drive with bushing (Replaces A60026), Includes: Ref. 11

1шт.

11

A28235

BUSHING

- range drive shaft (1-1/8 x 1-1/4 x 3/4")

1шт.

16

A34349

GEAR

- drive, low-range (18 teeth)

1шт.

17

A34350

GEAR

- drive, high-range (38 teeth)

1шт.

18

A32035

LOCK WASHER

- seat, high - range drive gear shaft nut

1шт.

19

A32034

NUT

- lock, high - range drive gear shaft

1шт.

20

A28153

RING

SNAP RING - retaining, range drive shaft rear bearing

2шт.

21

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - roller, range drive shaft, rear

1шт.

Выбрано товаров: 17
