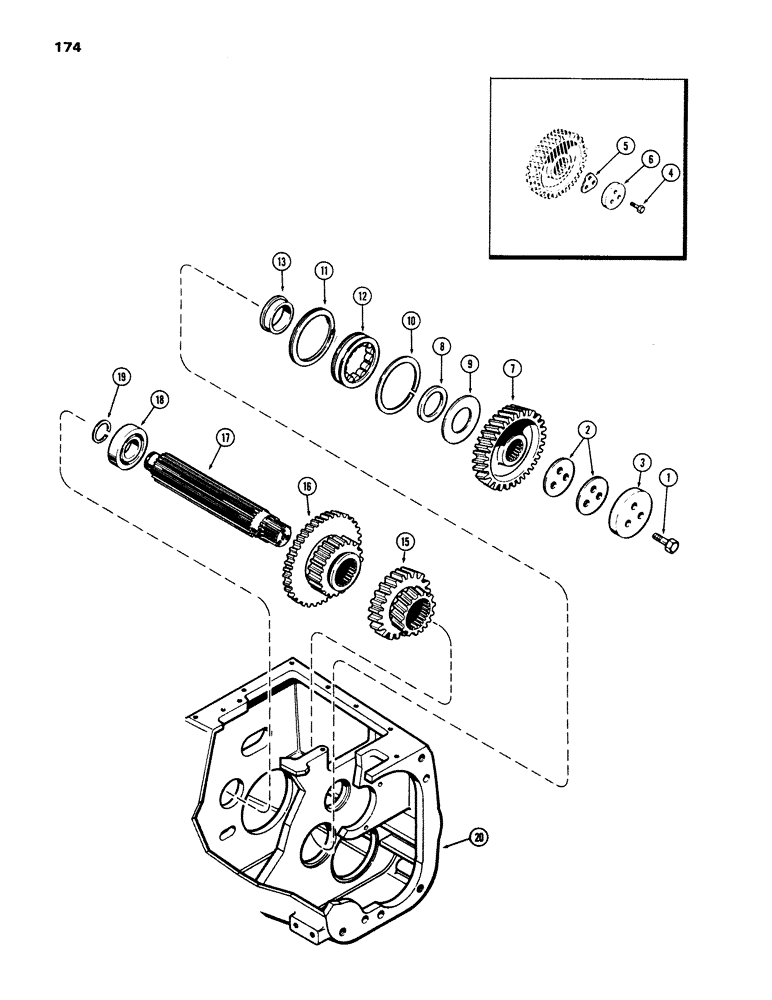

Запчасти Case IH 970 (174) - SLIDING GEAR SHAFT, POWER SHIFT (06) - POWER TRAIN

1

113-2224

SCREW

BOLT - 3/8 x 1-1/8" N.C. hex, jay loc.

3шт.

2

A62726

SHIM,.007" Thk

Retaining plate .007" Thk

1шт.

2

A62727

SHIM,.005" Thk

Retaining plate .005" Thk

1шт.

3

A62601

PLATE

- front, sliding gear shaft

1шт.

4

113-230

X

BOLT - 3/8 x 1-1/8" N.C. hex

3шт.

5

A58034

RETAINER

- locking, sliding gear shaft (Order 1-A62601 plate, 3-113-2224 bolts shims and 3-A62727 shims)

1шт.

6

A58033

PLATE

- end, sliding gear shaft, front (Order 1-A62601) plate, 3-113-2224 bolts, 3-A62726 shims and 3-A62727 shims)

1шт.

7

A58032

GEAR

- input, sliding gear shaft (44 ext. and 27 int. teeth)

1шт.

8

A60562

SHIELD

- oil, gear shaft rear bearing

1шт.

9

A61119

PLATE

- sliding gear shaft, front inner race bearing (1st used trac. ser. no. 8650101) (1-49/64 x 2-7/32 x .177")

1шт.

9

A58416

WASHER

PLATE - sliding gear shaft, front inner race bearing to trac. (1-49/64 x 2-7/32 x .0164"), Serial Range: -8650101

1шт.

10

A62593

RING

- snap, wound, sliding gear shaft, frt. outer race brg. (1st used trans. ser. no.2360135)

1шт.

11

A32005

RING

- snap, ext., sliding gear shaft frt. outer race brg. (2 to trans., Serial Range: -2360135

1шт.

12

A58028

BEARING ASSY,45mm ID x 100mm OD x 31mm W

BEARING - roller, outer race, sliding gear shaft, front (1st used tractor serial no. 8650101) (1-7/32" wide) (Used w/A58027 inner race brg.)

1шт.

12

A58030

BEARING ASSY

BEARING - roller, outer race, sliding gear shaft, front to tractor (1" wide) (Used w/A58029 inner race brg.), Serial Range: -8650101

1шт.

13

A58027

BEARING CONE,1.7717" ID x 1.04"

BEARING - roller, inner race, sliding gear shaft, front (1st used tractor serial no.8650101) (1" wide) (Used w/A58028 outer roller brg.)

1шт.

13

A58029

BEARING CONE,1.7717" ID x 0.817"

BEARING - roller, inner race, sliding gear shaft, front to tractor (13/16" wide) (Used w/A58030 outer roller brg.), Serial Range: -8650101

1шт.

15

A58026

GEAR

- sliding range cluster, (1st and 3rd) (15 and 26 external teeth)

1шт.

16

A62178

GEAR

- sliding range cluster, (2nd and 4th) (Replaces A58025) (21 and 37) external and 32 internal teeth)

1шт.

17

A58024

SHAFT

- gear, sliding

1шт.

18

A60561

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, sliding gear shaft, rear

1шт.

19

A21619

CIRCLIP

SNAP RING - external, sliding gear shaft, rear

1шт.

20

A61180

HOUSING

- trans. (1st used trac. ser. no. 8650101)

1шт.

20

A58418

CASE

HOUSING - trans. to trac., Serial Range: -8650101

1шт.
