Запчасти Case IH 970 (173A) - A61984 TRANSMISSION CONTROL VALVE, POWER SHIFT, USED TO TRANS. SER. NO. 2366001 (06) - POWER TRAIN

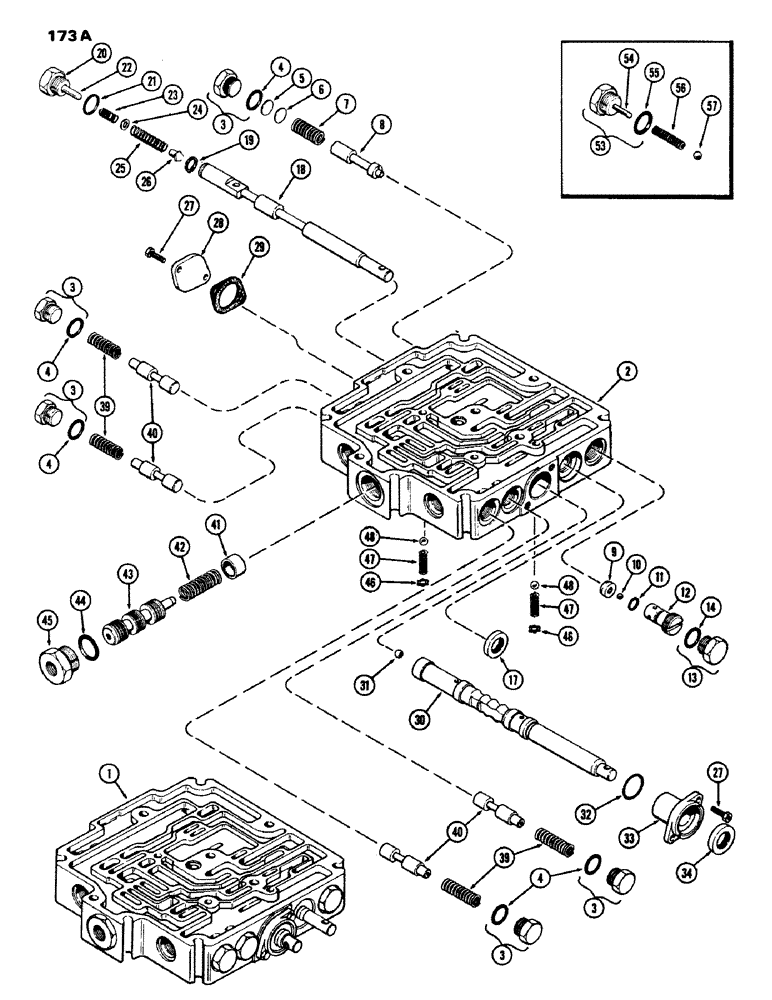

Схема запчастей Case IH 970 - (173A) - A61984 TRANSMISSION CONTROL VALVE, POWER SHIFT, USED TO TRANS. SER. NO. 2366001 (06) - POWER TRAIN
17
27
18
40
5
7
25
48
21
12
2
39
40
53
3
55
46
4
20
54
39
4
29
47
19
44
46
8
28
4
3
14
23
11
3
33
56
42
10
47
4
34
32
43
3
41
46
6
57
13
30
22
26
9
27
1
24
31
45
3

Артикул

Название

Примечание

Количество

1

A61984

VALVE

ASSY. - trans. control, Includes: Ref. 2 - 48

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - trans. control valve (Order A61984)

1шт.

3

A62564

PLUG

ASSY. - pressure regulator

5шт.

5

A37554

SHIM,.0269" Thk

Pressure adjustment (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure adjustment (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

- compression, regulator (1-3/8" free length)

1шт.

8

A37551

PLUNGER

- pressure regulator

1шт.

9

A58441

SEAT

- ball, shuttle valve

1шт.

10

211-7

BALL,1/4" Dia

- shuttle valve ball seat 1/4" Dia

1шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - 3/32 x 1/2 x 11/16"

1шт.

Part of control valve seal kit P/N A42885

1шт.

12

A58440

SLEEVE

- shuttle valve

1шт.

13

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 14 Hex Hd, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - 3/4 x 15/16 x 3/32"

1шт.

Part of control valve seal kit P/N A42885

1шт.

17

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

Part of control valve seal kit P/N A42885

1шт.

18

A60515

SPOOL - clutch control

1шт.

19

G46176

SNAP RING,#56, Ext

Ring, Snap, , clutch control spool #56, Ext

1шт.

A42887

KIT

- clutch modulator (Not Illust.), Includes: Ref. 20 - 26, 1st used trans. serial No. 2337294.

1шт.

20

A61985

PLUG

ASSY. - modulator, Includes: Ref. 21 and 22

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - (3/4 x 15/16 x 3/32")

1шт.

Part of control valve seal kit P/N A42885

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - spring guide (Order A61985)

1шт.

23

A61988

SPRING

- secondary, clutch modulator (49/64" free length) (17/64" dia.)

1шт.

24

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide (13/64 x 23/64 x 1/25")

1шт.

A60155

SPRING

POINT & SPRING ASSY. - clutch mod. (Not Illust.), Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - primary (1-39/64" free length) (5/16" Dia.)

1шт.

26

NSS

NOT SOLD SEPARAT

POINT - modulator

1шт.

27

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- cap (1/4 x 3/4" N.C. hex. socket hd.)

4шт.

28

A58429

COVER

- selector spool

1шт.

29

A58427

GASKET

- selector spool cover

1шт.

Part of control valve seal kit P/N A42885

1шт.

30

A60550

SPOOL

ASSY. - selector, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

BALL - chrome steel (9/32" dia.) (Order A60550)

1шт.

32

A59066

O-RING,1.239" ID x 1.379" OD

"O"RING - spool sleeve (1-1/4 x 1-3/8 x 1/16")

1шт.

Part of control valve seal kit P/N A42885

1шт.

33

A62839

SLEEVE

- selector spool (Replaces A58426)

1шт.

34

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector spool

1шт.

Part of control valve seal kit P/N A42885

1шт.

39

A58271

SPRING

- spool return (1-49/64" free length)

4шт.

40

A59063

SPOOL

- pilot

4шт.

41

A61033

SLEEVE

- reverse lock-out spool

1шт.

42

A58432

SPRING

- compression, reverse lock-out spool

1шт.

43

A61032

SPOOL

- reverse lock-out

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - spool bushing (3/4 x 59/64 x 1/8")

1шт.

Part of control valve seal kit P/N A42885

1шт.

45

A58434

BUSHING - boss reducer, reverse lock-out spool

1шт.

46

A58439

RETAINER

- retard check spring

2шт.

47

A58438

SPRING

- retard check (15/16" free length)

2шт.

48

211-8

BALL,9/32" Dia

- pilot release retard check 9/32" Dia

2шт.

A42885

SEAL KIT

SEAL KIT - control valve, Includes: Ref. 4, 11, 14, 17, 21, 29, 32, 34, 44 and 53

1шт.

53

A60516

PLUG ASSY. - modulator, Includes: Ref. 54 and 55 to trans., Serial Range: -2337294

1шт.

Part of control valve seal kit P/N A42885

1шт.

54

A60519

PIN - spring guide

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - (3/4 x 15/16 x 3/32")

1шт.

56

A60517

SPRING - clutch modulator (1-43/64" free length) to trans., Serial Range: -2337294

1шт.

57

211-8

BALL,9/32" Dia

- steel (Grade 3) to trans. 9/32" Dia, Serial Range: -2337294

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

Part of control valve seal kit P/N A42885

1шт.

Выбрано товаров: 60
