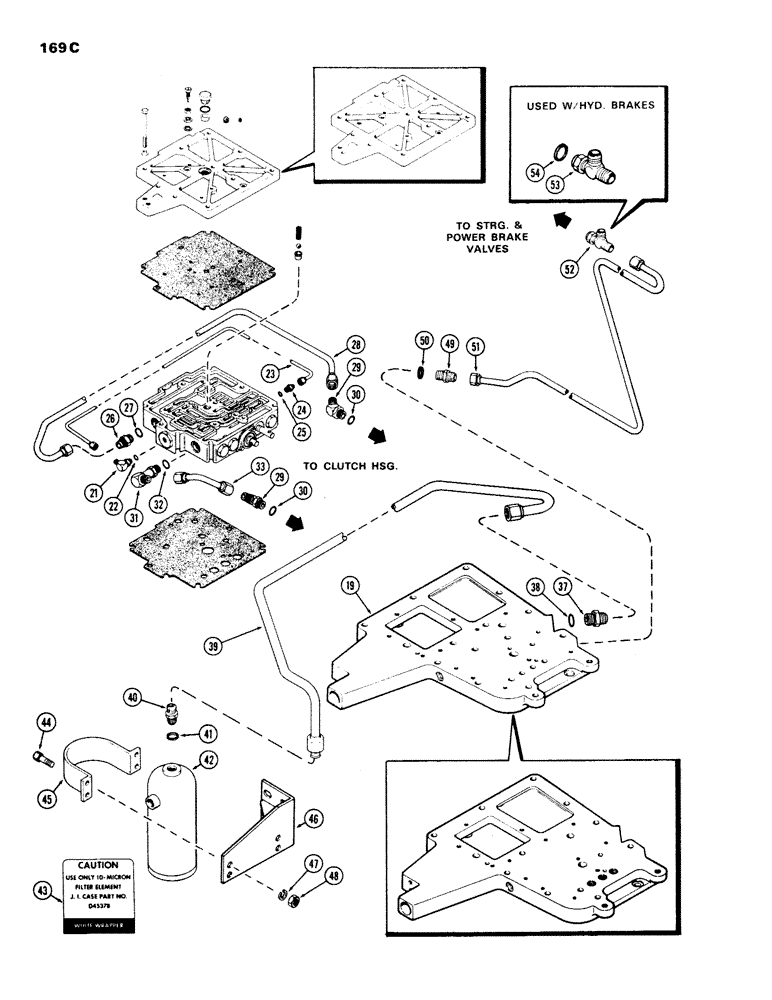

Запчасти Case IH 970 (169C) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. SN 2366001 (06) - POWER TRAIN

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 adjustable, 1/4" tube, 7/16" P.T., Includes: Ref. 22

1шт.

O

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O"RING - 1/4 x 23/64 x 5/64"

1шт.

23

A60656

TUBE

- pilot, trans. control valve reverse lock-out

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY. - 1/4" tube, 37 flare with "O"ring, Incl. Ref. 25

1шт.

O

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O"RING - 1/4 x 23/64 x 5/64"

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - 1/2" tube, 3/4" P.T., Incl. Ref 27

1шт.

28

A60269

TUBE

- trans. control valve to clutch hsg.

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 adjustable, 1/2" tube, Incl. Ref 30

2шт.

O

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - 1/2" tube, Includes: Ref. 32

1шт.

33

A62101

TUBE

- valve to clutch hsg. (Replaces A61054)

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 3/4" tube 1-1/16" P.T., Incl. Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - 3/4 x 59/64 x 1/8"

1шт.

39

A60859

TUBE

- hyd. oil filter to trans. control valve

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 3/4" tube 1-1/16" P.T., Incl. Ref. 41

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - 3/4 x 59/64 x 1/8"

1шт.

42

A60766

SPROCKET

FILTER ASSY. - 10 Micron (White Wrapper) (See Figure 171)

1шт.

43

321-1295

DECAL

- "Warning", trans. oil filter (White Wrapper)

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

45

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

46

A60854

BRACKET - mounting, hyd. oil filter

1шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

49

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - 3/4" P.T., 1/2" tube, Incl. Ref 50

1шт.

51

A59923

TUBE - tee junction to trans. cover

1шт.

52

218-594

TEE,3/4"-16, 37 Degree

- junction, 1/2" tube (Used w/power brakes)

1шт.

53

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 1/2" tube (Used w/hyd. brakes), Includes: Ref. 54

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - 3/4 x 15/16 x 3/32"

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 1/2 x 21/32 x 3/32"

1шт.
