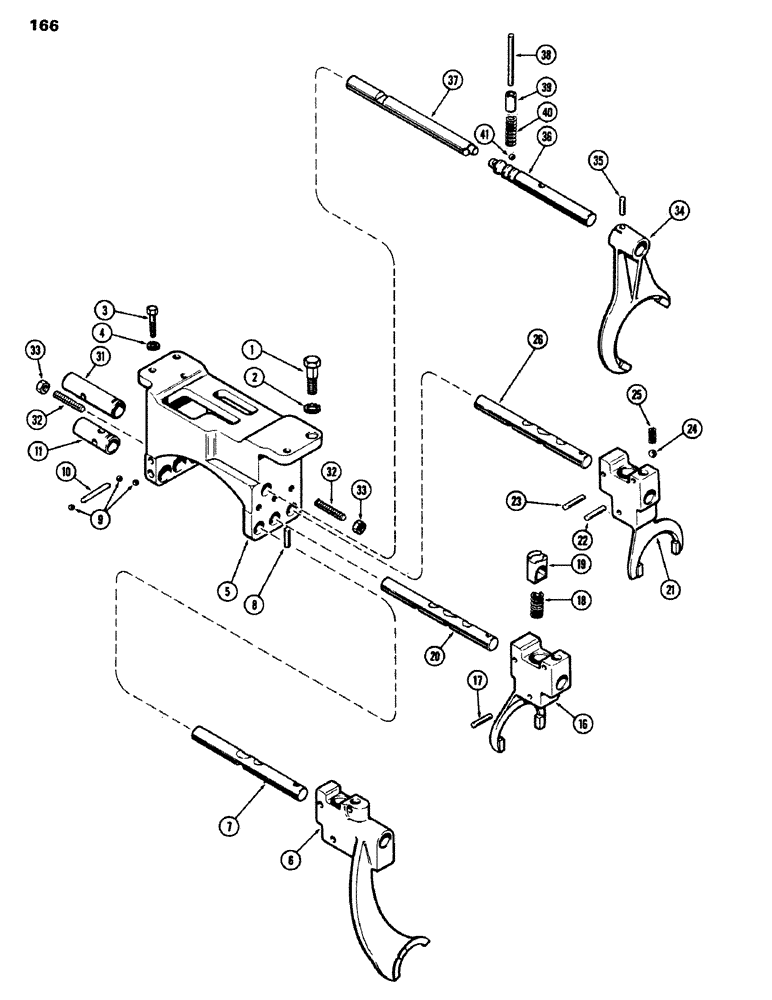

Запчасти Case IH 970 (166) - GEAR SHIFT MECHANISM, RAILS AND FORKS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A32042

STEP BOLT

BOLT - dowel, shifter bracket to trans. case

1шт.

2

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/2" N.C. hex

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

5

A62810

BRACKET

- gear shift control (Replaces A60712)

1шт.

6

A59104

FORK

- reverse gear shift

1шт.

7

A59136

SHAFT

RAIL - reverse gear shift fork

1шт.

8

138-2048

PIN,5/16" x 5/8", Coiled

rails to brkts. 5/16" x 5/8", Coiled

3шт.

9

211-28

BALL,13/32" Dia

- (., chrome steel, gr. 3) 13/32" Dia

4шт.

10

A59120

ROD

- gear shift interlock

1шт.

11

A59119

TUBE

- gear shift reverse interlock

1шт.

16

A59105

FORK

- 1st & 2nd gear shift

1шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Holds spring in forks 3/16" x 1 1/4", Slotted

3шт.

18

A58492

SPRING

- gear shift fork detent lock (1-1/4" free length)

3шт.

19

A58491

CLIP

LOCK - detent, gear shift lever

3шт.

20

A59137

SHAFT

RAIL - 1st and 2nd gear shift fork

1шт.

21

A59106

FORK

- 3rd and 4th gear shift

1шт.

22

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

3шт.

23

138-2002

PIN,3/16" x 1 1/4", Coiled

3шт.

24

211-14

BALL,9/16" Dia

- detent (meter) 9/16" Dia

3шт.

25

A59588

SPRING

- gear shift fork detent ball (11/16" free length)

3шт.

26

A59138

SHAFT

RAIL - 3rd and 5th gear shift fork

1шт.

31

A59118

TUBE

- gear shift interlock

2шт.

32

83-632

SET SCREW,Hex Soc, 3/8"-16 x 2"

SCREW - set, 3/8 x 2" N.C. hex sckt. hdless.

3шт.

32

83-628

SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"

SCREW - set, 3/8 x 1-3/4" N.C. hex socket, headless

3шт.

33

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex, jam

6шт.

34

A62249

FORK

RAIL - range gear shift fork

1шт.

35

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Fork to shaft 1/4" x 1 1/2", Slotted

1шт.

36

A62248

SHAFT

FORK - range gear shift

1шт.

37

A59117

TUBE

SHAFT - range

1шт.

38

A59116

ROD

- neutral switch

1шт.

39

A59113

SPACER

- range shift detent ball spring

1шт.

40

A33749

SPRING

- detent ball, range gear shift (1-9/32" free length)

1шт.

41

211-13

BALL,1/2" Dia

- detent, range shift 1/2" Dia

1шт.
