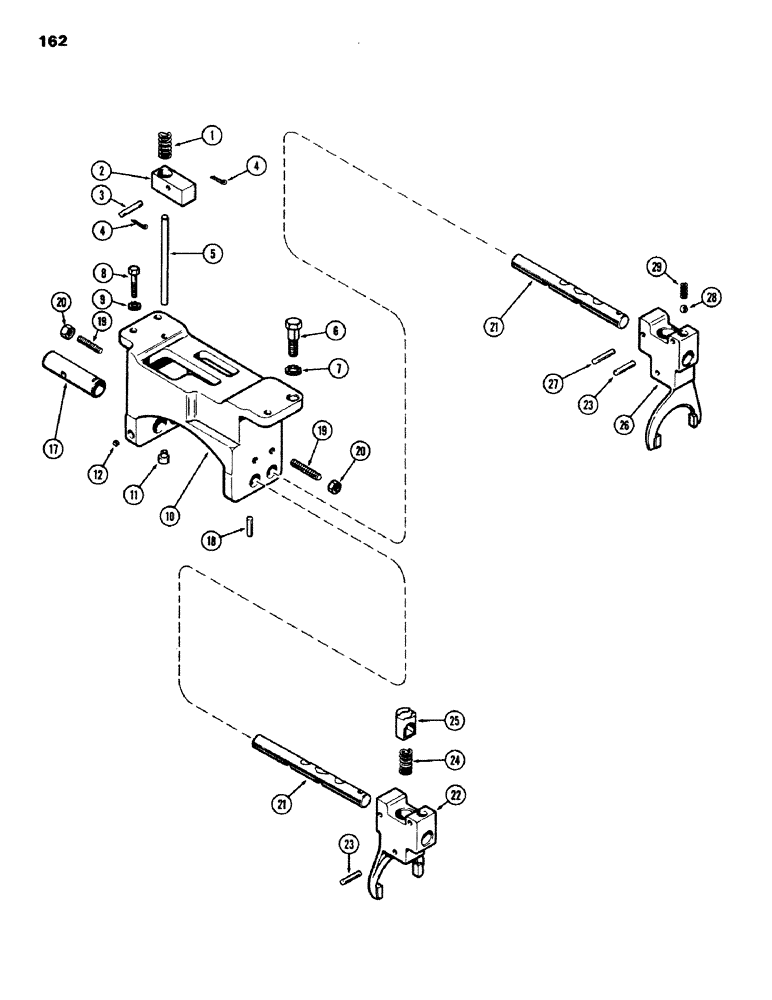

Запчасти Case IH 970 (162) - RAILS AND FORKS, POWER SHIFT (06) - POWER TRAIN

1

A61705

SPRING

- neutral switch (1-35/64" free length) (21/32" O.D.) (Replaces A60837)

1шт.

2

A60836

LEVER

- neutral switch

1шт.

3

A61030

PIN

- pivot, neutral switch

1шт.

4

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), , Lever to cover 1/16" x 3/8"

2шт.

5

A60713

ROD

- neutral switch

1шт.

6

A32042

STEP BOLT

BOLT - dowel, 1-15/16 x 7/16" N.C. hex

1шт.

7

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/2" N.C. hex

2шт.

9

192-10

WASHER - Shakeproof, 3/8" ext.

2шт.

10

A61187

BRACKET

ASSY. - range shift control (Replaces A60716), Includes: Ref. 11 and 12

1шт.

11

A60714

PIN

- ball return

1шт.

12

211-28

BALL,13/32" Dia

- (., chrome steel, gr. 3) 13/32" Dia

1шт.

17

A59118

TUBE

- range shift interlock

2шт.

18

138-2048

PIN,5/16" x 5/8", Coiled

range shafts to bracket 5/16" x 5/8", Coiled

2шт.

19

83-628

SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"

SCREW - set, 3/8 x 1-3/4" N.C., hdless. hex. sckt. hd.

2шт.

19

83-632

SET SCREW,Hex Soc, 3/8"-16 x 2"

SCREW - set, 3/8 x 2" N.C. hex. sckt. hdless.

2шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex, jam

4шт.

21

A61031

SHAFT

RAIL - range shift

2шт.

22

A59108

FORK

- range shift (2nd and 4th)

1шт.

23

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Holds spring in forks 3/16" x 1 1/4", Slotted

4шт.

24

A58492

SPRING

- range shift fork detent lock (1-1/4" free length)

2шт.

25

A65961

CLIP

locking

1шт.

26

A59107

FORK

- range shift (1st and 3rd)

1шт.

27

138-2002

PIN,3/16" x 1 1/4", Coiled

Holds spring in forks 3/16" x 1 1/4", Coiled

2шт.

28

211-14

BALL,9/16" Dia

- detent (., Gr. 3, steel) 9/16" Dia

2шт.

29

A59588

SPRING

- range shift fork detent ball (11/16" free length)

2шт.
