Запчасти Case IH 970 (160) - COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN

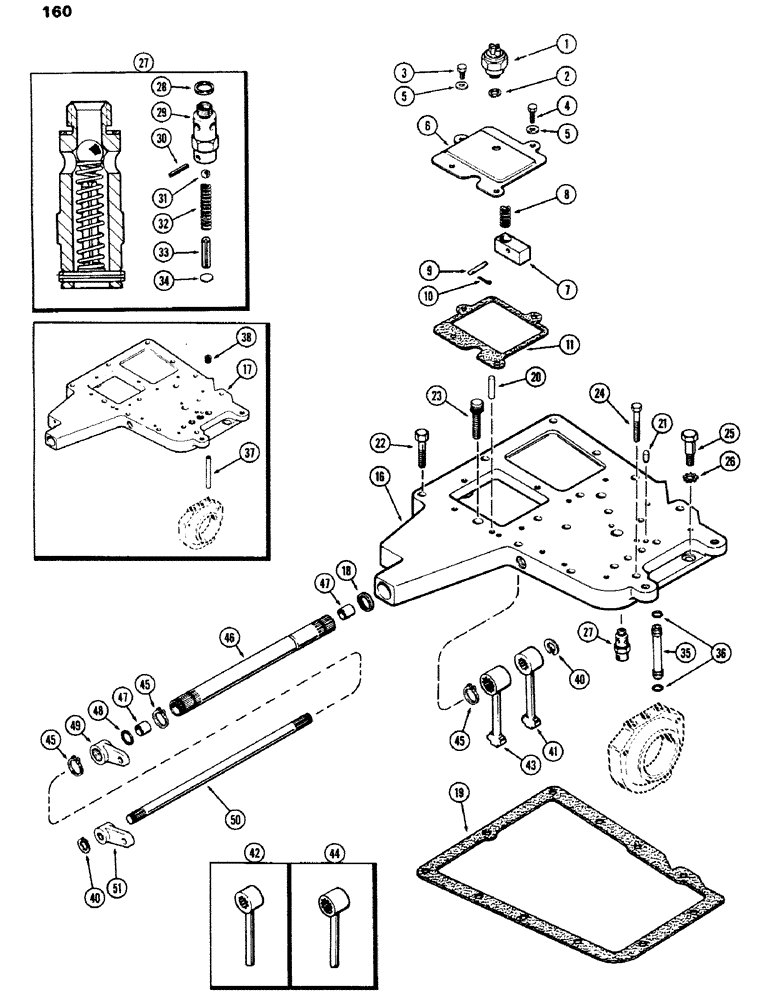

Схема запчастей Case IH 970 - (160) - COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN
38
24
31
18
1
6
40
37
27
40
21
42
11
10
20
45
5
34
46
49
30
45
51
43
17
16
35
9
29
36
26
8
32
22
47
7
27
33
45
3
2
18
50
4
44
23
47
25
28
48
41
5

Артикул

Название

Примечание

Количество

1

A20990

SWITCH

- safety, neutral start

1шт.

2

G49402

SHIM,.010" Thk

Neutral start switch (19/32 x 1 x .010") .010" Thk

1шт.

3

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, Locking, 3/8"-16 x 1", G5, Full Thd

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 5/8" N.C. hex

3шт.

5

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

6

A60832

COVER

ASSY. - gear shift lever and neutral switch, Includes; Ref. 7 - 10

1шт.

7

A60836

LEVER

- neutral switch

1шт.

8

A61705

SPRING

- neutral switch (1-35/64" free length)

1шт.

9

A61030

PIN

- pivot, neutral switch

1шт.

10

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), , Lever to cover 1/16" x 3/8"

1шт.

11

A59115

GASKET

- cover, gear shift lever

1шт.

16

A61682

COVER ASSY. - trans. front top w/seal (1st used trans. serial no. 2338762)

1шт.

17

A58244

SHIELD

COVER ASSY. - trans. front top w/seal to trans., Includes: Ref. 18, Serial Range: -2338762

1шт.

18

A28211

OIL SEAL

- oil, external range shift shaft (1 x 1-1/4 x 1/8")

1шт.

19

A62114

GASKET,0.79mm Thk

- trans. top front cover (Replaces A58941)

1шт.

20

A58950

PIN

- dowel, ext. range shift lever shaft to cover (3/8 x 1-3/8")

1шт.

21

D24005

PIN

- dowel, trans. top front cover to valve body (Replaces A59091) (3/16 x 1/2")

1шт.

22

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

8шт.

23

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT - 1/2 x 2-1/2" N.C. Ferry cap

1шт.

24

113-439

SCREW,Locking, 1/2"-13 x 2 1/2", G5

BOLT - 1/2 x 2-1/2" N.C. hex (nylock insert)

1шт.

25

A60891

STEP BOLT

BOLT - dowel (nylock insert)

1шт.

26

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

27

A60890

VALVE

ASSY. - lube oil relief, Includes: Ref. 28 - 34

1шт.

28

NS

NOT SERVICED

GASKET - relief valve seat (no longer required)

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A60890)

1шт.

30

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

31

211-9

BALL,5/16" Dia

- chrome steel (meter) 5/16" Dia

1шт.

32

A60889

SPRING

- relief valve (1-11/16" free length)

1шт.

33

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

34

195-6

WASHER,#6

- 5/32 x 5/16 x 1/32"

1шт.

35

A61677

TUBE

- oil (1st used trans. ser. no. 2338762)

3шт.

36

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O"RING - (Replaces A18414) (1/2 x 5/8 x 1/16")

6шт.

37

A58102

TUBE - oil to trans., Serial Range: -2338762

3шт.

38

A58050

PLUG

- oil tube, oil distributor cover (w/nylock insert)

3шт.

40

A59594

RING

SNAP RING - retaining, internal range shift shaft

2шт.

41

A61280

LEVER

- range shift (1st and 3rd) (w/14 int. teeth) (1st used trans. ser. no. 2358807)

1шт.

42

A59595

LEVER

- range shift (1st and 3rd) (w/14 int. teeth) to trans., Serial Range: -2358807

1шт.

43

A61281

LEVER

- range shift, 2nd and 4th (w/23 int. teeth) (1st used trans. ser. no. 2358807)

1шт.

44

A58956

LEVER

- range shift (2nd and 4th) (w/23 int. teeth) to trans., Serial Range: -2358807

1шт.

45

B18208

SNAP RING,#100, Ext

range shift lever to shaft #100, Ext

3шт.

46

A58245

SHAFT

ASSY. - external range shift w/bushings, Includes: Ref. 47

1шт.

47

A57709

BUSHING

- external range shift lever shaft

2шт.

48

A58949

O-RING,0.614" ID x 0.754" OD

"O"RING - int. range shift lever shaft (5/8 x 3/4 x 1/16")6

3шт.

49

A64936

LEVER

- range shift (2nd and 4th) (Replaces A60369)

1шт.

50

A59591

SHAFT

- lever, internal range shift

1шт.

51

A64935

LEVER

- range shift (1st and 3rd) (Replaces A60363)

1шт.

Выбрано товаров: 46
