Запчасти Case IH 970 (158) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN

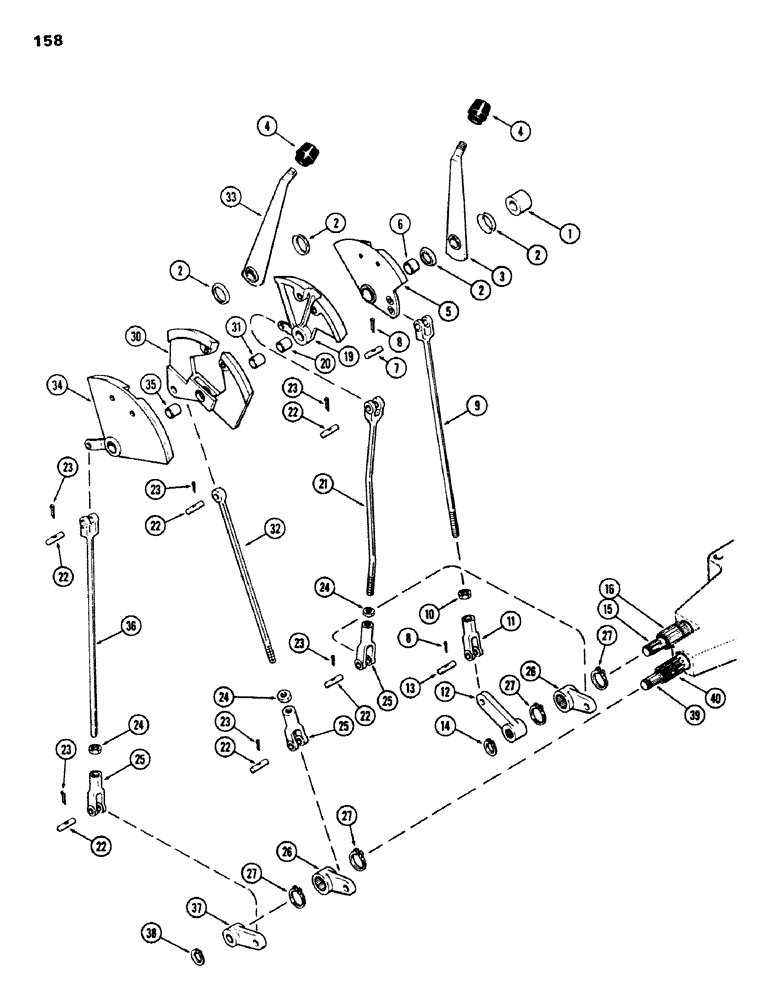

Схема запчастей Case IH 970 - (158) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN
27
22
23
22
23
24
19
8
27
33
6
31
24
22
20
38
15
2
30
35
27
23
14
13
39
10
22
16
2
25
4
8
26
7
1
4
2
32
3
40
2
22
25
9
12
11
23
24
34
36
25
27
21
26
23
22
37
23
5

Артикул

Название

Примечание

Количество

1

A59664

SPACER

- range shift hand lever shaft

1шт.

2

A59662

WASHER

- gear and range shift hand lever

4шт.

3

A59661

LEVER

- hand, range shift

1шт.

4

A62078

KNOB

- gear and range shift hand lever (Replaces A23885)

2шт.

5

A61862

QUADRANT

- range shift hand lever (Replaces A59663), Includes: Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

7

A59258

PIN

- range shift linkage

1шт.

8

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), , clevis pin 3/32" x 1 1/4"

2шт.

9

A59775

ROD

- range shift (17")

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod end (3/8 "N.F.)

1шт.

12

A59666

LEVER

- range shift

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

14

A59594

RING

SNAP RING - retaining, range shift lever

1шт.

15

A59592

SHAFT

- control lever, internal range shift

1шт.

16

A59032

SHAFT

ASSY. - external reverse shift lever w/bushings

1шт.

19

A61874

QUADRANT

- reverse gear shift (Replaces A60371a, Includes: Ref. 20

1шт.

20

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

21

A60358

ROD

- reverse, gear shift

1шт.

22

A59258

PIN

- gear shift linkage

6шт.

23

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), , gear shift linkage pin 3/32" x 1 1/4"

6шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

3шт.

25

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rods (3/8")

3шт.

26

A64936

LEVER

- reverse and (1st and 2nd) (Replaces A60369)

2шт.

27

B18208

SNAP RING,#100, Ext

reverse, 1st - 2nd gear shift #100, Ext

4шт.

30

A61869

QUADRANT

- gear shift (1st and 2nd) (Replaces A60365), Includes; Ref. 31

1шт.

31

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- quadrant

1шт.

32

A60389

ROD

- gear shift (17") (1st and 2nd)

1шт.

33

A60360

LEVER

- gear shift, hand

1шт.

34

A61864

QUADRANT

- gear shift (3rd and 4th) (Replaces A60361), Includes: Ref. 35

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

36

A59775

ROD

- gear shift (3rd and 4th)

1шт.

37

A64935

LEVER

- gear shift (3rd and 4th) (Replaces A60363)

1шт.

38

A59594

RING

- retaining, gear shift lever

1шт.

39

A59591

SHAFT

- control lever, internal gear shift

1шт.

40

A58245

SHAFT

ASSY. - external gear shift lever w/bushings

1шт.

Выбрано товаров: 36
