Запчасти Case IH 970 (156) - GEAR AND RANGE SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN

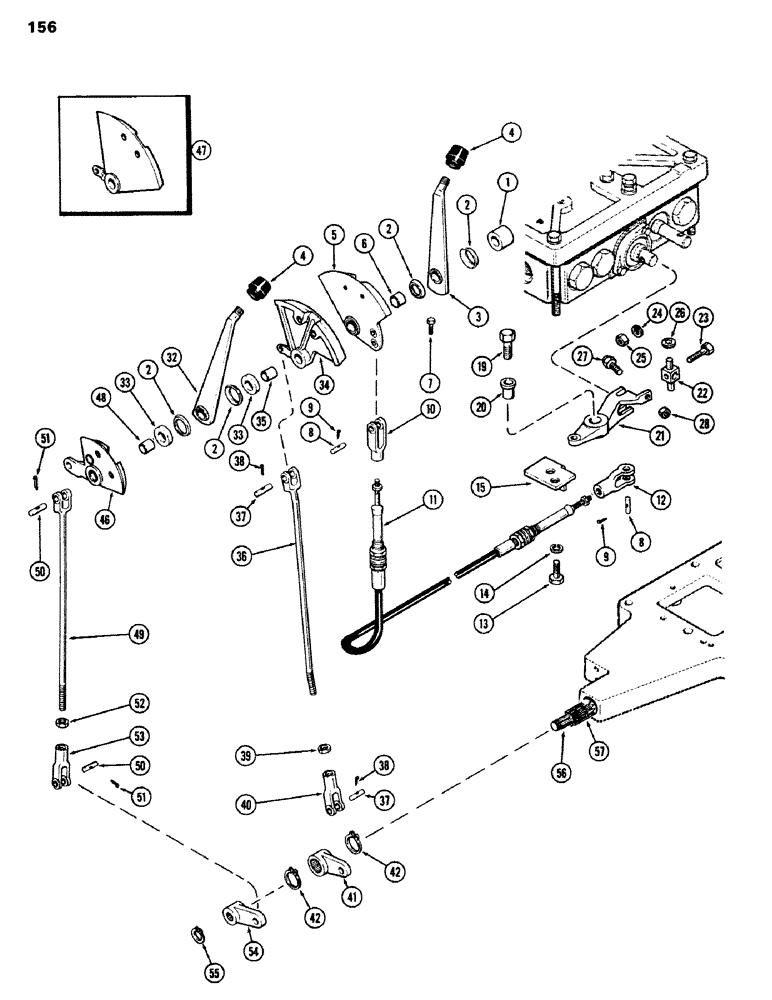

Схема запчастей Case IH 970 - (156) - GEAR AND RANGE SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN
5
38
20
46
42
25
38
32
53
9
4
48
42
9
33
2
8
55
15
4
51
41
34
14
36
6
1
7
11
50
3
51
40
19
22
47
8
27
50
37
52
28
56
2
57
54
23
13
10
2
37
26
12
24
39
49
21

Артикул

Название

Примечание

Количество

1

A59664

SPACER

- power shift hand lever shaft

1шт.

2

A59662

WASHER

- power and range shift hand lever

4шт.

3

A59661

LEVER

- hand, power shift

1шт.

4

A65699

KNOB

- power and range shift hand lever (Replaces A23885 and A62078)

2шт.

5

A61862

QUADRANT

- power shift hand lever (Replaces A59663), Includes: Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

7

A59463

BOLT

- control lever stop

2шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Power shift yoke 3/8" x 1.060"

2шт.

9

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", clevis, Serial Range: pin-yoke

2шт.

10

A60661

YOKE

- power shift cable, upper

1шт.

11

A60660

CABLE

- power shift console control (29")

1шт.

12

A60663

YOKE

- power shift cable, lower

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A60662

BRACKET

- cable, power shift

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- 1/2 x 1-1/4" N.C. hex

1шт.

20

A59772

BUSHING

- power shift spool, operating lever

1шт.

21

A59771

LEVER

- operating, power shift spool

1шт.

22

A59150

LINK

- power shift spool operating

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

26

A59773

RING

- retaining, power shift spool operating link

1шт.

27

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

SCREW - adjusting, power shift spool

1шт.

28

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex, jam

1шт.

32

A60360

LEVER

- hand, range shift

1шт.

33

A60367

SPACER

- range shift quadrant (41/64 x 1-1/4 x 1/4")

2шт.

34

A61872

QUADRANT

- range shift (2nd and 4th) (Replaces A60366), Includes: Ref. 35

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

36

A60359

ROD

- range shift (2nd and 4th)

1шт.

37

A59258

PIN

- range shift linkage

2шт.

38

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

40

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod (3/8")

1шт.

41

A64936

LEVER

- range shift (2nd and 4th) (Replaces A60369)

1шт.

42

B18208

SNAP RING,#100, Ext

range shift lever, 1" dia. shaft #100, Ext

2шт.

46

A64811

QUADRANT

ASSY. - 1st and 3rd (1st used trac. ser. no. 8701503)

1шт.

47

A61867

QUADRANT

- (1st and 3rd) (Replaces A60362) to trac. , Includes: Ref. 48, Serial Range: -8701503

1шт.

48

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

49

A59775

ROD

- gear shift (1st and 3rd)

1шт.

50

A59258

PIN

- gear shift linkage

2шт.

51

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

53

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rod (3/8")

1шт.

54

A60363

LEVER

- gear shift (1st and 3rd)

1шт.

55

A59594

RING

SNAP RING - retaining, gear shift lever

1шт.

56

A59591

SHAFT

- lever, internal gear shift

1шт.

57

A58245

SHAFT

ASSY. - external gear shift w/bushings

1шт.

Выбрано товаров: 48
