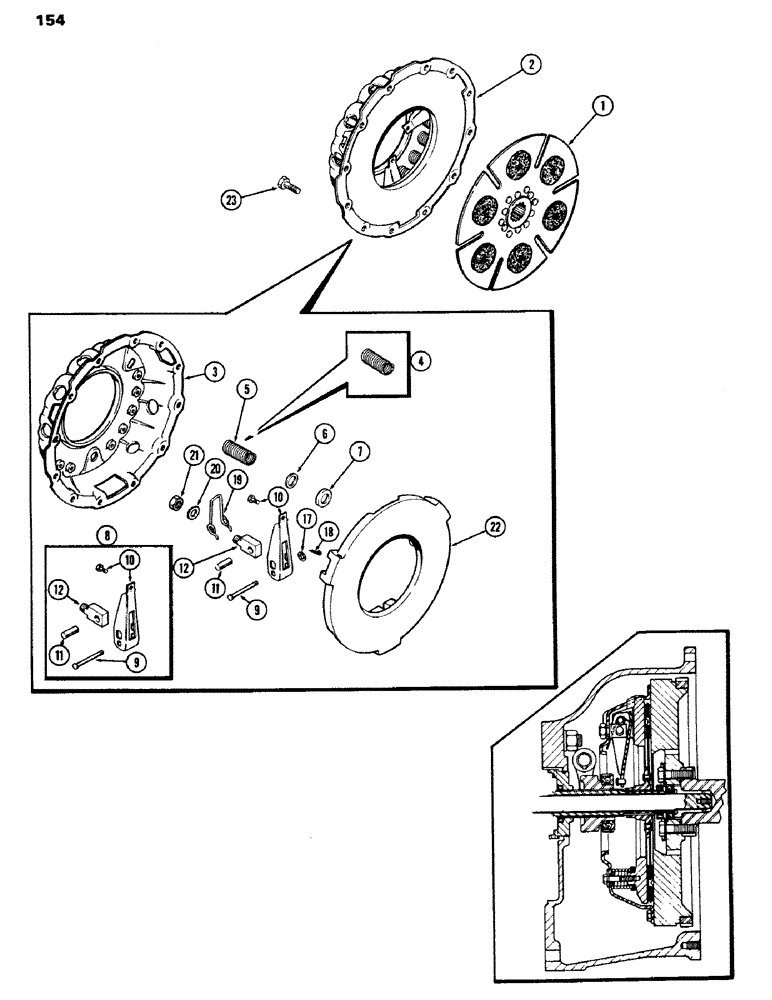

Запчасти Case IH 970 (154) - CLUTCH, MECHANICAL SHIFT (06) - POWER TRAIN

1

A58975

DRIVEN PLATE

PLATE ASSY. - drive clutch w/facings (14")

1шт.

2

A58974

COVER

ASSY. - clutch (14"), Includes: Ref. 3 - 22

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - back, clutch (Order A58974)

1шт.

4

A42189

HOSE

SPRING KIT - clutch pressure, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - clutch compression (Order A42189)

15шт.

6

A42161

WASHER - insulating, clutch pressure spring

15шт.

7

A42160

WASHER - retainer, clutch pressure spring

15шт.

8

A42210

KIT

LEVER KIT - clutch, Includes: Ref. 9 - 12

1шт.

9

D46307

PIN - clevis, clutch

3шт.

10

NSS

NOT SOLD SEPARAT

LEVER ASSY. - clutch release (Order A42210)

3шт.

11

D46306

PIN - clutch pivot lever

3шт.

12

D46305

BLOCK - clutch pivot lever

3шт.

17

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

3шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

19

A25120

SPRING

- clutch torsion lever

3шт.

20

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

21

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex, jam

3шт.

22

A42158

PLATE

- pressure, clutch cover

1шт.

23

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - mounting, clutch plates to flywheel (3/8 -16 N.C. x 1" Ferry cap) (Replaces A31202)

12шт.
