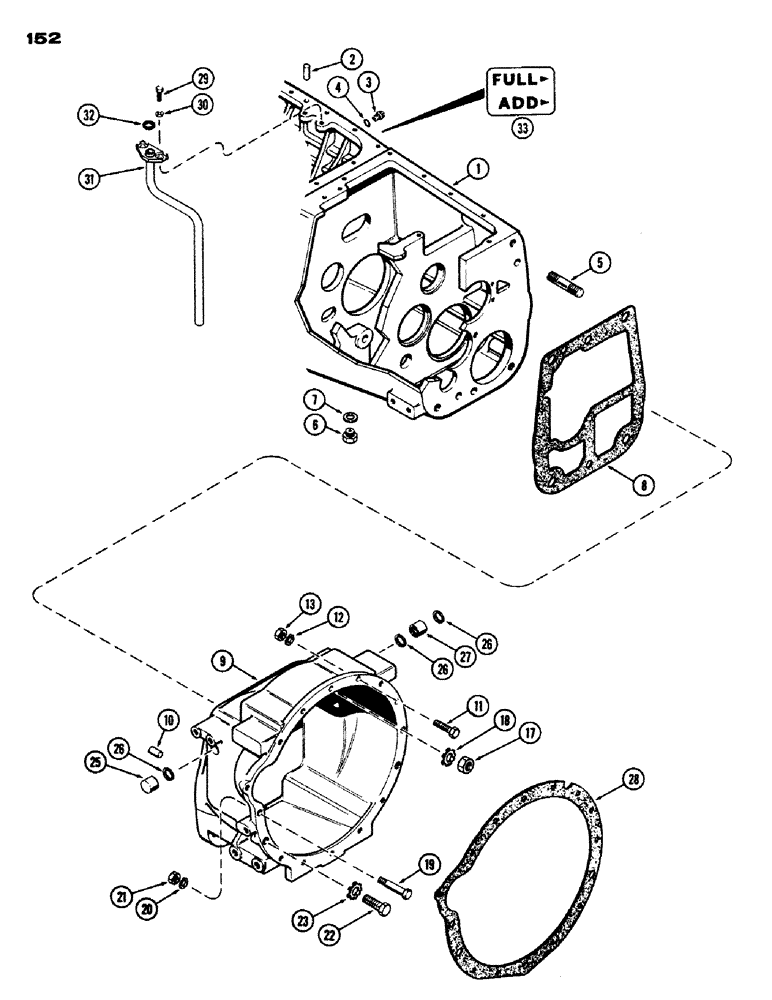

Запчасти Case IH 970 (152) - CLUTCH AND TRANSMISSION HOUSINGS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A58971

HOUSING - transmission

1шт.

2

A7077

DOWEL

PIN - dowel, trans. hsg. to rear top cover (1-3/8 x 1/2")

2шт.

3

A58420

GAUGE

ASSY. - oil sight (glass), w/"O"ring, Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O"RING - sight glass

1шт.

5

A7073

STUD

- trans. housing to clutch housing (7/8" N.F. x 4")

4шт.

6

A14280

PLUG

- drain and fill, trans. housing (2/4")

3шт.

7

A58608

GASKET

- drain plug, trans. (49/64 x 1 x 5/64")

3шт.

8

A58973

GASKET

- clutch hsg. to trans. hsg.

1шт.

9

A62485

HOUSING - clutch

1шт.

10

A28269

PIN

- dowel, clutch hsg. to trans. hsg. (3/4 x 1-1/4")

2шт.

11

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

5шт.

11

113-465

BOLT

- 1/2 x 2" N.C. hex

4шт.

11

113-466

BOLT

- 1/2 x 2-1/4" N.C. hex

2шт.

12

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

11шт.

13

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex

1шт.

17

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

4шт.

18

A57961

LOCK WASHER

- Shakeproof, 7/8" ext.

4шт.

19

A61040

STEP BOLT

BOLT - 1/2 x 3" N.C. hex

1шт.

19

A61041

STEP BOLT

BOLT - dowel, 1/2 x 2-3/16" N.C. hex

1шт.

20

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

2шт.

21

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

22

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

23

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

2шт.

25

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, clutch throwout shaft (closed end)

1шт.

26

A28211

OIL SEAL

- oil, clutch throwout shaft (1 x 1-1/4 x 1/8")

3шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, clutch throwout shaft (open end)

1шт.

28

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

A58371

TUBE

- hyd. fluid return

1шт.

32

A32343

SEAL

- hyd. fluid return tube (47/64 x 1-13/64 x 13/64")

1шт.

33

321-1642

DECAL

- trans. oil level (1st used trac. ser. no. 8656479)

1шт.

A58620

PLUG,Cup, 3/4", Stainless

CUP - (3/4" cup type) transmission case, lower front face dowel hole (8 speed only) (not Illus.)

1шт.
