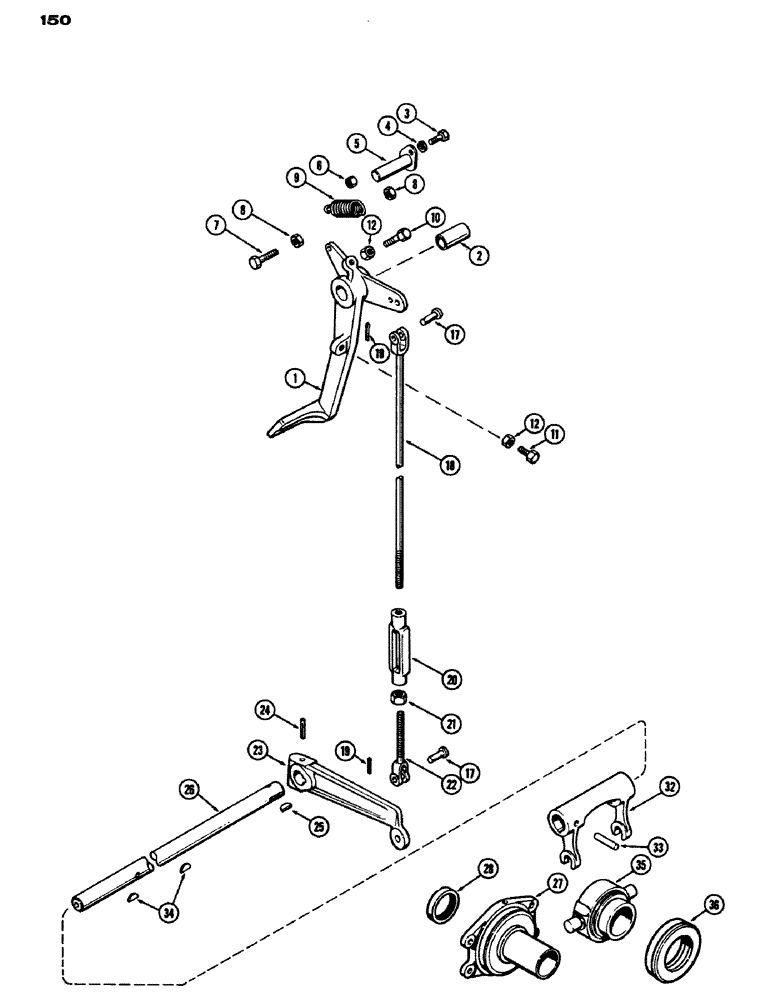

Запчасти Case IH 970 (150) - CLUTCH RELEASE SYSTEM, MECHANICAL SHIFT (06) - POWER TRAIN

1

A60300

PEDAL

ASSY. - foot clutch, Includes: Ref. 2

1шт.

2

A59475

BUSHING

- clutch pedal

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

A60305

SHAFT

- pivot, clutch pedal

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex, jam

2шт.

9

A59470

SPRING

- tension, clutch return

1шт.

10

A59472

BOLT

- stop, clutch pedal

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex, jam

2шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"

2шт.

18

A60312

LINK

- upper, clutch adjusting

1шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

20

A60303

TURNBUCKLE

- (3/8") clutch adjusting links

1шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

22

A60313

LINK

- lower, clutch adjusting

1шт.

23

A59191

LEVER

- foot clutch release

1шт.

24

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, , clutch release lever 5/16" x 2", Slotted

1шт.

25

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Clutch release lever #15, 1/4" x 1"

1шт.

26

A58979

SHAFT - clutch release

1шт.

27

A57698

CARRIER

ASSY. - range drive shaft bearing, Includes: Ref. 28

1шт.

28

A60076

OIL SEAL

- oil (helix lip type) range drive shaft

1шт.

32

A58980

YOKE

- clutch release shaft

1шт.

33

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, , clutch release yoke 5/16" x 1 5/8", Slotted

1шт.

34

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Clutch release shaft #15, 1/4" x 1"

2шт.

35

A57997

CARRIER

ASSY. - clutch throwout bearing, Includes: Ref. 36

1шт.

36

A58982

BALL BEARING,2.5" ID x 4.062" OD x 0.885"

BEARING - clutch release

1шт.
