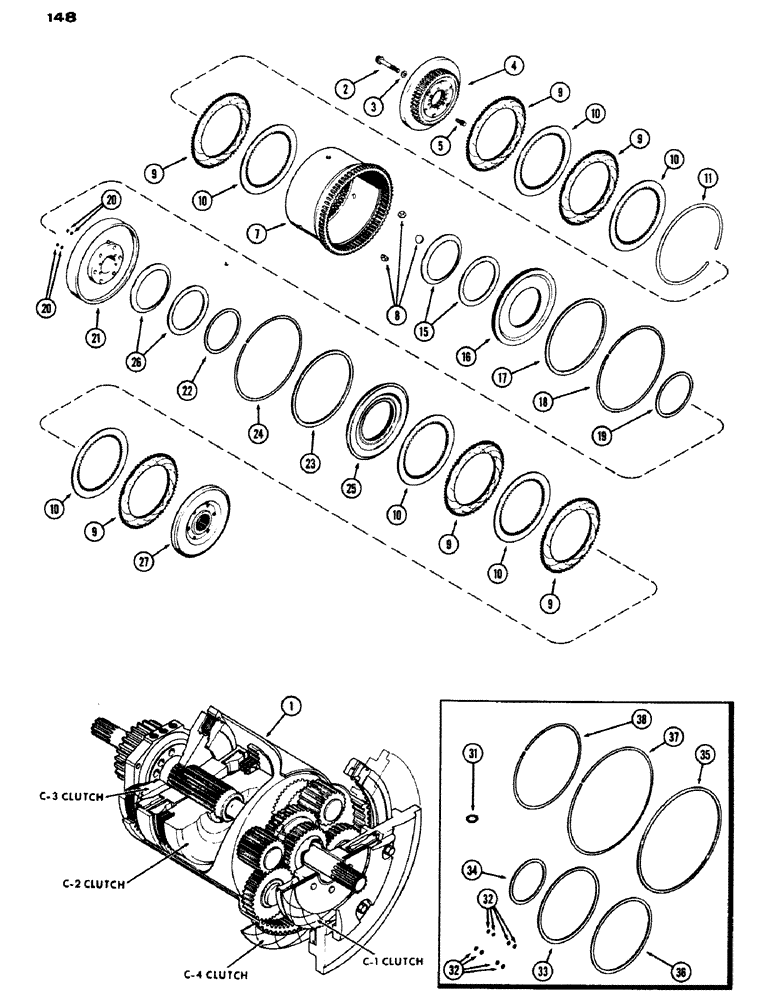

Запчасти Case IH 970 (148) - C-2 AND C-3 CLUTCH PACK, POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift and planetary (Includes all Refs. on Figures 145-149), Includes: Ref. 2 - 27

1шт.

2

A64403

SCREW,Ferry 3/8" - 16 x 2 1/2", Gr 8

- Ferry cap, clutch hubs (3/8 x 2-1/2" N.C.)

6шт.

3

63995

WASHER - clutch hub cap screw (13/32 x 13/16 x 3/32")

6шт.

4

A58386

HUB

- (C-3 clutch)

1шт.

5

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - oil distributor hub to clutch hub (1/4 x 3/4" N.C., 12 pt. flanged) (C-3 clutch)

2шт.

6

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

SNAP RING - retaining plate to ring gear (C-2 and C-3 clutch)

1шт.

7

A58412

GEAR

- ring, planetary

1шт.

8

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

9

A61981

PLATE

- sintered (C-2 and C-3 clutch) (99 external teeth) (Replaces A58090)

6шт.

10

A58089

PLATE

- steel (C-2 and C-3 clutch) (72 internal teeth)

6шт.

15

A58094

SPRING

- return (Belleville) (C-3 clutch), replace all four belleville springs if some are found to be defective.

2шт.

16

A58380

PISTON

- (C-3 clutch)

1шт.

17

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (8" I.D.) (teflon lip) (C-3 clutch) (Also Order 1-A62642 wire) (See A42886 seal kit, Ref. 30)

1шт.

18

A62642

ELECTRICAL WIRE

WIRE - seal lip (25-1/2" long, 22 ga.) (See A42886 seal kit, Ref. 30)

1шт.

19

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (4-1/2" I.D.) (teflon lip) (C-3 clutch) (See A42886 seal kit, Ref.30)

1шт.

20

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O"RING - oil sealing hub (19/64 x 7/16 x 1/16") (C-2 and C-3 clutch) (See A42886 seal kit, Ref. 30)

4шт.

21

A62121

CARRIER

- piston (C-2 and C-3 clutch) (Replaces A58379)

1шт.

22

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (4-1/2" I.D.) (teflon lip) (C-2 clutch) (See A42886 seal kit, Ref. 30)

1шт.

23

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (8" I.D.) (teflon lip) (C-2 clutch) (Also Order 1-A62642 wire) (See A42886 seal kit, Ref. 30)

1шт.

24

A62642

ELECTRICAL WIRE

WIRE - seal lip (25-1/2" long, 22 ga.) (See A42886 seal kit, Ref. 30)

1шт.

25

A58380

PISTON

- (C-2 clutch)

1шт.

26

A58094

SPRING

- return (Belleville) (C-2 clutch), replace all four belleville springs if some are found to be defective.

2шт.

27

A61295

HUB

- (C-2 clutch)

1шт.

30

A42886

SEAL KIT

SEAL KIT - powershift clutch, Includes: Ref. 31 - 38

1шт.

31

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O"RING - oil tube, distributor cover (Replaces A18414)

6шт.

32

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O"RING - oil seal (C-2 and C-3 clutch)

8шт.

33

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (C-1, C-2 and C-3 piston)

3шт.

34

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (C-1, C-2 and C-3 piston)

3шт.

35

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external (C-4 clutch)

1шт.

36

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal (C-4 clutch)

1шт.

37

A62643

ELECTRICAL WIRE

WIRE - seal lip (use w/A58396 seal)

1шт.

38

A62642

ELECTRICAL WIRE

WIRE - seal lip (use w/A58381 seal)

3шт.
