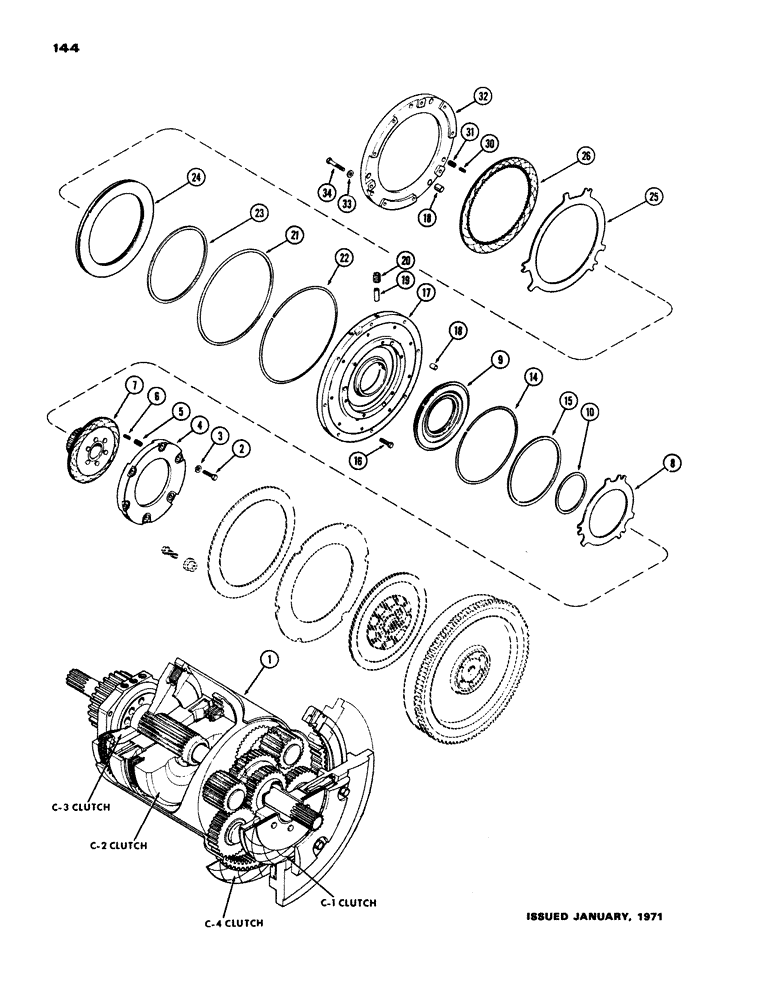

Запчасти Case IH 970 (144) - C-1 AND C-4 CLUTCHES, POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift and planetary (Includes all Refs. on Figures 145-149), Includes: Ref. 2

1шт.

2

113-245

X

BOLT - 3/8 x 1-1/2" N.C. hex. (C-1 clutch)

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- steel, 13/32 x 13/16 x 5/64", Includes: Ref. 4 - 34

6шт.

4

A58390

PLATE

- reaction (C-1 clutch)

1шт.

5

A58391

SPRING

- return, outer (C-1 clutch) (3/4" free length) (17/32" O.D.)

3шт.

6

A60596

SPRING

- return, inner (C-1 clutch) (3/4" free length) (23/64" O.D.)

3шт.

7

A62418

LARGE PLATE

PLATE ASSY. - sun gear and clutch (C-1 clutch) (Replaces A59050) (2,800" Length), A150136 Plate (3.460" Length)

1шт.

8

A58392

BRAKE DISC

PLATE - steel (C-1 clutch) (Order A65524)

1шт.

9

A58380

PISTON

- (C-1 clutch)

1шт.

10

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (4-1/2" I.D.) (teflon lip) (C-1 clutch) (See A42886 seal kit, Figure 149)

1шт.

14

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (8" I.D.) (teflon lip) (C-1 clutch) (Also Order 1-A62642 wire) (See A42886 seal kit, Figure 149)

1шт.

15

A62642

ELECTRICAL WIRE

WIRE - seal lip (25-1/2" long, 22 ga.) (See A42886 seal kit, Figure 149)

1шт.

17

A59051

CARRIER

ASSY. - piston, with pins (C-1 and C-4 clutch), Includes: Ref. 18

1шт.

18

A58059

PIN

- reaction plate (C-1 and C-4 clutch)

6шт.

19

A58049

TUBE

- oil, piston (C-1 and C-4 clutch)

2шт.

20

A58050

PLUG

- piston oil tube (C-1 and C-4 clutch)

2шт.

21

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external (12-1/2" I.D.) (teflon lip) (C-4 clutch) (Also Order 1-A62643 wire) (See A42886 seal kit, Figure 149)

1шт.

22

A62643

ELECTRICAL WIRE

WIRE - seal lip (38-3/4" long, 22 ga.) (See A42886 seal kit, Figure 149)

1шт.

23

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal, piston (9" I.D.) (teflon lip) (C-4 clutch) (See A42886 seal kit, Figure 149)

1шт.

24

A58395

PISTON

- (C-4 clutch)

1шт.

25

A58056

PLATE

- steel (C-4 clutch)

1шт.

26

A58057

PLATE

- sintered (C-4 clutch)

1шт.

30

A60596

SPRING

- return, inner (C-4 clutch) (3/4" free length) (23/64" O.D.)

3шт.

31

A58391

SPRING

- return, outer (C-4 clutch) (3/4" free length) (17/32" O.D.)

3шт.

32

A58394

PLATE

- reaction (C-4 clutch)

1шт.

33

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- steel, 13/32 x 13/16 x 5/64"

9шт.

34

113-244

X

BOLT - 3/8 x 2-1/2" N.C. hex

9шт.
