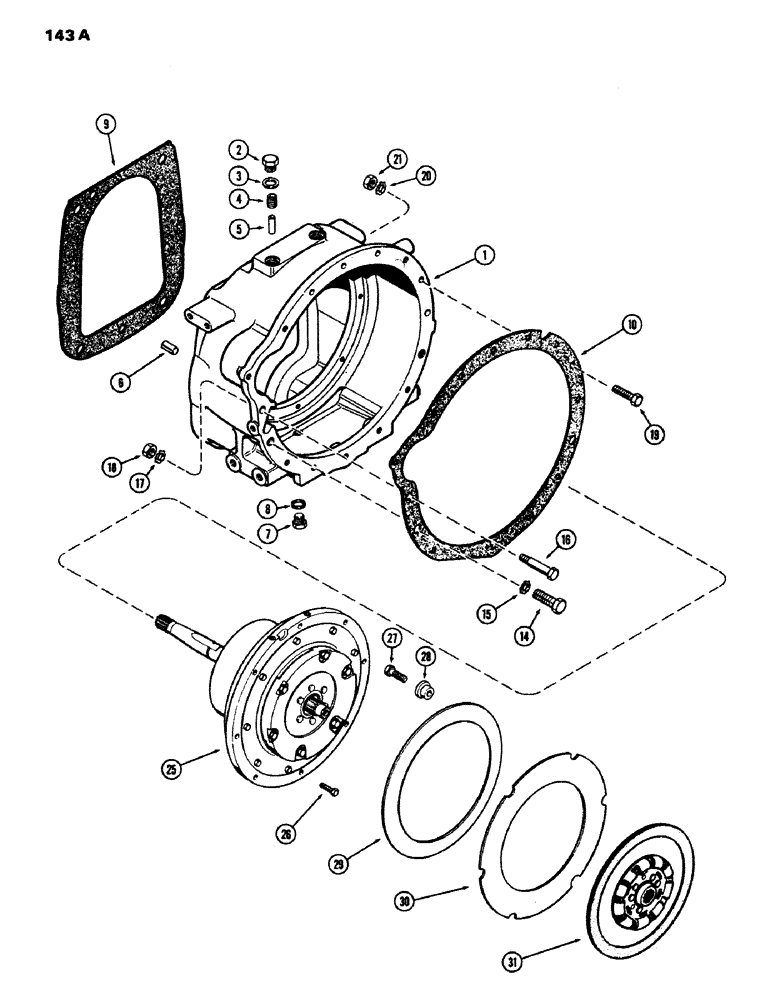

Запчасти Case IH 970 (143A) - CLUTCH HOUSING AND CLUTCH POWER SHIFT (06) - POWER TRAIN

1

A58137

HOUSING - clutch

1шт.

2

214389

PLUG,3/4" - 16 ORB

Assy, Clutch hsg., Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - 1/2 x 11/16 x 3/32"

1шт.

4

A58050

PLUG

- piston oil tube (C1 and C4 clutch)

2шт.

5

A58049

TUBE

- oil, piston (C1 and C4 clutch)

1шт.

6

A28269

PIN

- dowel, clutch hsg. to trans. hsg. (3/4 x 1-1/4")

2шт.

7

A14280

PLUG

- drain, clutch housing

2шт.

8

A58608

GASKET

- drain plug (3/4 x 1 x 5/64")

2шт.

9

A58138

GASKET

- clutch hsg. to transmission hsg.

1шт.

10

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

14

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

15

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

2шт.

16

A61040

STEP BOLT

BOLT - dowel, 1/2 x 3" N.C. hex

1шт.

16

A61041

STEP BOLT

BOLT - dowel, 1/2 x 2-3/16" N.C. hex

1шт.

17

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

2шт.

18

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

19

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

5шт.

19

113-465

BOLT

- 1/2 x 2" N.C. hex

4шт.

19

113-466

BOLT

- 1/2 x 2-1/4" N.C. hex

2шт.

20

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

11шт.

21

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex

1шт.

25

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift and planetary (See Figures 144-149)

1шт.

26

113-245

X

BOLT - 3/8 x 1-1/2" N.C. hex

8шт.

27

113-401

BOLT

- 1/2 x 1-3/4" N.C. hex

6шт.

28

A59133

RETAINER

- clutch spring, torque limited

6шт.

29

A61000

SPRING

- Belleville, torque limited

1шт.

30

A58036

PLATE

- pressure, torque limiter

1шт.

31

A58388

PLATE

ASSY. - 12" driven member, if the driven plate A58388 is replaced it is recommended pressure plate A58036 and belleville spring A61000 also be replaced.

1шт.
