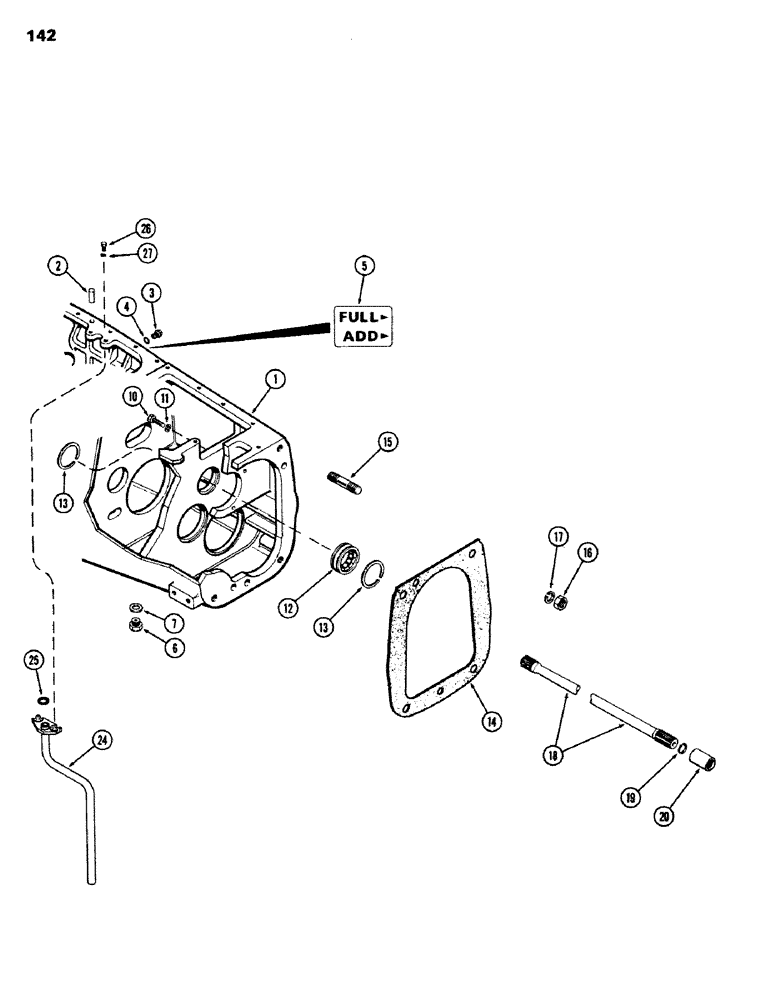

Запчасти Case IH 970 (142) - TRANSMISSION HOUSING, POWER SHIFT (06) - POWER TRAIN

1

A61180

HOUSING

- trans. (1st used trac. ser. no. 8650101) (See Figure 179 for bearing changes)

1шт.

1

A58418

CASE

HOUSING - trans to trac. (See Figure 179 for bearing changes), Serial Range: -8650101

1шт.

2

A7077

DOWEL

PIN - dowel, trans. hsg. to top cover (1/2 x 1-3/8")

2шт.

3

A58420

GAUGE

ASSY. - oil sight (glass), Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O"RING - 5/8 x 13/16 x 3/32"

1шт.

5

321-1642

DECAL

- trans. oil level (1st used trac. ser. no. 8656479)

1шт.

6

A14280

PLUG

- drain, transmission housing

3шт.

7

A58608

GASKET

- drain plug, trans. housing (3//4 x 1 x 5/64")

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - roller, planetary shaft, rear

1шт.

13

A28153

RING

SNAP RING - external, planetary shaft, rear bearing

2шт.

14

A58138

GASKET

- clutch housing to trans. housing

1шт.

15

A7073

STUD

- transmission hsg. (7/8" N.F. x 4")

4шт.

16

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

4шт.

17

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

18

A58414

SHAFT

- drive, rear, P.T.O. (See Figure 223)

1шт.

19

A32441

RING, SNAP

SNAP RING - internal, drive shaft, rear, P.T.O.

1шт.

20

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, rear, P.T.O.

1шт.

24

A58371

TUBE

- hydraulic fluid return

1шт.

25

A32343

SEAL

- hyd. fluid return tube (47/64 x 1-13/64 x 13/64")

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.
