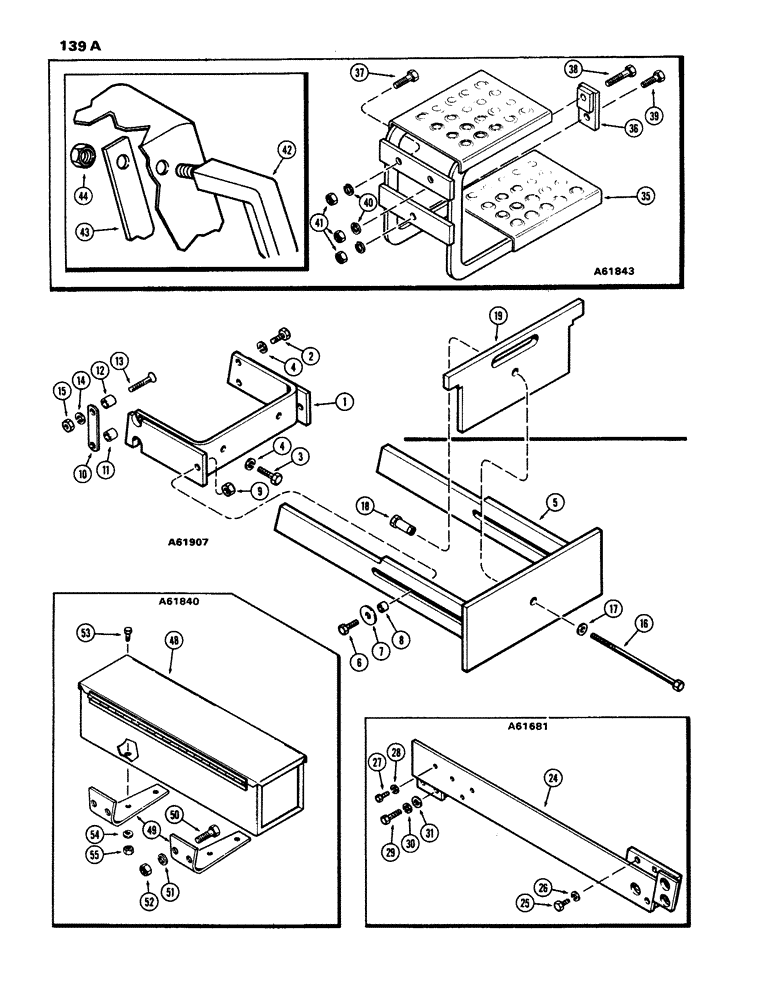

Запчасти Case IH 970 (139A) - SIDE RAIL ATTACHMENT (05) - STEERING

A61097

ADAPTER KIT - front end weight, Includes: Ref. 1 - 18

1шт.

1

A61321

FRAME

- weight adapter

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

3

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

5

A61331

FRAME - weight carrier

1шт.

6

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

7

A61334

WASHER - 17/32 x 1-1/2 x 1/4"

2шт.

8

A61567

SPACER

- frame roller, 13/16 x 1-1/8 x 13/16"

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

A61336

STRAP

- weight frame clamp

2шт.

11

A61567

SPACER

- strap, lower, 13/16 x 1-1/8 x 13/16"

2шт.

12

A61566

SPACER - strap, upper, 13/16 x 1-1/8 x 1-9/16"

2шт.

13

19-1264

PLOW BOLT

BOLT - 3/4 x 4" N.C., plaw hd.

4шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

A61906

HARDWARE KIT - front weight attachment, Includes: Ref. 16 - 18

1шт.

16

A61342

BOLT - 1/2 x 5" N.C. hex. (for 1 - 7 weights)

1шт.

16

A61343

BOLT - 1/2 x 12" N.C. hex. (for 1 - 14 weights)

1шт.

16

A61344

BOLT - 1/2 x 18" N.C. hex. (for 15 - 20 weights)

1шт.

17

A61341

WASHER

- 17/32 x 1-1/2 x 1/4"

1шт.

18

A61338

NUT

- tube, weight bolt

1шт.

19

A61345

WEIGHT - front end (75 lbs. ea.)

1шт.

A61681

SIDE RAIL KIT, Includes: Ref. 24 - 31

1шт.

24

A61346

RAIL - right hand side

1шт.

24

A61347

RAIL - left hand side

1шт.

25

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

195-2097

WASHER,15/16" x 1 3/4" x .083"

- 15/16 x 1-3/4 x 14 ga.

4шт.

A61843

MOUNTING STEP ATTACHMENT, Includes: Ref. 35 - 44

1шт.

35

A61582

STEP - right hand or left hand

1шт.

36

A61585

ADAPTER - mounting step

1шт.

37

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

38

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

1шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex

1шт.

40

92-8

LOCK WASHER,1/2"

4шт.

41

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

42

A60530

HANDLE

- hood and fender

2шт.

43

A59338

PLATE

- handle, fender

1шт.

44

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex

4шт.

A61840

BOX, TOOL

TOOL BOX ATTACHMENT - (side mount), Includes: Ref. 48 - 55

1шт.

48

A59844

BOX, TOOL

BOX ASSY. - tools

1шт.

49

A61568

SUPPORT

- tool box

2шт.

50

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

4шт.

51

92-8

LOCK WASHER,1/2"

4шт.

52

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 7/8" N.C. hex

4шт.

54

92-5

LOCK WASHER,5/16"

4шт.

55

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. hex

4шт.
