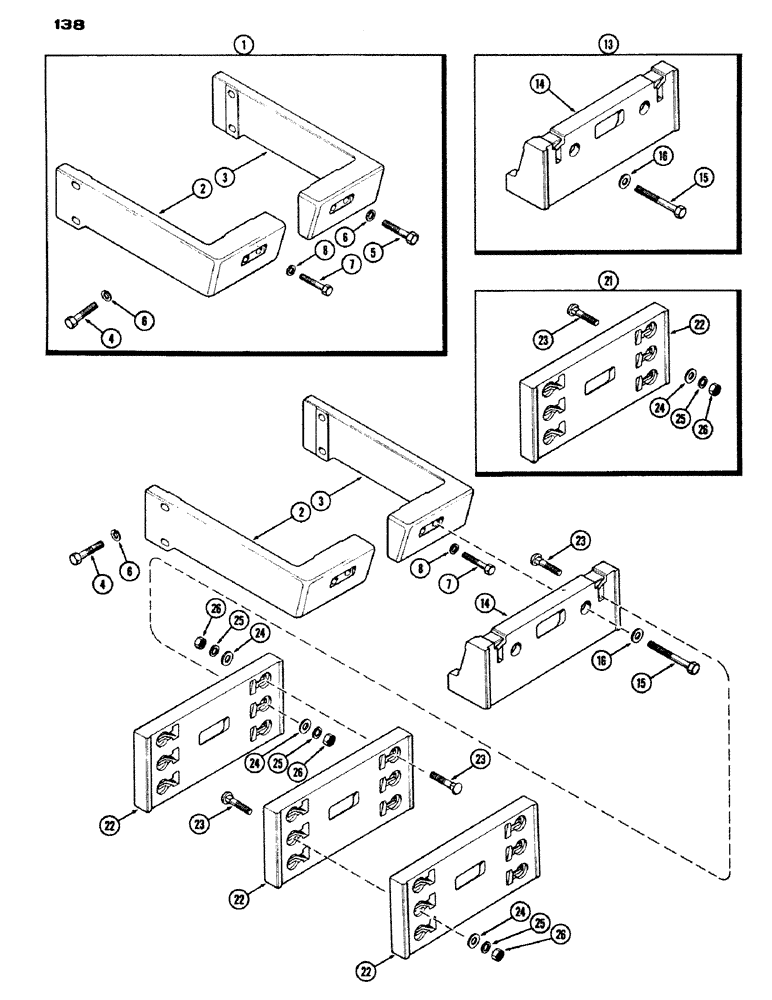

Запчасти Case IH 970 (138) - FRONT END WEIGHTS (05) - STEERING

1

A60536M

WEIGHT KIT - front end wrapper (Machinery Item), Includes: Ref. 2 - 8

1шт.

2

A59352M

WEIGHT - wrapper (R.H.) (Mach. Item)

1шт.

3

A59353M

WEIGHT - wrapper (L.H.) (Mach. Item)

1шт.

4

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

5

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" N.C. hex

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537M

WEIGHT KIT - adapter, front end wrapper (Mach. Item) (used w/A60536 weight kit) (one adapter only per tractor), Includes: Ref. 14 - 16

1шт.

14

A59354M

ADAPTER - wrapper weight (Mach. Item)

1шт.

15

A59351

BOLT

- 3/4 x 7" N.C. hex

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

21

A60538M

WEIGHT KIT - additional, front end wrapper, (used w/A60537 weight kit) (Mach. Item), Includes: Ref. 22 - 26

1шт.

22

A59355M

WEIGHT - additional front end (Mach. Item)

1шт.

23

B90584

BOLT

- 3/4 x 4" N.C. round head, square neck

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
