Запчасти Case IH 970 (134) - FRONT WHEELS (05) - STEERING

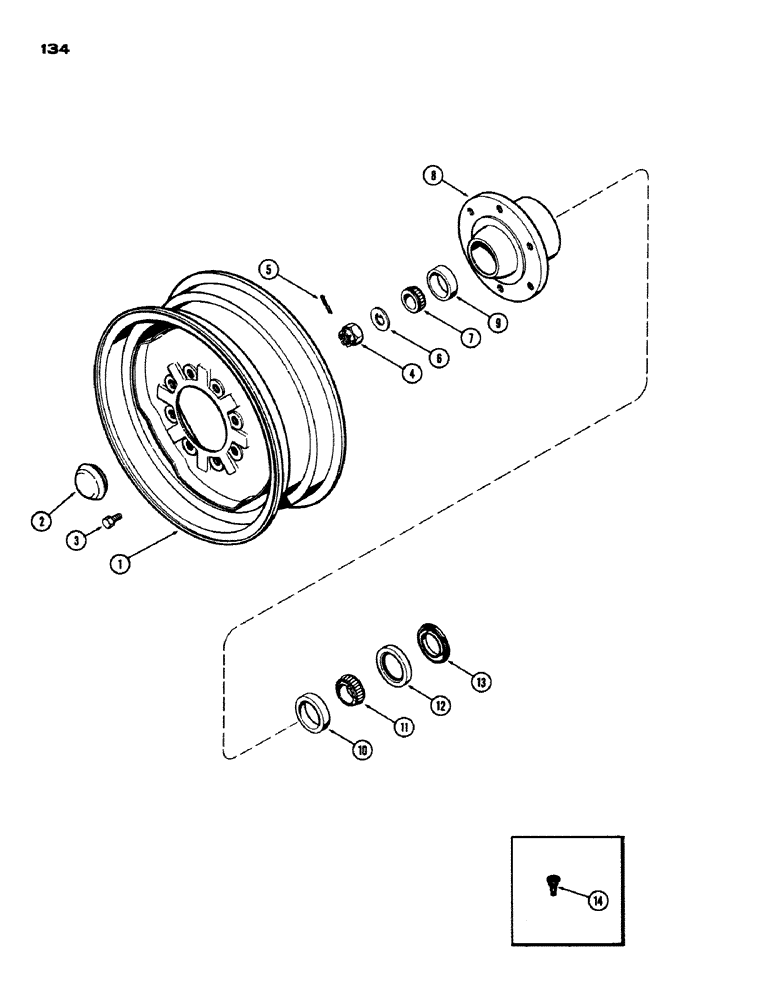

Схема запчастей Case IH 970 - (134) - FRONT WHEELS (05) - STEERING
13
5
12
10
4
6
9
3
2
14
1
11
7
8

Артикул

Название

Примечание

Количество

1

A60015

WHEEL

- front (9.50 x 20) (1-13/16" offset)

2шт.

2

A29425

CAP

- hub, front wheel

2шт.

3

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 x 1-3/32")

16шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex. (1-1/8" N.F. slotted)

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A26789

BEARING WASHER

WASHER - spindle, wheel

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, front wheel

2шт.

8

A57337

HUB ASSY.

- front wheel

2шт.

9

A27631

CUP

- front wheel outer bearing

1шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - front wheel inner bearing

1шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - front wheel inner bearing

2шт.

A57250

OIL SEAL

KIT - oil seal and retainer (Not Illust.), Includes: Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - oil, outer, front wheel (Order A57250)

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - oil retainer, inner (Order A57250)

1шт.

14

A38261

VALVE

- rim, tubeless tire

1шт.

Выбрано товаров: 15
