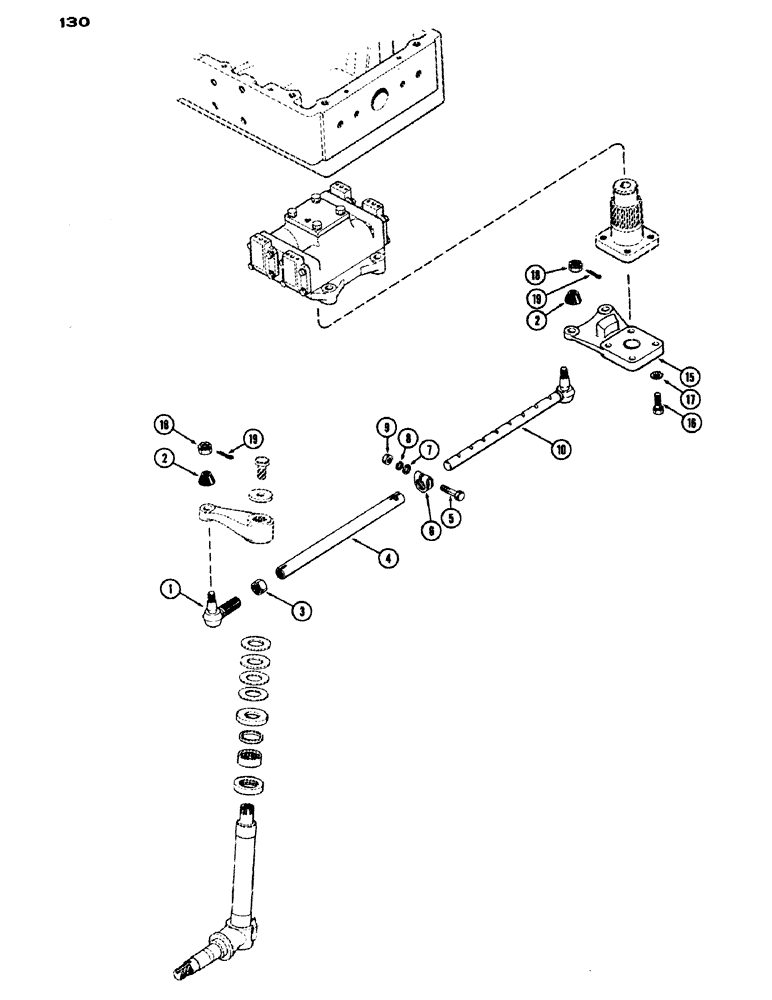

Запчасти Case IH 970 (130) - TIE RODS, 60" TO 88" TREAD (05) - STEERING

1

A44762

ROD

END - drag link (Replaces A41512)

2шт.

2

A41515

SEAL

- drag link end

4шт.

3

A41511

NUT

- jam (1" -16 R.H.thread)

2шт.

4

A59659

TUBE

- drag link, notched (18-3/8" long)

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

6

A41561

CLAMP

- drag link

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

10

A59658

STEERING TIE-ROD

LINK - drag (8 notches)

2шт.

15

A59652

ARM

- center steering

1шт.

16

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

17

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

18

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. sltd.

1шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.
