Запчасти Case IH 970 (128) - TIE RODS, 53" TO 73" TREAD (05) - STEERING

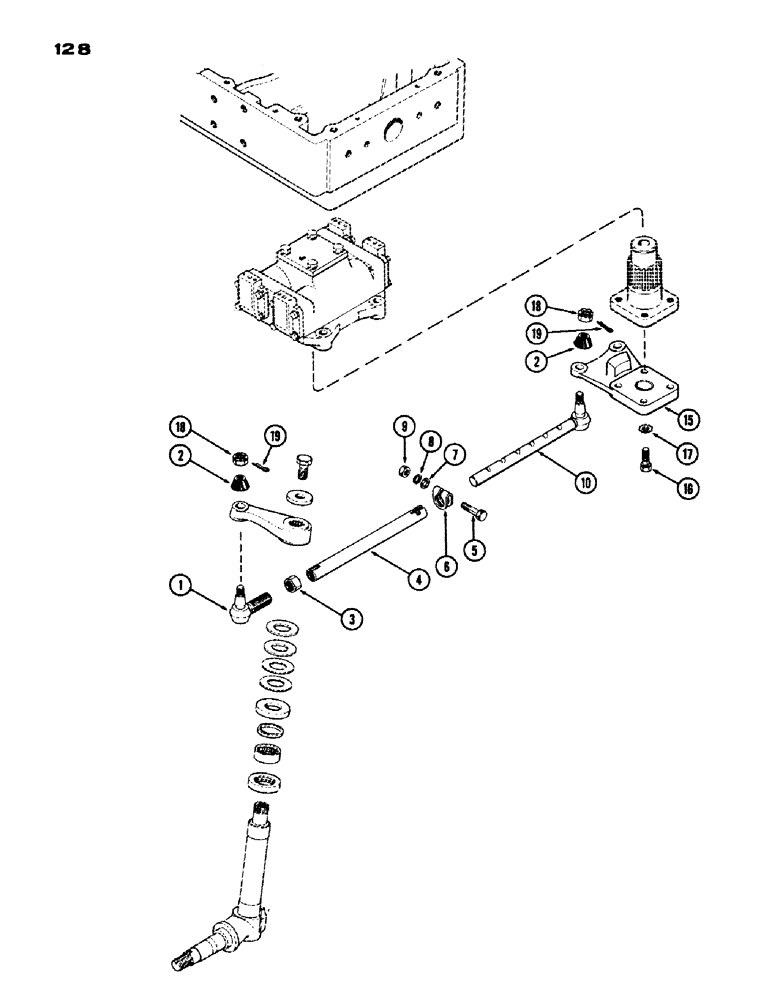

Схема запчастей Case IH 970 - (128) - TIE RODS, 53" TO 73" TREAD (05) - STEERING
19
17
18
5
6
3
7
4
2
16
2
9
15
19
18
10
1
8

Артикул

Название

Примечание

Количество

1

A44762

ROD

END - drag link (Replaces A41512)

2шт.

2

A41515

SEAL

- drag link end

4шт.

3

A41511

NUT

- jam (1" -16, R.H. thread)

2шт.

4

A59657

TUBE

- drag link, notched (14-11/16" long)

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

6

A41561

CLAMP

- drag link

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

10

A59656

ROD

LINK - drag (6 notches)

2шт.

15

A59652

ARM

- center steering

1шт.

16

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

17

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

18

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex. sltd.

4шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

Выбрано товаров: 15
