Запчасти Case IH 970 (122) - A60208 STEERING ACTUATOR (05) - STEERING

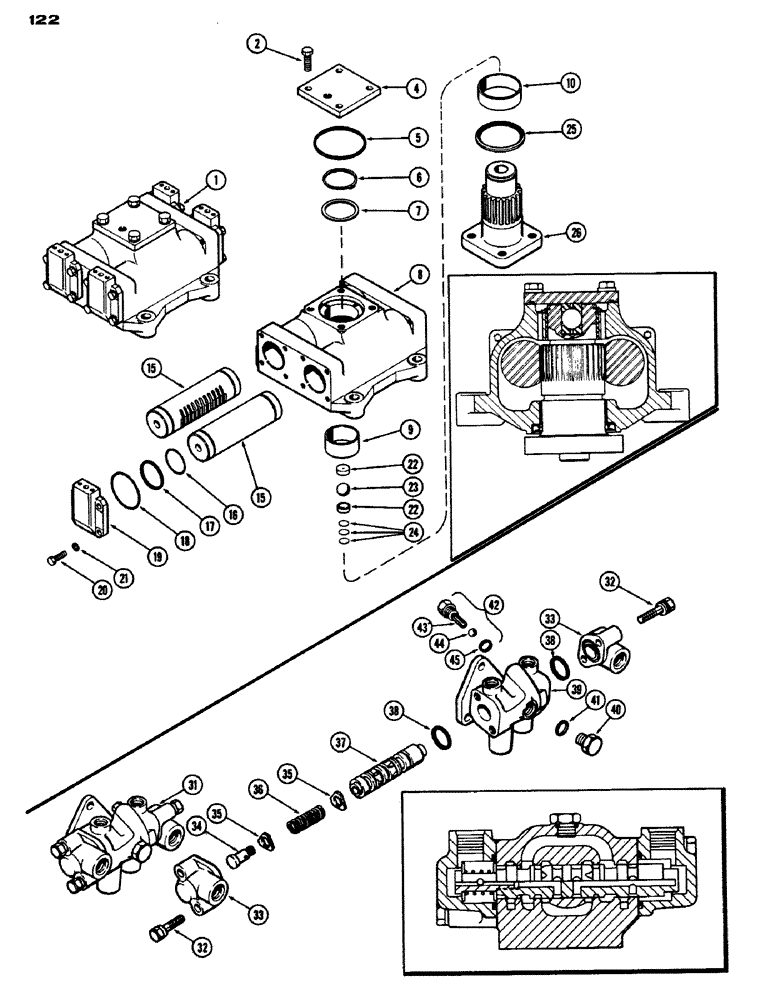

Схема запчастей Case IH 970 - (122) - A60208 STEERING ACTUATOR (05) - STEERING
6
44
35
16
36
1
33
32
24
43
10
2
15
38
8
15
3
9
34
23
41
25
21
7
5
39
33
4
35
19
45
26
20
37
22
42
32
22
18
40
17
38

Артикул

Название

Примечание

Количество

1

A60208

ACTUATOR

ASSY. - steering, Includes: Ref. 2 - 26

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60218

COVER

- steering actuator

1шт.

5

A60219

SEALING RING

"O"RING - 4 x 4-17/64 x 9/64"

1шт.

Part of steering actulator seal kit P/N A42399

1шт.

6

A60216

SNAP RING,#250, Ext

Ring, Snap, , steering actuator #250, Ext

1шт.

7

A60215

WASHER

- thrust

1шт.

8

A60209

HOUSING

ASSY. - steering actuator, Includes: Ref. 9 and 10

1шт.

9

A60210

BUSHING

- steering actuator, top (2-1/2 x 2-11/16 x 1-23/64")

1шт.

10

A60211

BUSHING

- steering actuator, bottom (3-1/4 x 3-7/16 x 1-5/32")

1шт.

15

A59285

PISTON

- steering actuator

2шт.

16

A60212

O-RING

"O"RING - 1-15/16 x 2-1/8 x 3/32"

4шт.

Part of steering actulator seal kit P/N A42399

1шт.

17

A60213

RING

- seal, steering actuator piston

4шт.

Part of steering actulator seal kit P/N A42399

1шт.

18

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O"RING - 2-7/8 x 3-1/8 x 1/8"

4шт.

Part of steering actulator seal kit P/N A42399

1шт.

19

A59533

COVER

- end, steering actuator

4шт.

20

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex

16шт.

21

92-6

LOCK WASHER,3/8"

16шт.

22

A60217

SEAT

- ball, steering actuator

2шт.

23

211-21

BALL

- steel (1" diameter)

1шт.

24

A34849

SHIM,.0105" Thk

Steering actuator .0105" Thk

1шт.

24

A34390

SHIM,.0329" Thk

Steering actuator .0329" Thk

1шт.

24

A34391

SHIM,.0149" Thk

Steering actuator .0149" Thk

1шт.

25

A57658

OIL SEAL

- oil, steering actuator (3-1/4 x 4-1/4 x 3/8")

1шт.

Part of steering actulator seal kit P/N A42399

1шт.

26

A60214

SPINDLE - upper, steering actuator

1шт.

A42399

SEAL

KIT - seal, steering actuator, Includes: Ref. 5, 16, 17, 18 and 25

1шт.

31

A60207

VALVE

ASSY. - steering, Includes: Ref. 32 - 45

1шт.

32

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - 3/8" N.C. thread w/washer, A60207 steering valve

4шт.

33

F19624

CAP

- valve end, A60207 steering

2шт.

34

F19623

SCREW,3/8" - 24 x 15/16"

- centering, valve, A60207 steering

1шт.

35

F19619

WASHER

- centering, valve, A60207 steering

2шт.

36

A42201

SPRING

- centering, valve, A60207 steering

1шт.

37

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A60207), steering

1шт.

38

F21003

O-RING,1.237" ID x 1.443" OD

"O"RING - 1-1/4 x 1-29/64 x 7/64", A60207 steering valve

2шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve (Order A60207), steering

1шт.

40

F83122

PLUG

ASSY. - bleed, with "O"ring, valve body, A60207 steering, Includes: Ref. 41

1шт.

41

F19628

O-RING

"O"RING - 13/32 x 9/16 x 5/64", A60207 steering valve

1шт.

42

F82943

VALVE

KIT - plug, "O"ring, ball and roll pin, A60207 steering valve, Includes: Ref. 43 - 45

1шт.

43

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , A60207 steering valve 1/8" x 15/16", Slotted

1шт.

44

211-7

BALL,1/4" Dia

- steel, A60207 steering valve 1/4" Dia

1шт.

45

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, A60207 steering valve

1шт.

Выбрано товаров: 44
