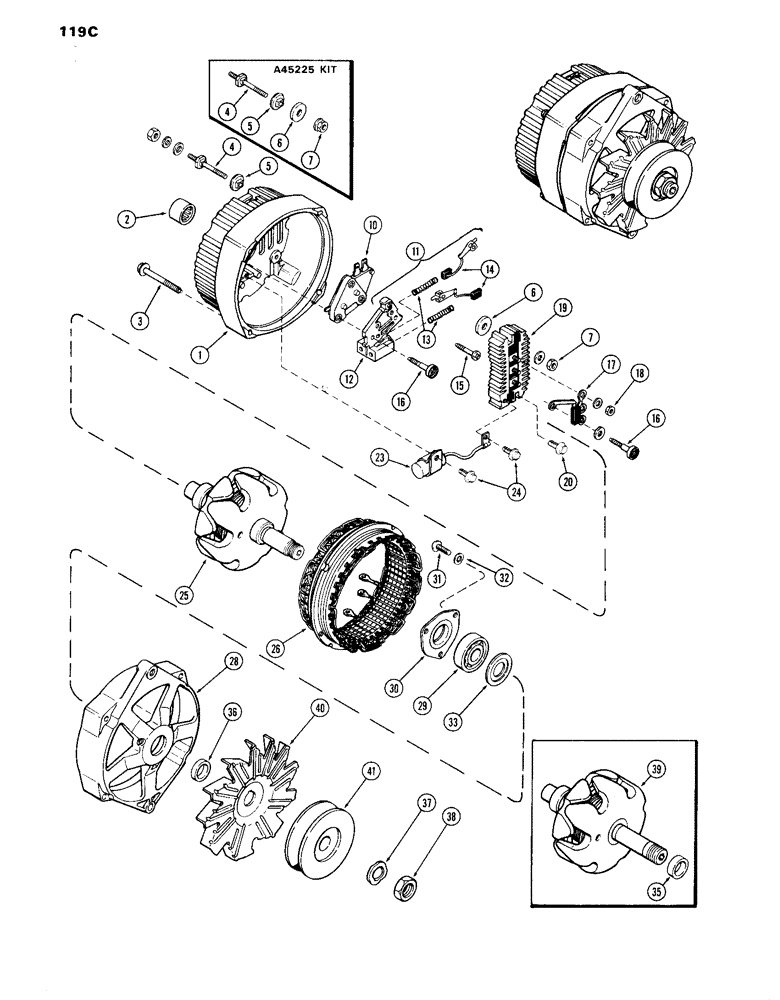

Запчасти Case IH 870 (119C) - A135715 ALTERNATOR, (336B) DIESEL AND (301B) SPARK IGNITION ENGINES, DELCO-REMY (04) - ELECTRICAL SYSTEMS

A135715

ALTERNATOR

ALTERNATOR ASSY. - 61 amp (Delco #1102867) (Order A45202 alternator, A43384 fan & A45231 pulley) (Production Only) (includes ref. 1 - 39)

1шт.

A45202

ALTERNATOR

ALTERNATOR ASSY. - 61 amp (Delco #1100585) (Less pulley & fan) (Repairs Only)

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere,

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A45217

FRAME

FRAME ASSY. - slip ring end (includes ref. 2)

1шт.

2

A45218

BEARING ASSY

BEARING - roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex washer hd. (includes ref. 4 - 7)

4шт.

A45225

MULTIPOLE CONNECTOR

KIT - terminal, battery

1шт.

4

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR - stud

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - terminal

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER ASSY. - (includes brushes) (includes ref. 12, 13 & 14)

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A43678

SPRING

SPRING - brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - commutator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - brush holder, grounded (#8-32 x 1-1/16" phillips)

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER - bridge (Replaces A45220)

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - #8-32 x 1"

1шт.

23

A45226

CAPACITOR

CAPACITOR ASSY. - (includes bracket)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - #8-32 x 3/8"

2шт.

25

A45391

ROTOR

ROTOR ASSY. - (Includes slip rings) (See ref. 39)

1шт.

26

A45215

STATOR

STATOR ASSY. - field

1шт.

28

A45229

FRAME

FRAME - drive end

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" rd. hd.

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

3шт.

33

A45232

WASHER

WASHER - bearing, grease slinger

1шт.

35

A44522

COLLAR

COLLAR - rotor shaft inner, 43/64 x 29/32 x 23/64" (Used w/A45214 rotor) (See ref. 39)

1шт.

36

A72047

COLLAR

COLLAR - rotor shaft outer, 43/64 x 7/8 x 13/64"

1шт.

37

R16171

SPRING WASHER

WASHER - lock

1шт.

38

A25546

NUT

NUT - pulley & fan mounting

1шт.

39

A45214

ROTOR

ROTOR ASSY. - (w/o slip rings) (Order A45391)

1шт.

40

A43384

FAN

FAN - alternator ventilating

1шт.

41

A45231

PULLEY

PULLEY - drive, single groove, 3.221 +/- .025 diameter hub OD, 1.12 hub ID, after plating .669/.6720"

1шт.
