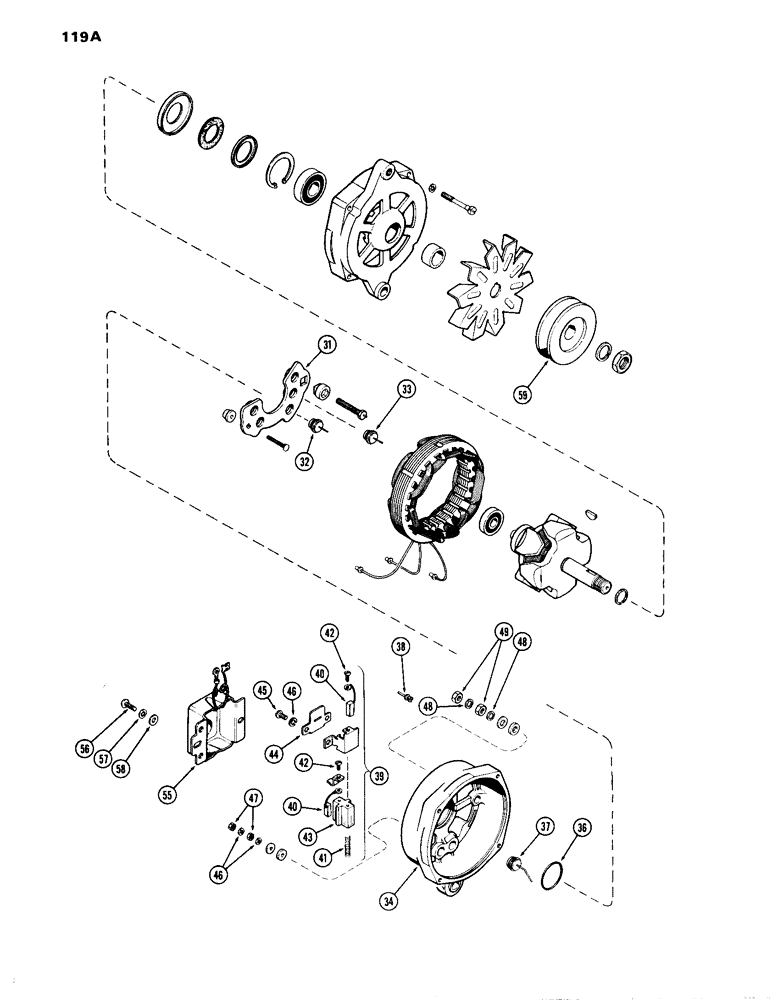

Запчасти Case IH 870 (119A) - A137183 ALTERNATOR, (336B) DIESEL AND (301B) SPARK IGNITION ENGINES, PRESTOLITE (04) - ELECTRICAL SYSTEMS

A45237

ALTERNATOR

ASSY. - (Continued from Page 119) (includes ref. 31 - 34 and 36 - 49)

1шт.

31

A44349

PLATE ASSY.

HEAT SINK - diode (Replaces A42265) (includes ref. 32 & 33)

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive

3шт.

33

NSS

NOT SOLD SEPARAT

KIT - output diode (Matched set of 2)

1шт.

34

A42442

COVER

HEAD ASSY. - slip ring end (Order 1-A45321 & 1-A45323) (includes ref. 36, 37 & 38)

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Replaces A41071) (Set of 4)

3шт.

38

A42266

KIT

- plugs (Set of 10)

1шт.

39

A43952

HOLDER

ASSY. - brush (Replaces A42495) (includes ref. 40 - 43)

1шт.

40

A41063

BRUSH, COMMUTATOR

KIT - brush, armature (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - machine (#10-24 x 3/8")

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

- (#10 N.F. hex, jam)

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

- (1/4" -28 hex)

2шт.

55

A44543

REGULATOR

ASSY. - voltage (Replaces A42098)

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - machine, regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A42267

DRIVE

PULLEY - drive, alternator

1шт.
