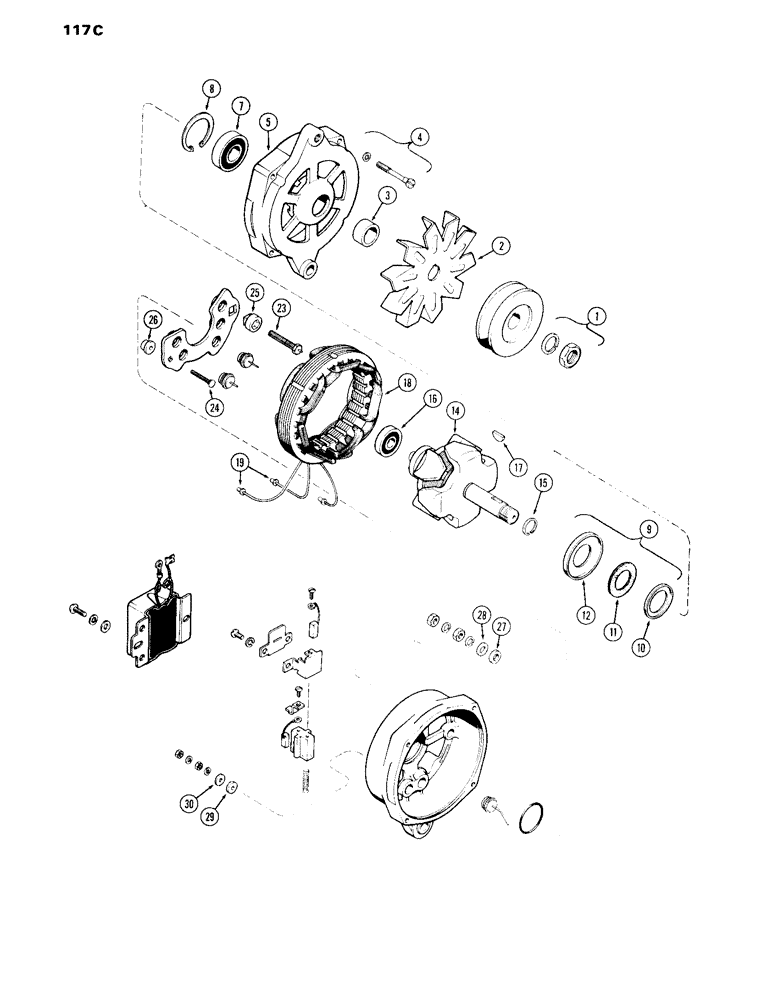

Запчасти Case IH 870 (117C) - A45304 ALTERNATOR, (336B) DIESEL AND (301B) SPARK IGNITIONS, PRESTOLITE (04) - ELECTRICAL SYSTEMS

A45304

ALTERNATOR

ALTERNATOR ASSY. - (Eltra #ALH-5321S) (Less pulley and regulator) (Repairs only) (Replaces A42444 & A45237) (includes ref. 1 - 30)

1шт.

103801A1R

REMAN-ALTERNATOR

Reman For New PN A45304

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere,

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A40581

KIT

KIT - nut & washer, rotor shaft

1шт.

2

A41066

FAN

FAN - ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41094

BOLT

KIT - bolt, thru (Set of 4 w/washers)

1шт.

5

A44361

COVER

HEAD ASSY. - drive end (Replaces A42441) (includes ref. 7 - 12)

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

KIT - retainer (includes ref. 10, 11 & 12)

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

14

A45323

ROTOR

ROTOR ASSY. - alternator (includes ref. 15 & 16)

1шт.

15

A25626

RING

RING - snap, rotor

1шт.

16

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft (sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42271

STATOR

STATOR ASSY. - alternator

1шт.

19

A41065

KIT

KIT - eyelet, wire end (Set of 6) (includes ref. 23 - 30)

1шт.

A41080

KIT

KIT - stud, terminal

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.
