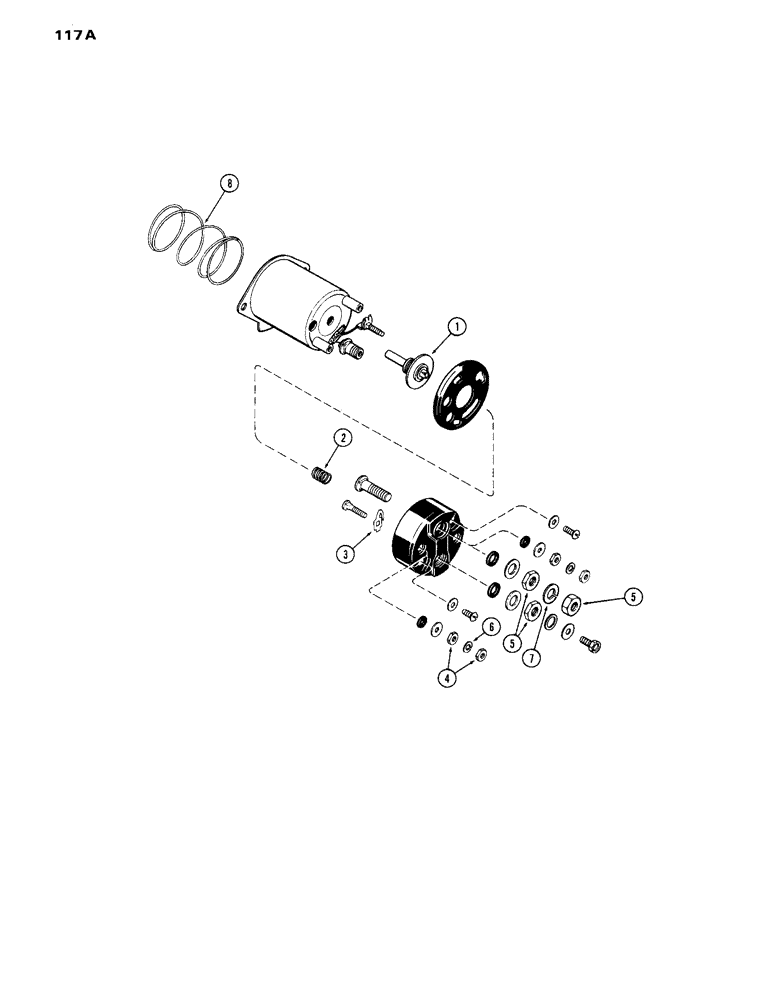

Запчасти Case IH 870 (117A) - G44891 SOLENOID, (301B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

G44891

SOLENOID

ASSY. - (Delco #1114356) (includes ref. 1 - 8)

1шт.

1

A42061

SWITCH

CONTACT ASSY.

1шт.

2

A42059

SPRING

- return, contact

1шт.

3

A42060

HALF BLADE

BLADE - contact

1шт.

4

129-16

NUT,#8-32

Terminal #8-32

4шт.

5

R15015

X

NUT - terminal, 3/8" N.C. hex (Order 129-143)

3шт.

6

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

A40221

SPRING

- plunger return

1шт.
