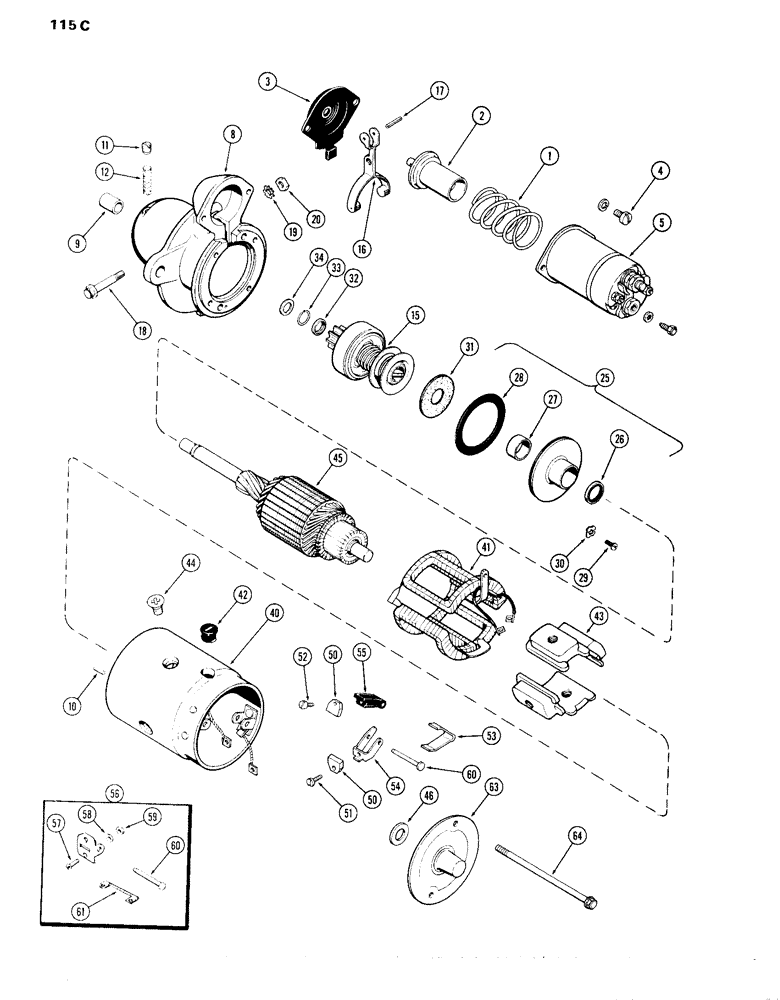

Запчасти Case IH 870 (115C) - A59671 STARTER, (301B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A59671
MOTOR
STARTER ASSY. - (Delco - Remy #1108426) (includes ref. 1 - 64)
1шт.
1
A40221
SPRING
- plunger
1шт.
2
A40218
PLUNGER
- solenoid
1шт.
3
A25410
BOOT
- solenoid
1шт.
4
173-201
SCREW,Rnd Hd, 1/4" - 20 x 1/2"
BOLT - solenoid mounting
2шт.
5
G44891
SOLENOID
SWITCH ASSY. - solenoid (See Figure 115C)
1шт.
8
A42288
HOUSING ASSY. - drive (includes ref. 9 - 12)
1шт.
9
A25387
BEARING
BUSHING - housing (15/32 x 5/8 x 13/16")
1шт.
10
R15041
PIN - dowel
1шт.
11
221-1041
PLUG
- oil wick hole
1шт.
12
R15023
WICK
- oil
1шт.
15
A41871
DRIVE
ASSY. - starter
1шт.
16
A40220
LEVER
- shifter
1шт.
17
138-93
LOCK PIN,3/16" x 13/16", Slotted
PIN, , shift lever to plunger 3/16" x 13/16", Slotted
1шт.
18
A40520
BOLT
- lever pivot
1шт.
19
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Stud 5/16"
2шт.
20
425-145
JAM NUT,Jam, 5/16"-18, G5
Stud Jam, 5/16"-18, G5
1шт.
25
A25549
PLATE
ASSY. - center bearing (includes ref. 26, 27 & 28)
1шт.
26
A25409
SEAL
SEAL - oil
1шт.
27
A41933
BUSHING
- center bearing
1шт.
28
NSS
NOT SOLD SEPARAT
GASKET - center bearing
1шт.
29
174-95
SCREW,Sl Rd Hd, #10 - 32 x 3/8"
- center bearing mounting
4шт.
30
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
31
R15043
WASHER
- center bearing to drive housing
1шт.
32
R15049
COLLAR
- pinion stop
1шт.
33
R15048
RING
- snap, collar retaining
1шт.
34
A25385
WASHER
COLLAR - thrust, pinion stop
1шт.
40
NSS
NOT SOLD SEPARAT
BODY - frame (Order A59671)
1шт.
41
A41345
COIL ASSY.
- field
1шт.
42
A41935
GROMMET
- field terminal
1шт.
43
A40747
SHOE - pole
4шт.
44
A42127
SCREW,3/8" - 24 x 0.20"
- pole shoes
8шт.
45
A41343
ARMATURE
1шт.
46
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
- brake, commutator end
1шт.
50
A42289
BRUSH ASSY.
BRUSH - starter
4шт.
51
182-510
SCREW,Sl Pan Hd, #8 - 32 x 1/2"
- brush attaching, ground
2шт.
52
187-322
SELF-TAP SCREW,Slotted Pan Hd, #8 x 5/8"
SCREW - brush attaching, insulated
2шт.
53
A25359
SPRING
- brush
2шт.
54
A40217
HOLDER
- brush, ground
2шт.
55
R15027
HOLDER
- insulated brush
2шт.
56
A25379
KIT
- brush support replacement (includes ref. 57 - 61)
2шт.
57
173-212
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
- support mounting
4шт.
58
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
59
129-17
NUT,Hex, #10 - 24
NUT - support
4шт.
60
R15035
PIN
- support
2шт.
61
A42494
ELECTRICAL WIRE
LEAD - brush ground
2шт.
63
A25302
FUNNEL
FRAME ASSY. - commutator end
1шт.
64
A41342
BOLT
- thru
2шт.
Выбрано товаров: 48
