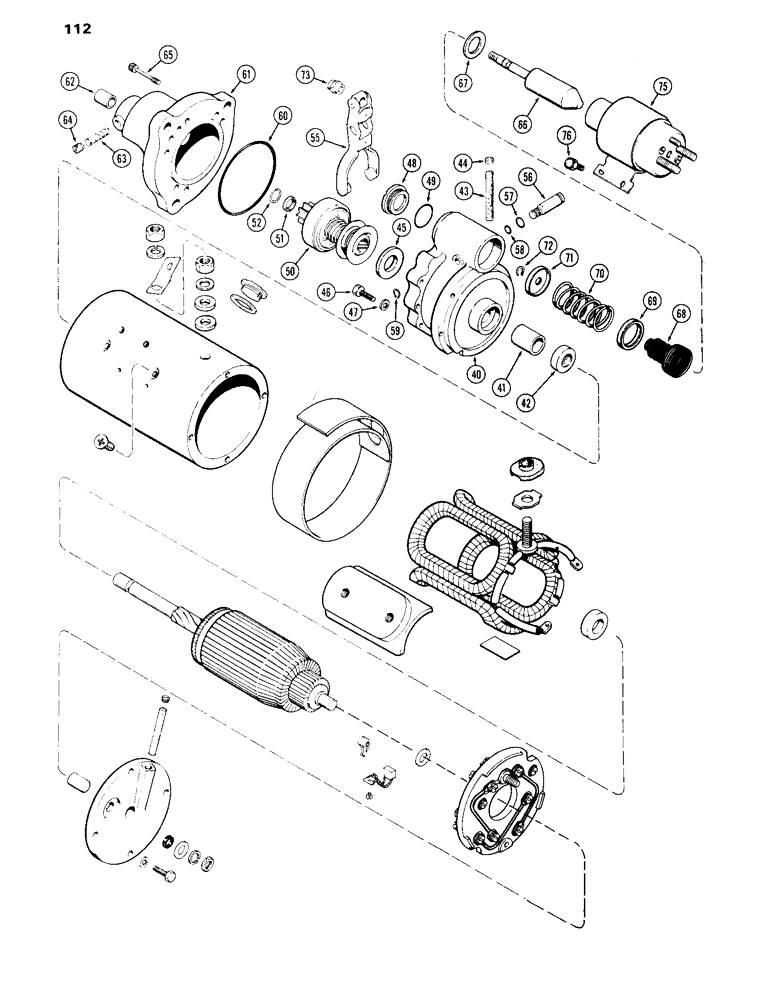

Запчасти Case IH 870 (112) - A64907 STARTER, (336B) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 8727973 (04) - ELECTRICAL SYSTEMS

A64907

ELECTRIC MOTOR

STARTER ASSY. - (Continued from Page 111) (includes ref. 40 - 76)

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

40

A43859

HOUSING

HOUSING ASSY. - shift lever (includes ref. 41 - 45)

1шт.

41

A40944

BUSHING

BUSHING - 3/4 x 7/8 x 3/4"

1шт.

42

A25407

OIL SEAL

SEAL - oil, 3/4 x 1-3/8 x 13/32"

1шт.

43

A41417

WICK

WICK - oil

1шт.

44

221-1849

PLUG

PLUG - 1/8" hex. sckt. hd., pipe

1шт.

45

R15043

WASHER

WASHER - brake, 25/32 x 2 x 3/32"

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing attaching Hex, 1/4"-28 x 1", G5

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

48

R21587

PLUG

PLUG - inspection, lever housing

1шт.

49

A41924

GASKET

GASKET - plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

50

A42331

DRIVE

DRIVE ASSY. - clutch

1шт.

51

R15049

COLLAR

COLLAR - pinion stop

1шт.

52

R15048

RING

RING - retainer, pinion stop

1шт.

55

A43852

LEVER

SHIFT LEVER ASSY.

1шт.

56

A43851

SHAFT

SHAFT - shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - 23/64 x 33/64 x 1/16"

1шт.

58

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - 15/64 x 25/64 x 1/16"

1шт.

59

G46146

SNAP RING,#37, Ext

RING, snap, , shift lever attaching pin #37, Ext

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

"O" RING - lever housing to drive housing

1шт.

61

A43858

HOUSING

HOUSING ASSY. - drive (includes ref. 62, 63 & 64)

1шт.

62

A40868

BUSHING

BUSHING - 9/16 x 3/4 x 3/4"

1шт.

63

R15023

WICK

WICK - oil

1шт.

64

221-1849

PLUG

PLUG - 1/8" hex sckt. hd., pipe

1шт.

65

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - drive hsg. (1/4 x 7/8" N.F. sckt. hd. cap)

6шт.

66

A43857

PLUNGER

PLUNGER ASSY.

1шт.

67

A41922

WASHER

WASHER - 53/64 x 1-3/8 x 1/32"

1шт.

68

A42308

BOOT

BOOT - plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, w/1-13/64" hole

1шт.

70

A41242

SPRING

SPRING - shift lever, 1-3/8" O.D. x 2-25/32" long

1шт.

71

A43419

SEAT

RETAINER - spring, w/13/32" hole

1шт.

72

G46146

SNAP RING,#37, Ext

RING, snap, , plunger spring retainer #37, Ext

1шт.

73

A43856

NUT

NUT - plunger rod guide adjusting

1шт.

75

A43846

SOLENOID

SOLENOID ASSY. - (See Figure 116)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - 1/4 x 23/64" N.C. hex

4шт.
