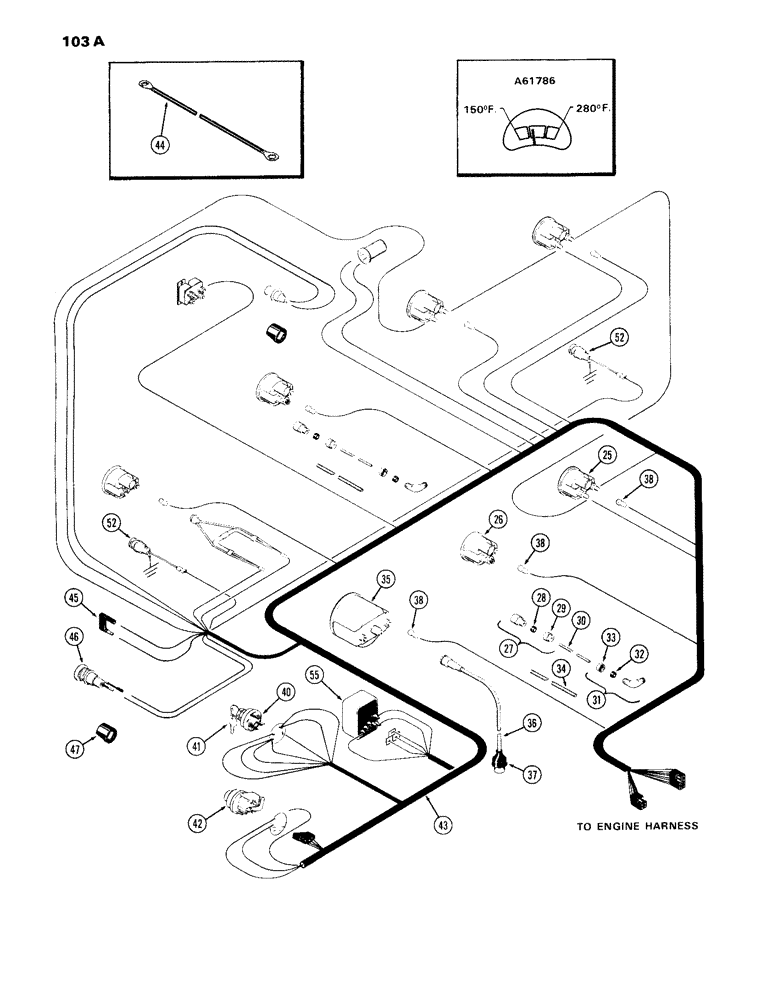

Запчасти Case IH 870 (103A) - INSTRUMENTS AND WIRING, (301B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

25

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature (Replaces A59683)

1шт.

26

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

27

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - (1/8" tube x 1/8" P.T.) (includes ref. 28 & 29)

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

29

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

30

A59685

TUBE

- transmission pressure gauge

1шт.

31

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg. (1/8" tube x 1/8" P.T.) (includes ref. 32 & 33)

1шт.

32

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

33

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

34

A59686

LOOM

- transmission pressure gauge tube

1шт.

35

A62648

ELECTRICAL GAUGE

TACHOMETER ASSY.

1шт.

36

A59692

CABLE

- tachometer drive

1шт.

37

A24523

KIT

- repair, tachometer cable

1шт.

38

A14553

BULB

- gauges

3шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

ASSY. - starting (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SWITCH - light (See Figure 130)

2шт.

43

A135869

HARNESS

- inst. panel wire (Used w/turn signals)

1шт.

43

A65987

HARNESS

- instrument panel wire (Used w/o turn signal) (1st used eng. ser. no. 2529467)

1шт.

43

A59705

HARNESS

- instrument panel wire (Used w/o turn signal) (used prior to eng. ser. no. 2529467)

1шт.

44

A60882

STRAP

- ground, instrument panel

1шт.

45

A61504

DIODE

LEAD DIODE - 180 deg. connection

1шт.

46

A61505

LAMP

- oil filter warning

1шт.

47

A62677

GUARD

SHROUD - oil filter warning lamp

1шт.

52

A77188

LAMP

ASSY. - right & left turn indicator

2шт.

A44797

BULB

- lamp (green)

1шт.

A66892

ELECTRICAL WIRE

WIRE - signal lamp ground

2шт.

55

A77184

SWITCH

- comb. dual-rate flasher & turn signal (See Figure 100)

1шт.
