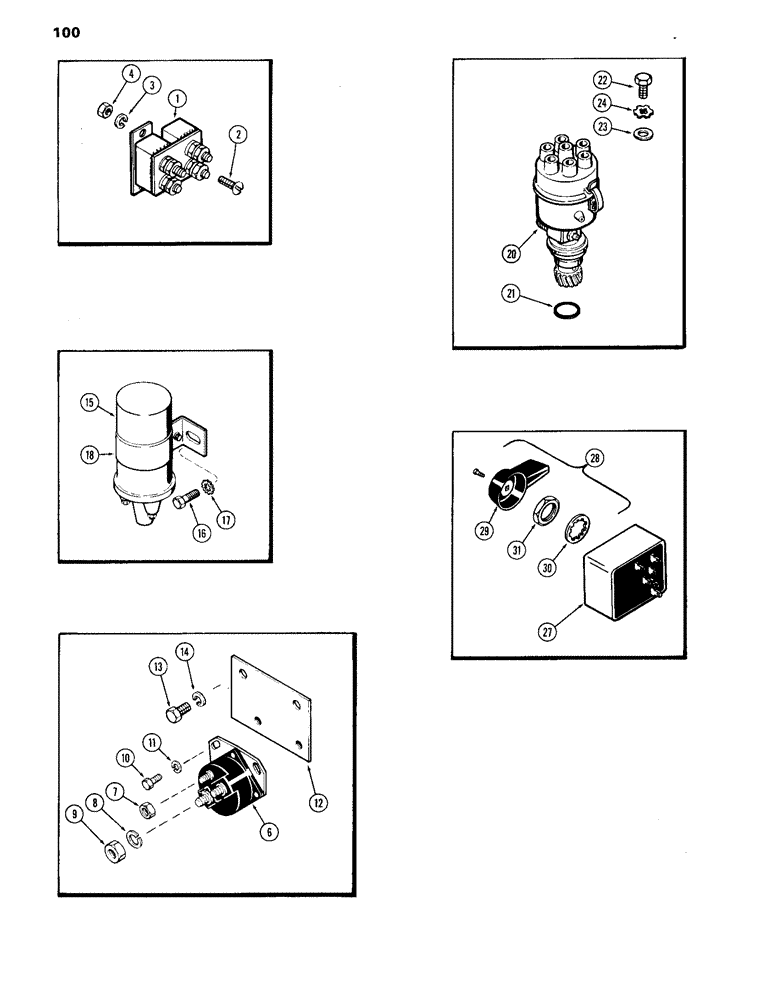

Запчасти Case IH 870 (100) - ELECTRICAL EQUIPMENT MOUNTING, (336B) DIESEL AND (301B) SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A59704

BREAKER

- circuit

1шт.

2

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- (#8 x 3/8" N.C. rd. hd.)

2шт.

3

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

4

129-16

NUT,#8-32

2шт.

6

A39079

SOLENOID

- manifold heater

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex (#10-32 Keps)

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

A60880

PLATE - heater solenoid to engine block

1шт.

13

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

A40778

COIL

- 6 volt (Spark Ignition)

1шт.

16

173-252

SCREW,Sl Rnd Hd, 5/16" - 18 x 5/8"

- machine (5/16 x 5/8" rd. hd.)

2шт.

17

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

18

G46106

BRACKET

CLAMP - coil

1шт.

20

A58810

DISTRIBUTOR - (See Figure 120)

1шт.

21

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor (1-1/8 x 1-3/8 x 1/8")

1шт.

22

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

23

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

24

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - (3/8" int./ext. teeth Shakeproof)

2шт.

27

A77184

SWITCH

- comb. dual-rate flasher & turn signal

1шт.

28

A77185

KIT

PACKAGE - flasher & turn signal switch handle (includes ref. 29, 30 & 31)

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW - #5-40 x 3/8" pan hd. sems

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - Shakeproof, 3/4" int.

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - 3/4" N.F. hex

1шт.
