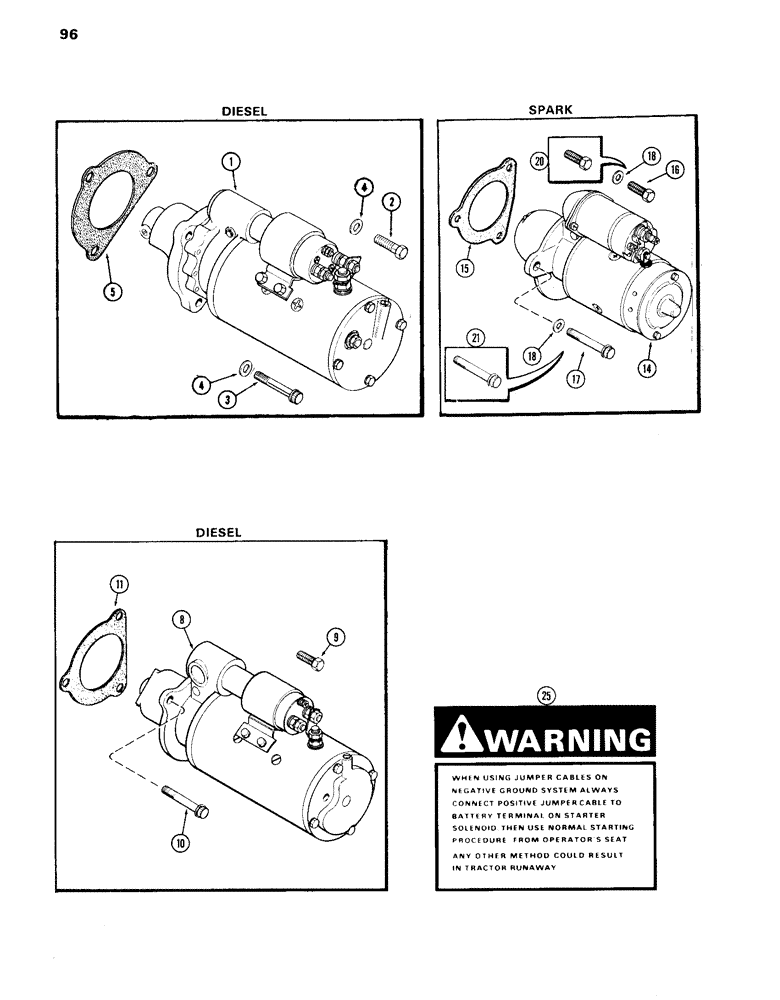

Запчасти Case IH 870 (096) - STARTER MOUNTING, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A64907

ELECTRIC MOTOR

STARTER MOTOR - (1st used trac. ser. no. 8696753) (See Figure 112)

1шт.

1

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

13-2415

BOLT - 1/2 x 1-3/4" N.C. hex, Jaylock

2шт.

3

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - cap (1/2 x 3-1/4" N.C. Ferry head)

1шт.

4

L30674

WASHER

WASHER - (1/2 x 1 x 1/8")

3шт.

5

A27933

GASKET

GASKET - starter motor (w/Power Shift only)

1шт.

8

A59217

STARTER MOTOR

STARTER MOTOR - (Used prior to trac. ser. no. 8696753) (See Figures 114 & 115A) (Order 1-A64907, 2-113-483, 1-166-94 & 3-L30674)

1шт.

9

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW - (1/2 x 1-3/4" N.C. hex, Nylock)

2шт.

10

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - cap (1/2 x 3" N.C. Ferry head)

1шт.

11

A27933

GASKET

GASKET - starter motor (w/Power Shift only)

1шт.

14

A59671

MOTOR

STARTER MOTOR - (Spark) (See Figure 115C), ignition engine

1шт.

15

A27933

GASKET

GASKET - starter motor (Power Shift), spark ignition engine

1шт.

16

13-2415

BOLT - 1/2 x 1-1/2" N.C. hex, Jaylock (1st used trac. ser. no. 8696753), spark ignition engine

2шт.

17

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - cap (1/2 x 3-1/4" N.C. Ferry head) (1st used trac. ser. no. 8696753), spark ignition engine

1шт.

18

L30674

WASHER

WASHER - (1/2 x 1 x 1/8") (1st used trac. ser. no. 8696753), spark ignition engine

3шт.

20

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - (1/2 x 1-3/4" N.C. hex, Nylock) (Used prior to trac. ser. no. 8696753), spark ignition engine

2шт.

21

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - cap (1/2 x 3" N.C. Ferry head) (Used prior to trac. ser. no. 8696753), spark ignition engine

1шт.

25

321-2788

DECAL

DECAL - warning, spark ignition engine

1шт.
