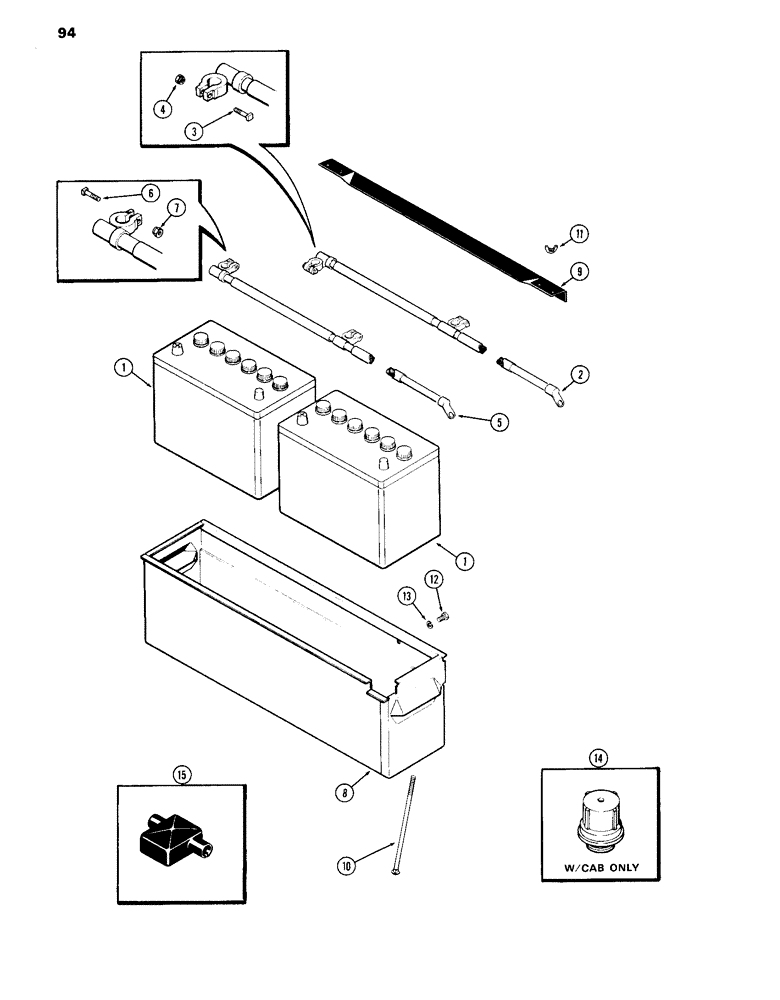

Запчасти Case IH 870 (094) - BATTERY, CABLES, BATTERY BOX, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt

2шт.

2

A59728

CABLE

ASSY. - battery, negative (ground) (includes ref. 3 & 4)

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C., sq. hd.

2шт.

4

129-516

NUT

- 5/16" N.C. hex, w/shoulder

2шт.

5

A65817

CABLE

ASSY. - battery, positive (Replaces A62141) (includes ref. 6 & 7)

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

1шт.

7

129-516

NUT

- 5/16" N.C. hex w/shoulder

1шт.

8

A62137

BOX

- battery

1шт.

9

A59173

CLAMP

- battery hold down

1шт.

10

11-5160

BOLT

- battery hold down

2шт.

11

G49020

NUT

- (5/16" N.C. wiring)

2шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

A60553

CAP

- battery, non-spill vent

12шт.

15

A139372

CAP

- battery (Use on 2 middle terminals)

1шт.
