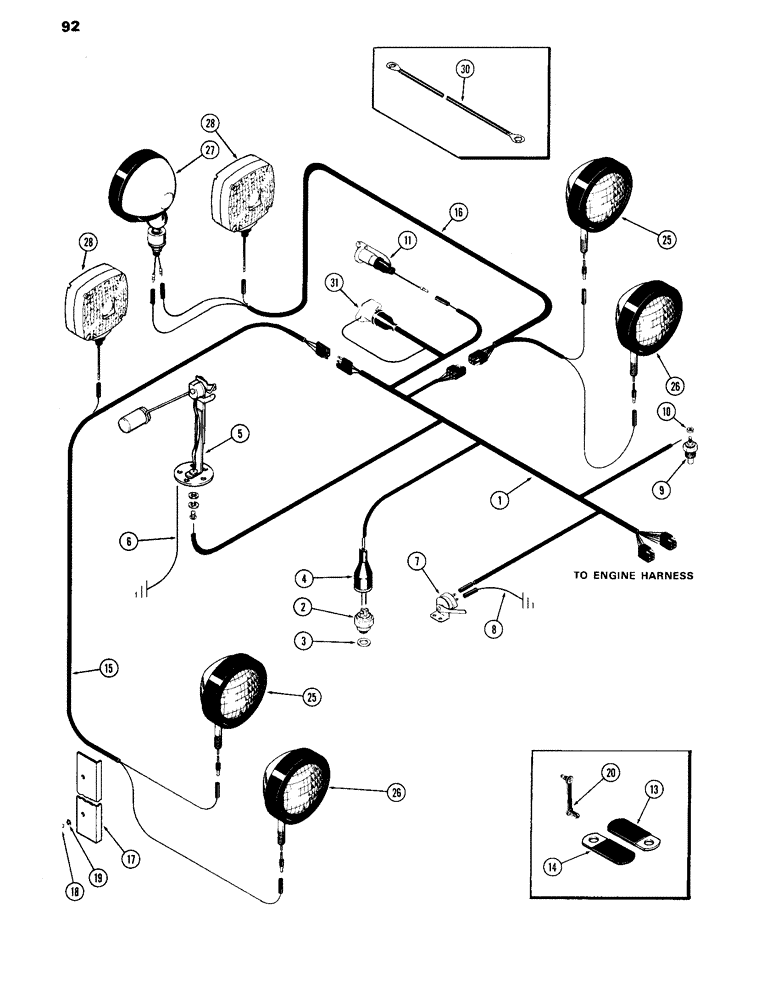

Запчасти Case IH 870 (092) - ELECTRICAL EQUIPMENT AND WIRING, (336B) DIESEL ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A66899

HARNESS

- trans. wire (Used w/turn signals and 7 point auxiliary outlet)

1шт.

1

A62413

HARNESS

- trans. wire (Used w/o turn signals or 7 point auxiliary outlet)

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

G49401

SHIM,.005" Thk

Neutral start switch (Mechanical shift) .005" Thk

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch (Mechanical Shift) .010" Thk

1шт.

4

A61028

BOOT

- neutral start switch

1шт.

5

A62092

UNIT

- sending, fuel

1шт.

6

A59710

ELECTRICAL WIRE

WIRE - ground, fuel gauge sender

1шт.

7

A33977

SWITCH

- warning, hand brake

1шт.

8

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

9

A21462

SENDER UNIT

UNIT - sending, transmission temperature

1шт.

10

129-661

NUT

- (#10 N.F. hex, brass)

1шт.

11

NSS

NOT SOLD SEPARAT

SOCKET - auxiliary outlet (See Figure 130)

1шт.

13

A37179

CLIP

- transmission sending wire

1шт.

14

A22880

CLIP

- trans. wire harness & fuel sending unit

1шт.

15

A66910

HARNESS - fender wire, R.H. (Used w/turn signals)

1шт.

15

A62412

HARNESS

- fender wire, R.H. (Used w/o turn signals)

1шт.

16

A66917

HARNESS

- fender wire, L.H. (Used w/turn signal)

1шт.

16

A59709

HARNESS

- fender wire, L.H. (Used w/o turn signal)

1шт.

17

A59720

SHIELD - fender wire harness, L.H. (for 12" fender) (26-13/16" long)

1шт.

17

A59721

SHIELD - fender wire harness, R.H. (for 12" fender) (26-13/16" long)

1шт.

17

A60892

SHIELD - fender wire harness, R.H. & L.H. (for 15" fender) (14-9/32" long)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

A62547

CLAMP

- self retaining, fender light wires

7шт.

25

NSS

NOT SOLD SEPARAT

LAMP - head (See Figure 126)

2шт.

26

NSS

NOT SOLD SEPARAT

LAMP - cultivator (See Figure 128)

2шт.

27

A59703

LAMP

- rear flood & tail (See Figure 130)

1шт.

28

NSS

NOT SOLD SEPARAT

LAMP - flasher (See Figure 122)

2шт.

30

A64704

STRAP

- ground, firewall (20" long)

1шт.

31

NSS

NOT SOLD SEPARAT

CONNECTOR - 7 pt. auxiliary outlet (See Figure 124)

1шт.
