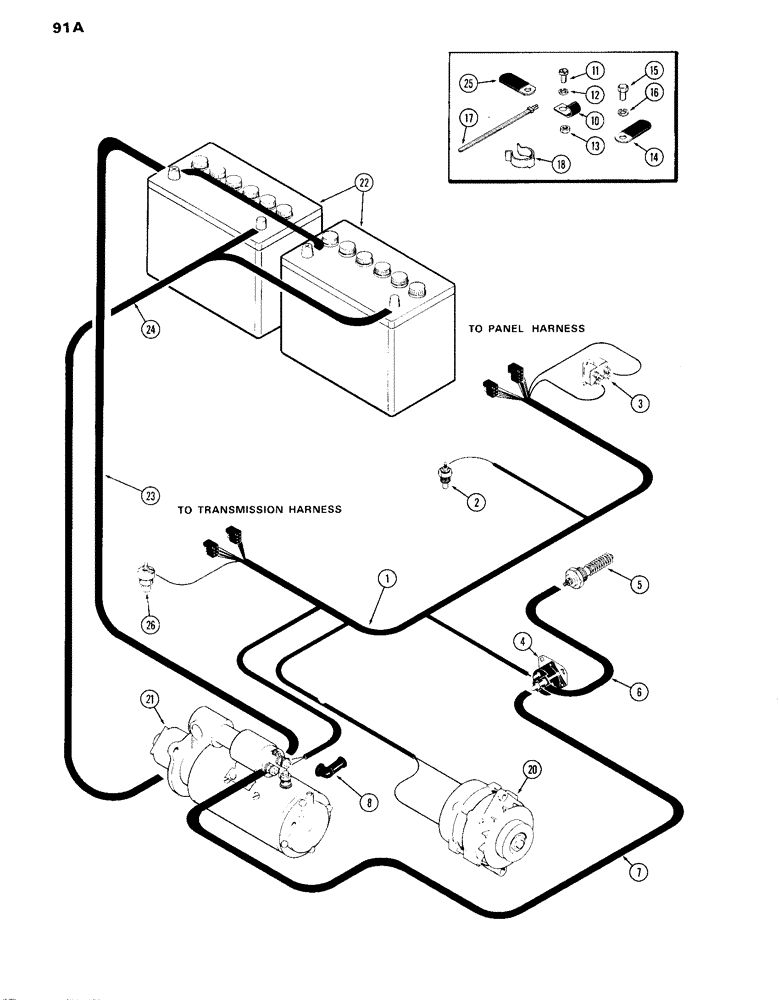

Запчасти Case IH 870 (091A) - ELECTRICAL EQUIP. AND WIRING, (336B) DIESEL ENGINE, ENGINE HARNESS, USED PRIOR TO ENGINE S/N 2529467 (04) - ELECTRICAL SYSTEMS

1

A63737

HARNESS

- wire, engine (Replaced A65133 & A59706)

1шт.

2

A61787

TRANSMITTER

UNIT - sending, engine temperature

1шт.

3

A59704

BREAKER

- circuit (See Figure 100)

1шт.

4

A39079

SOLENOID

- heater, manifold (See Figure 100)

1шт.

5

A37775

HEATER

- manifold

1шт.

6

A59712

WIRE - manifold, Serial Range: heater-solenoid

1шт.

7

A59713

ELECTRICAL WIRE

WIRE - heater, Serial Range: solenoid-starter

1шт.

8

A21753

CAP

- rubber, starter positive terminal & heater solenoid battery terminal

2шт.

10

A59718

CLAMP

CLIP - engine wire harness

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Clip Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

A37179

CLIP

- fender & alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire harness

1шт.

18

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

NSS

NOT SOLD SEPARAT

ALTERNATOR ASSY. - (See Figure 98)

1шт.

21

NSS

NOT SOLD SEPARAT

STARTING MOTOR - (See Figure 96)

1шт.

22

A38411

DRY BATTERY

- 12 volt

2шт.

23

A65817

CABLE

- battery, positive

1шт.

24

A59728

CABLE

- battery, negative (ground)

1шт.

25

A22883

CLIP

- battery cable

1шт.

26

A61463

SWITCH

UNIT - oil pressure sending

1шт.
