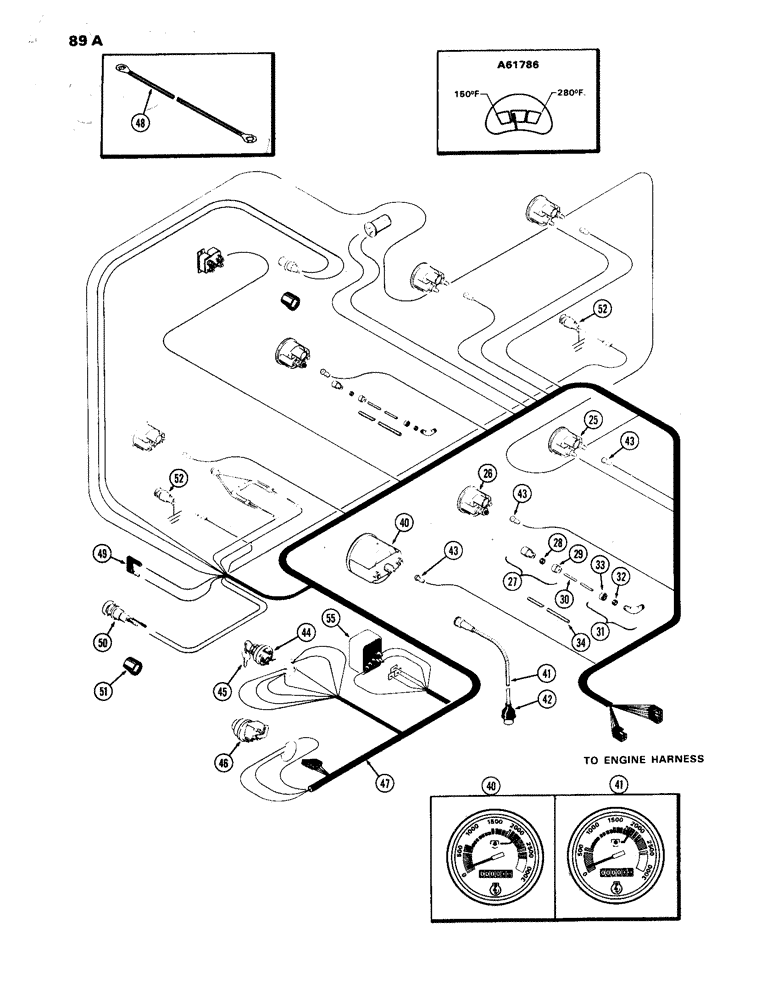

Запчасти Case IH 870 (089A) - INSTRUMENTS AND WIRING, (336B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

25

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature (Replaced A59683)

1шт.

26

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

27

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - (1/8" tube x 1/8" P.T.) (includes ref. 28 & 29)

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

29

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

30

A59685

TUBE

- transmission pressure gauge

1шт.

31

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR ASSY. - (1/8" tube x 1/8" P.T.) (includes ref. 32 & 33)

1шт.

32

222-100

TUBE NUT,1/8" Tube

SLEEVE - (for ) 1/8" Tube

1шт.

33

222-110

TUBE NUT,3/8"-24

NUT - (for 1/8" tube)

1шт.

34

A59686

LOOM

- transmission pressure gauge tube

1шт.

40

A62600

TACHOMETER

ASSY. - (1st used eng. ser. no. 2530834)

1шт.

41

A62648

ELECTRICAL GAUGE

TACHOMETER ASSY. - (used prior to eng. ser. no. 2530834)

1шт.

42

A59691

CABLE

- tachometer drive (w/boot)

1шт.

A24523

KIT

- repair, tachometer cable

1шт.

43

A14553

BULB

- gauges

3шт.

44

A59693

SWITCH

ASSY. - ignition & starting

1шт.

45

A60319

KEY

ASSY. - starting (Set of 2)

1шт.

46

A64499

SWITCH

- light (1st used trac. ser. no. 8693001) (See P. 131)

1шт.

46

A59694

SWITCH

- light (used prior to trac. ser. no. 8693001)

1шт.

47

A135869

HARNESS

- instrument panel wire (Used w/turn signals)

1шт.

47

A65987

HARNESS

- instrument panel wire (Used w/o turn signals) (1st used eng. ser. no. 2529467)

1шт.

47

A59705

HARNESS

- instrument panel wire (used prior to eng. ser. no. 2529467)

1шт.

48

A60882

STRAP

- ground, instrument panel

1шт.

49

A61504

DIODE

LEAD DIODE - 180 deg. connection

1шт.

50

A61505

LAMP

- oil filter warning

1шт.

51

A62677

GUARD

SHROUD - oil filter warning lamps

1шт.

52

A77188

LAMP

ASSY. - right & left turn indicator

2шт.

A44797

BULB

- lamp (green)

1шт.

A66892

ELECTRICAL WIRE

WIRE - signal lamp ground

2шт.

55

A77184

SWITCH

- comb. dual-rate flasher & turn signal (See Figure 100)

1шт.
