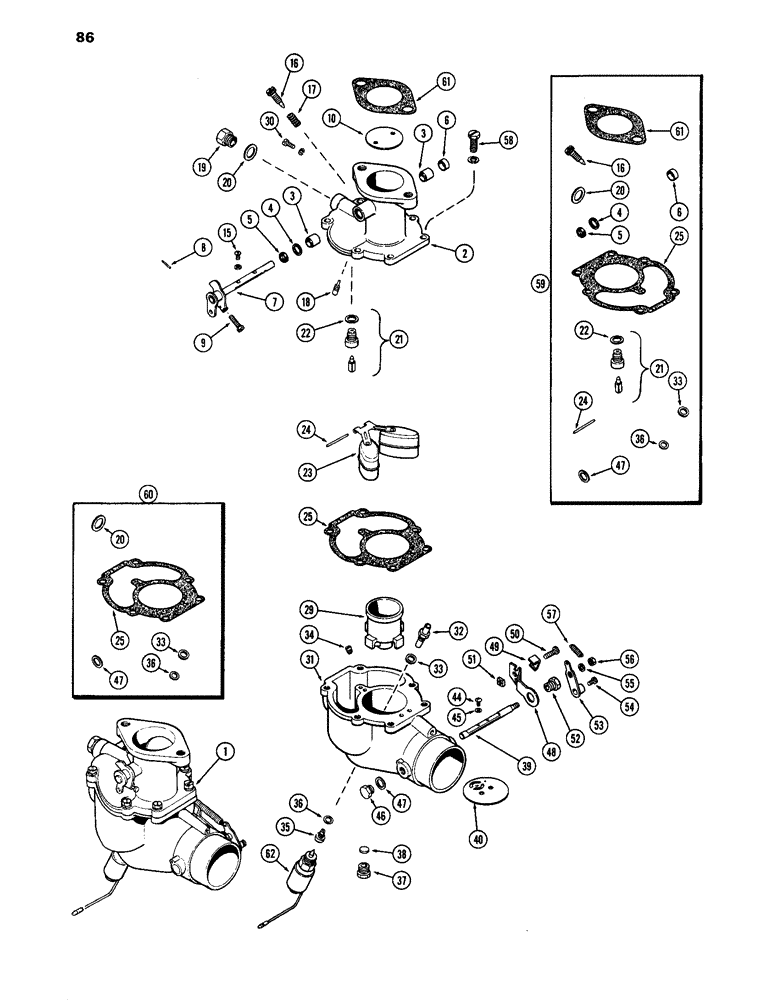

Запчасти Case IH 870 (086) - CARBURETOR, (301B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A62717

CARBURETOR ASSY. - (Zenith #13598) (includes ref. 2 - 62)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - throttle (Order ref. 1) (includes ref. 3 - 6)

1шт.

3

NS

NOT SERVICED

BEARING - needle, throttle shaft

2шт.

4

A40007

SEAL

- throttle shaft

1шт.

Included w/ REPAIR KIT, A24905

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL RETAINER - shaft bearing seal

1шт.

Included w/ REPAIR KIT, A24905

1шт.

6

B51438

PLUG

- throttle shaft hole

1шт.

Included w/ REPAIR KIT, A24905

1шт.

7

A42403

THROTTLE

SHAFT ASSY. - lever stop & throttle (includes ref. 8 & 9)

1шт.

8

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

9

B51581

SCREW - lever

1шт.

10

A41359

PLATE - throttle

1шт.

15

A24888

SCREW - throttle plate

2шт.

16

B51263

SCREW

NEEDLE - idle adjusting

1шт.

Included w/ REPAIR KIT, A24905

1шт.

17

B51407

SPRING

- idle adjusting

1шт.

18

A43455

JET - idle

1шт.

19

A40319

CONNECTION - fuel inlet

1шт.

20

B51614

WASHER

- filter

1шт.

Included w/ REPAIR KIT, A24905

1шт.

Included w/ GASKET KIT, A24904

1шт.

21

A25577

VALVE

& SEAT - fuel (matched) (includes ref. 22)

1шт.

Included w/ REPAIR KIT, A24905

1шт.

22

B51618

WASHER

GASKET - fuel valve

1шт.

Included w/ REPAIR KIT, A24905

1шт.

23

A24891

FLOAT

- carburetor

1шт.

24

B51429

AXLE

PIN - retaining, fuel bowl

1шт.

Included w/ REPAIR KIT, A24905

1шт.

25

A24889

GASKET

-, Serial Range: body-bowl

1шт.

Included w/ REPAIR KIT, A24905

1шт.

Included w/ GASKET KIT, A24904

1шт.

29

A42421

VENTURI - carburetor

1шт.

30

B51631

SCREW - Venturi

1шт.

31

A24892

BOWL - fuel

1шт.

32

A42423

JET - main discharge

1шт.

33

A24901

WASHER - discharge jet

1шт.

Included w/ REPAIR KIT, A24905

1шт.

Included w/ GASKET KIT, A24904

1шт.

34

A43451

VENT - well

1шт.

35

A42422

JET

- main

1шт.

36

B51624

WASHER

- main jet

1шт.

Included w/ REPAIR KIT, A24905

1шт.

Included w/ GASKET KIT, A24904

1шт.

37

B51541

PLUG

- fuel bowl drain

1шт.

38

B51442

FILTER

DISC - fuel bowl drain

1шт.

39

A24894

SHAFT - air shutter choke

1шт.

40

A24893

PLATE - choke

1шт.

44

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- choke plate (Replaces A24896)

2шт.

45

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

46

B51449

PLUG

- choke shaft hole

1шт.

47

B51618

WASHER

- plug

1шт.

Included w/ REPAIR KIT, A24905

1шт.

Included w/ GASKET KIT, A24904

1шт.

48

B51398

BRACKET ASSY. - choke (includes ref. 49, 50 & 51)

1шт.

49

B51402

CLAMP - choke bracket

1шт.

50

B51581

SCREW - clamp

1шт.

51

129-76

SQUARE NUT,#8 - 36

- clamp screw

1шт.

52

B51455

SCREW - retaining, choke bracket

1шт.

53

B51379

LEVER ASSY. - choke (includes ref. 54)

1шт.

54

A25179

SCREW - choke wire retaining

1шт.

55

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

56

129-36

NUT,#8-36

- (#8 N.F. hex) (Zinc plated)

1шт.

57

B51414

SPRING - choke lever return

1шт.

58

A24890

SCREW -, Serial Range: bowl-body

6шт.

59

A24905

KIT

- repair, Includes: Ref. 4 - 6, 16, 20 - 22, 24, 25, 33, 36, 47 and 61

1шт.

60

A24904

KIT

GASKET KIT - carburetor, Includes: Ref. 20, 25, 33, 36 and 47

1шт.

61

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Included w/ REPAIR KIT, A24905

1шт.

62

A33219

SOLENOID

ASSY. - carburetor cut-off

1шт.
