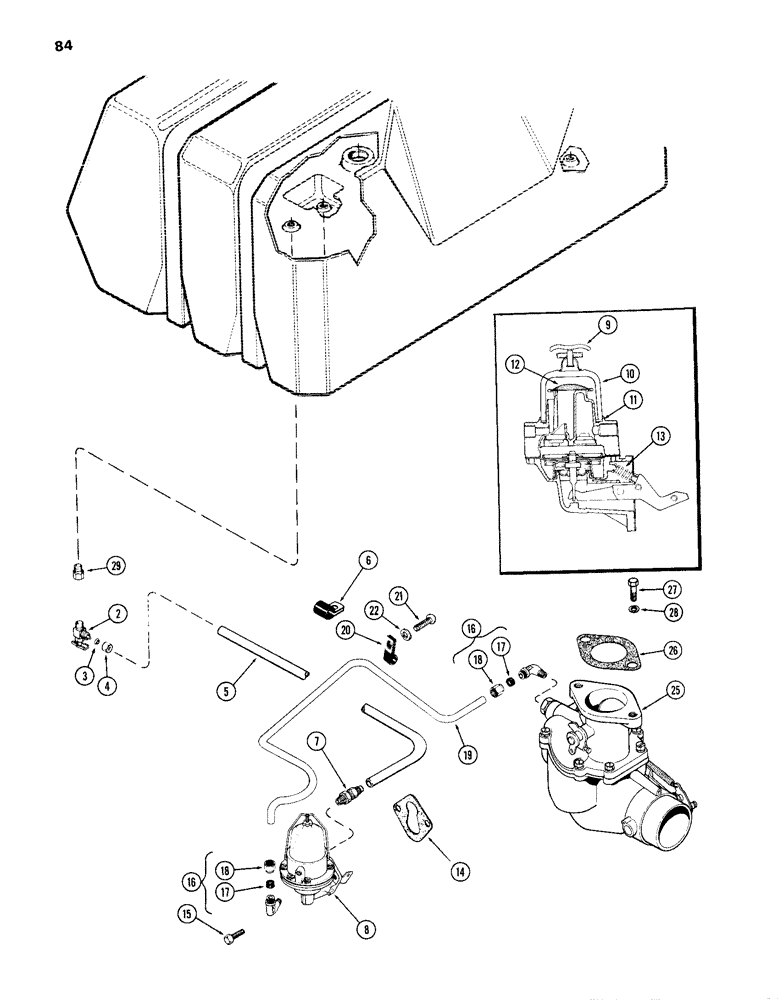

Запчасти Case IH 870 (084) - FUEL PUMP AND LINES, (301B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

2

A62354

VALVE

- fuel tank (includes ref. 3 & 4)

1шт.

3

222-5186

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

4

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

1шт.

5

A62027

TUBE

- tank outlet to engine (Nylon)

1шт.

6

A57061

CLIP

- tube

1шт.

7

222-5112

FITTING,9/16"-24 x 1/4" NPTF

CONNECTOR - (for 1/8" tube) (includes ref. 8 - 14)

1шт.

A42434

PUMP

ASSY. - fuel

1шт.

8

NSS

NOT SOLD SEPARAT

PUMP - fuel, gas

1шт.

9

A42435

BAIL - fuel pump

1шт.

10

A42436

BOWL

- fuel pump (Glass)

1шт.

10

A42437

BOWL

- fuel pump (Metal)

1шт.

11

A42438

GASKET

-, Serial Range: bowl-body

1шт.

12

G10279

SCREEN - sedimentation

1шт.

13

A42439

SPRING - rocker arm

1шт.

14

A65561

GASKET

- fuel pump to block (Replaces G46902)

1шт.

15

113-123

BOLT,Locking, 5/16" - 18 x 1", Gr 5

- (5/16 x 1" N.C. hex, Nylock)

2шт.

16

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- (for 5/16" tube) (includes ref. 17 & 18)

2шт.

17

222-103

SLEEVE,5/16" Tube

1шт.

18

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

19

A59099

TUBE - fuel, Serial Range: pump-carburetor

1шт.

20

A7922

CLIP

- tube

1шт.

21

75-68

SCREW

- machine (3/8 x 1/2" rd. hd.)

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

25

A62717

CARBURETOR - gas (See Figure 86)

1шт.

26

A27776

GASKET

- gas (See Figure 86)

1шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet (1/4 x 1/4")

1шт.
