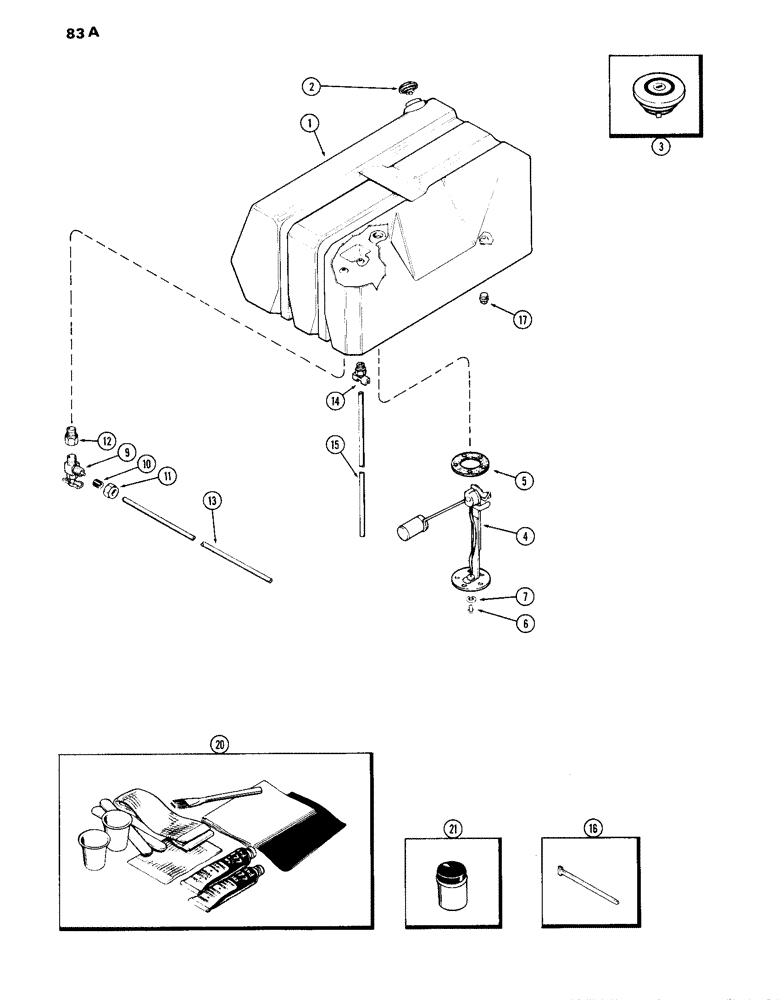

Запчасти Case IH 870 (083A) - FUEL TANK AND LINES, (301B) SPARK IGNITION ENGINE, NYLON MATERIAL (03) - FUEL SYSTEM

1

A59490

FUEL TANK

TANK - fuel (Order 1-A66820 tank, 1-A65893 pipe & 1-A23656 valve)

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- sending, fuel gauge

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine (#10 x 7/16" N.F. rd. hd.)

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

9

217-278

FITTING

VALVE ASSY. - fuel tank (Replaced A62354) (includes ref. 10 & 11)

1шт.

10

222-5186

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

11

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet (1/4 x 1/4")

1шт.

13

A62027

TUBE

- tank, Serial Range: outlet-engine

1шт.

14

217-107

VALVE

- drain cock

1шт.

15

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

2шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

- pipe (3/8" square head)

1шт.

20

A44265

KIT

- repair, nylon tank (Replaces A42782) (Also order A44266)

1шт.

Nylon tank is identified by 1/8" thread at drain and 3/8" thread at return port

1шт.

21

A44266

KIT

ADHESIVE - repair kit

1шт.
